Product Description
High-current probes are characterised by a specific probe design with low resistance. ( big current probe on sales china ) The main focus here is to avoid a too strong temperature increase of the probes or the individual probe components and to optimise the contact to the test item.

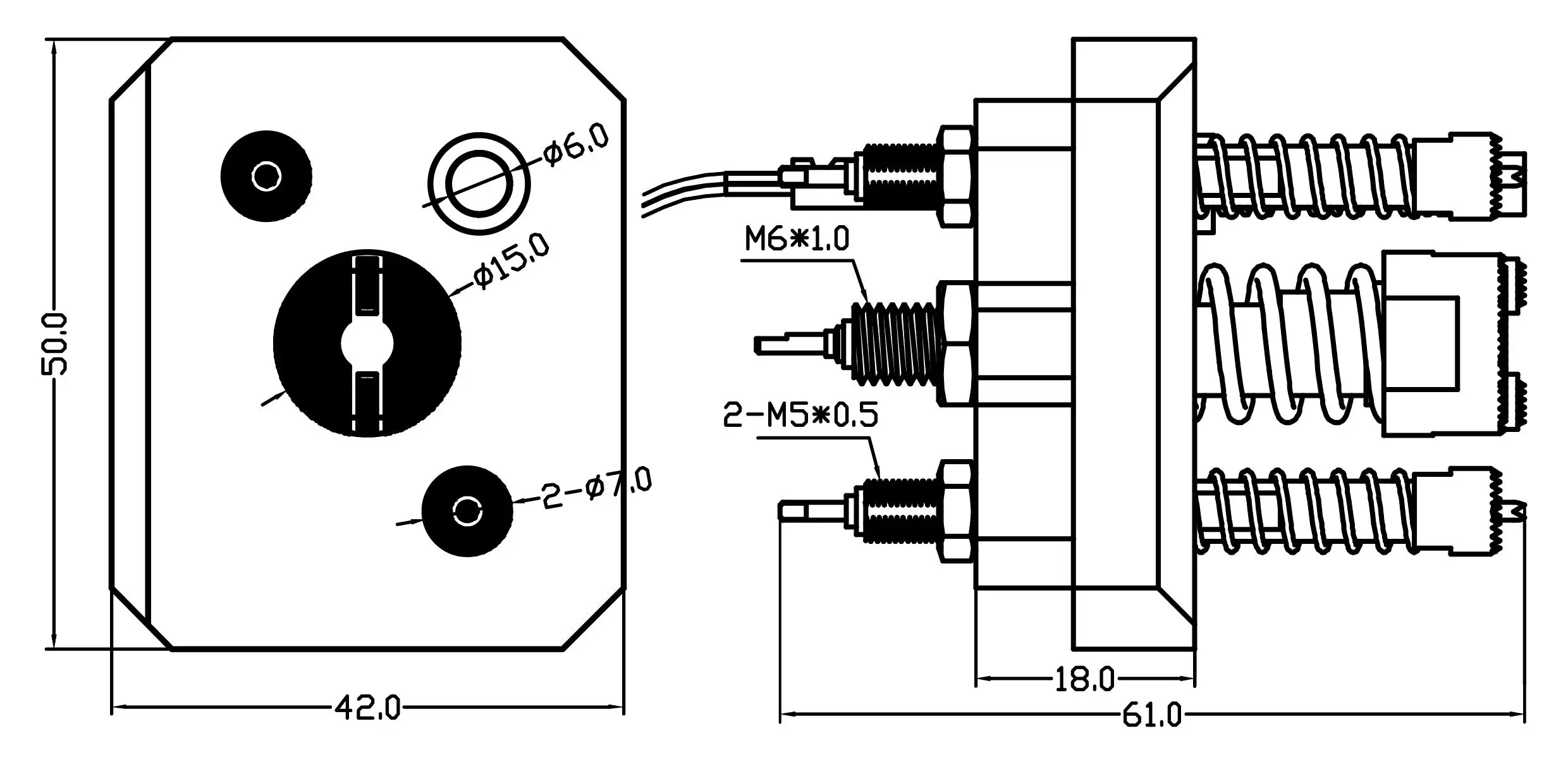

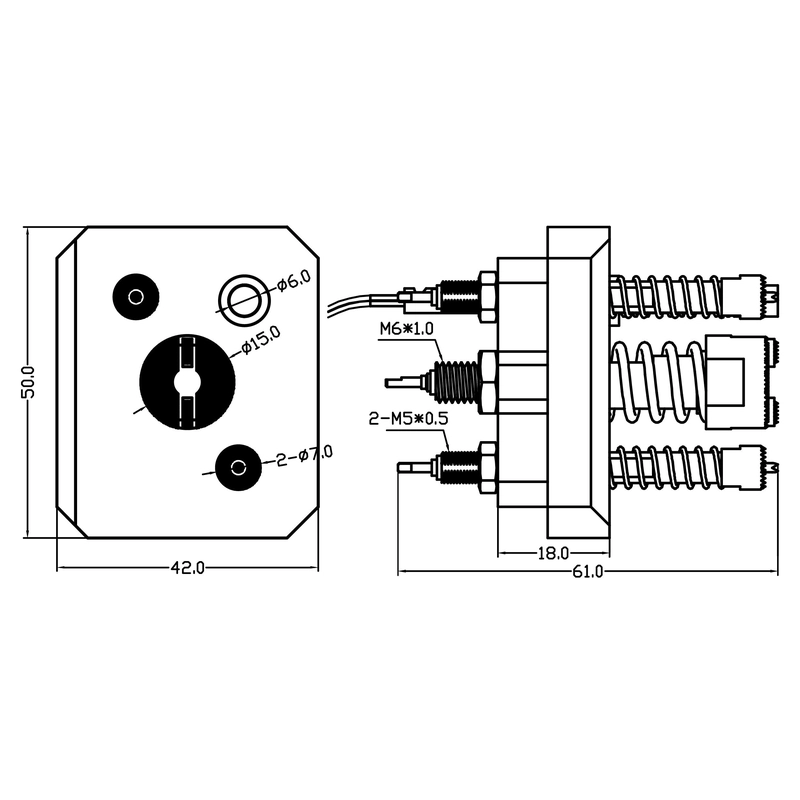

Product Drawing
Product Parameters

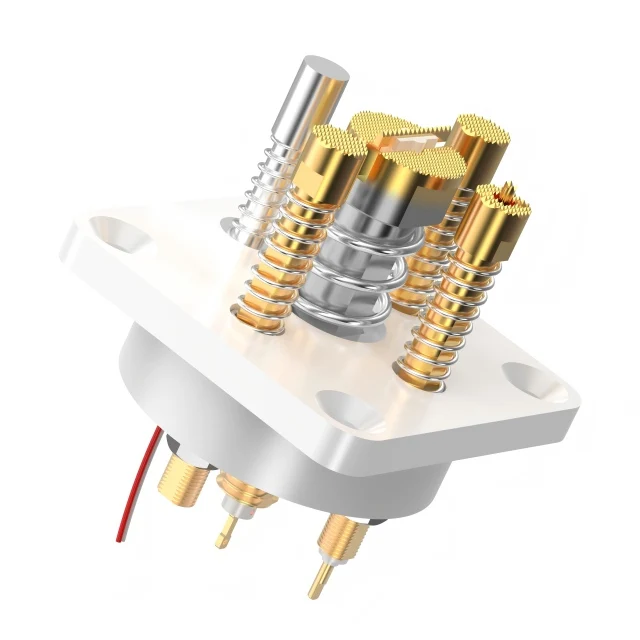

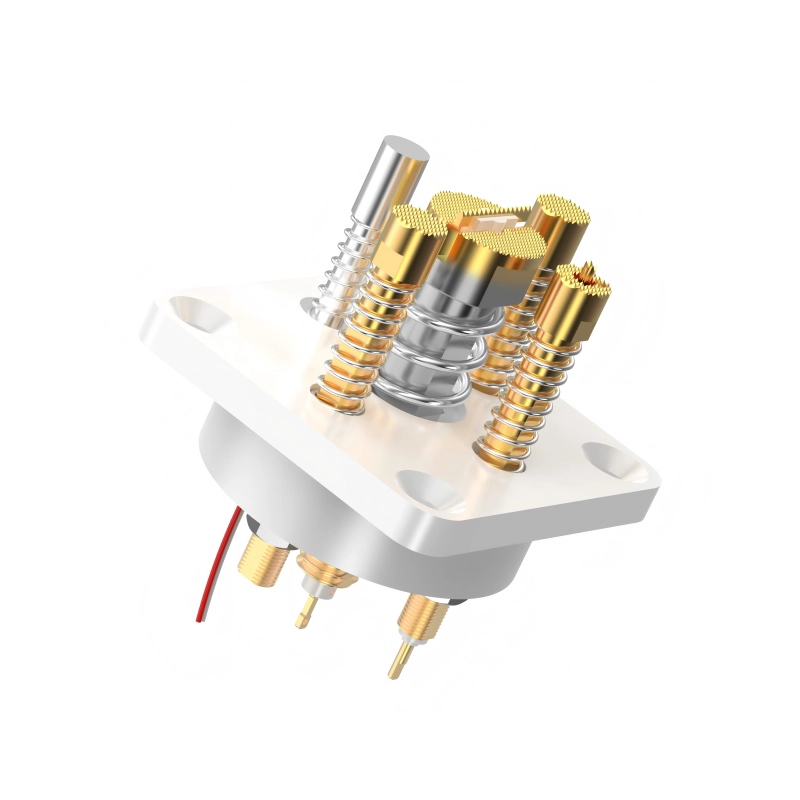

| Poduct Name | China Manufacturer 60A High Current Probe Pins for Lithium Battery Testing |
| Item No. | SF15-7-6 |
| 60A Probe pin sets | 18.0 voltage pin, 7.0 coaxial pin, 7.0 current pin, 4.0 temperature needle |
| 15.0 Voltage pin |
Material: Copper, Gold plated or Ni plated Full travel ≥ 8.0mm Spring force: 5kg±20% when working travel 5.0mm Current rating: 60A |
|
7.0 Coaxial pin 7.0 Current pin |
Material: Copper, Gold plated or Ni plated Full travel ≥ 8.0mm Spring force: 2kg±20% when working travel 5.0mm Current rating: 20A |
| 6.0 Temperature needle |
Material: Copper, Ni plated Full travel ≥ 8.0mm Spring force: 200g±20% (when working travel to 5.0mm) |
Applications
The applications for high-current probes are diverse and range from fixture construction and wire harness testing to special applications, such as charging and discharging processes in battery production.
Package
Logistics
Sample order ship by DHL, UPS, FedEx, TNT, EMS etc.
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer’s forwarder or ours.
Factory Show
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .

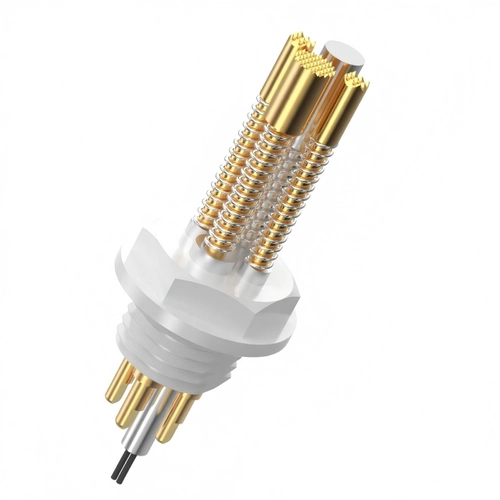

Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:6A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥7.0mm
Recommended Working Travel:2200g±20%(6.0mm)

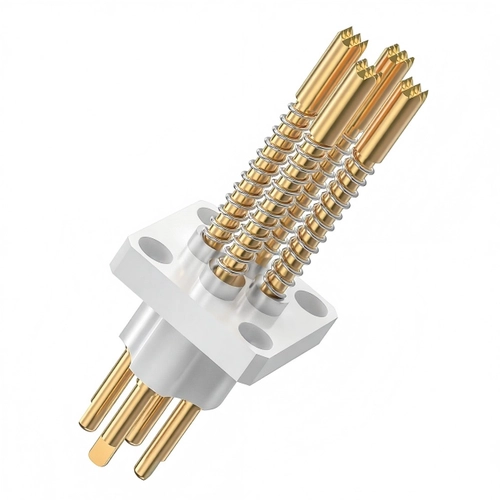

Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:6A
Contact Resistance(Initial):≤15mΩ
Maximum Travel:≥7.0mm
Recommended Working Travel:2000g±20%(4.0mm)

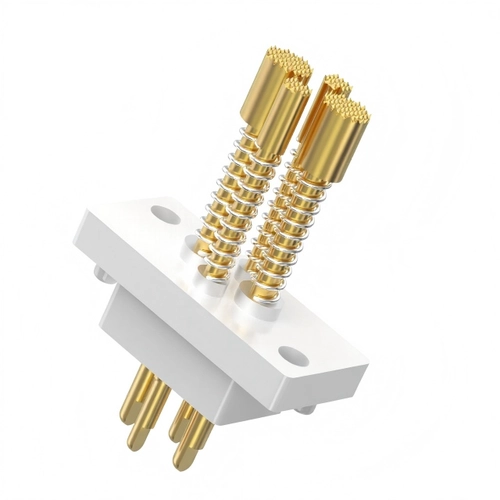

Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:15A
Contact Resistance(Initial):≤10mΩ
Maximum Travel:≥7.0mm
Recommended Working Travel:3200±20%(6.0mm)

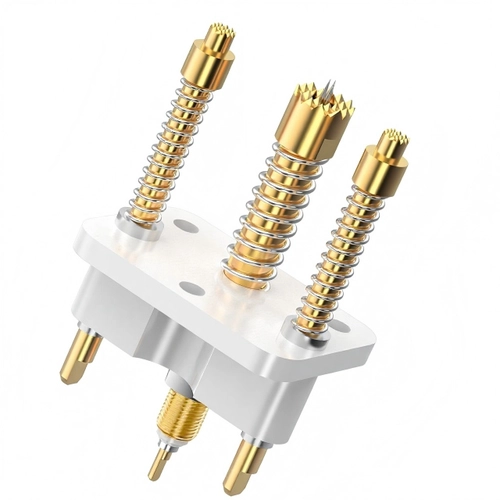

Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:20A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥9.0mm
Recommended Working Travel:2000g±15%(5.0mm)

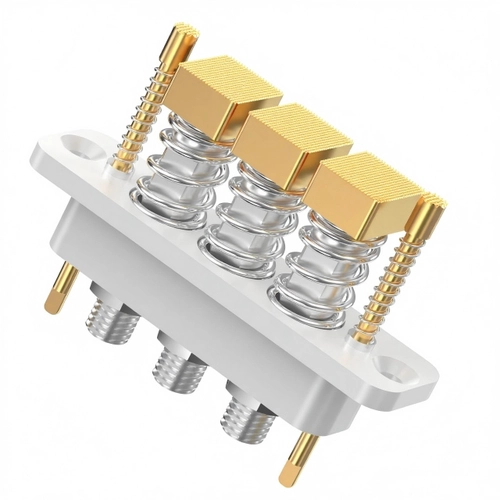

Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:600A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:8000g±20%(5.0mm)
