Technical Specifications
|
Cards |
SFENG |
|
Model |
SF-P75 |
|
Needle bar |
Brass or beryllium copper, gold or nickel-plated |
|
Needle |
Brass, gold or nickel plated |
|
Spring |
SK4, music line |
|
Elasticity |
120 g |
|
All tourism |
3.35 mm |
|
Electric current |
3A |
|
Resistance |
Is 50mΩ. |
|
Minimum spacing |
1.9 mm |
|
Mounting Hole Size |
1.35 mm |
|
MOQ |
100 |
|
delivery time |
7 working days after receipt of payment |

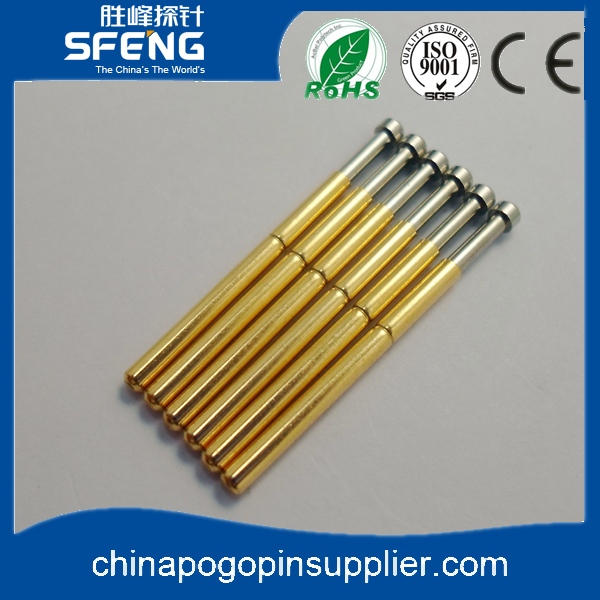

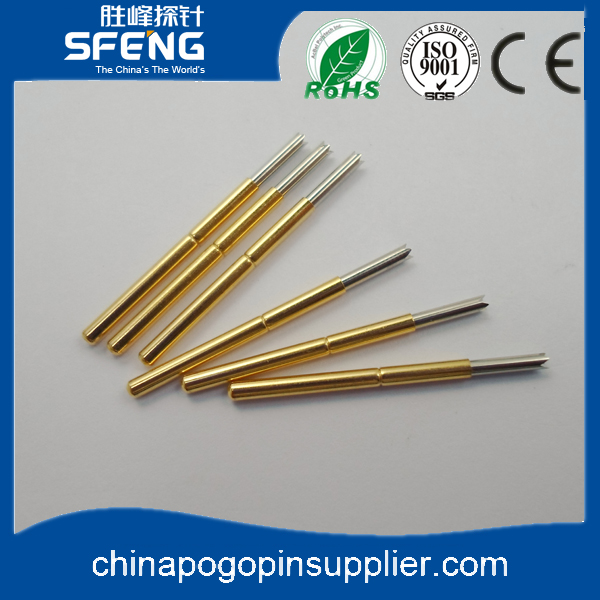

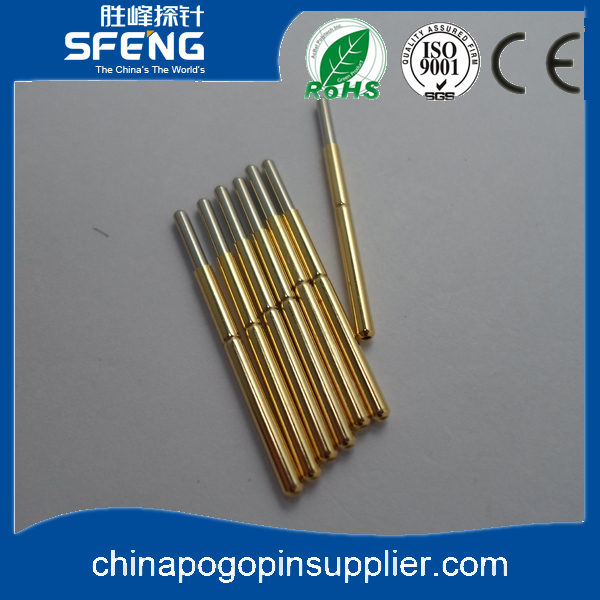

Product Image
our service
1. to respond to your inquiry within 24 working hours
2. You can customize the product, welcome OEM
To customers around the country 3. fastest delivery probe
4, the lowest price, the best quality to customers
main products
--- For the PCB, ICT, FCT testing
--- Ejector pin charging printed circuit boards, positioning the semiconductor
--- For BGA and amplifier; amp; needle semiconductor test;
--- No spring straight needle, insulated needle, LM needle;
--- High current needle, switch needle, needle fusion ...
--- Terminal; socket / socket;
- O and other related electronic parts, 30 # OKwire, rack deduction, POM.

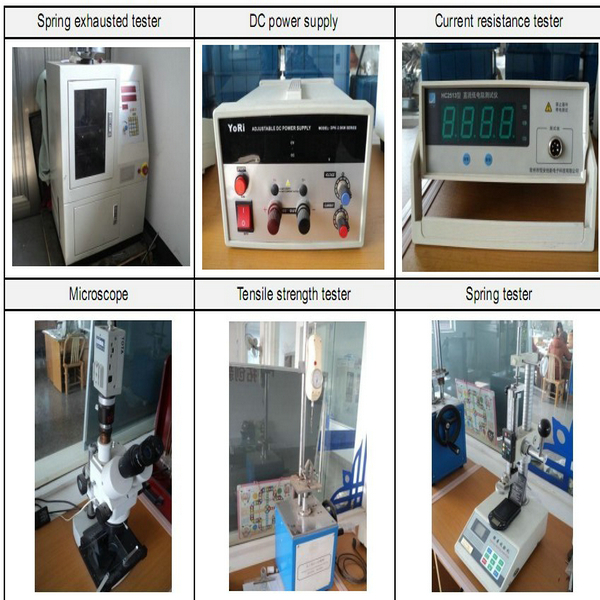

Quality control
Packing pictures
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Model Number:SF-P030-Spring Test Pogo Pin
Recommended minimum center:0.90mm
Mounting hole size: Acrylic:0.65mm
Full travel:2.0
Spring force:60g
Materials and finishes:Plunger:Becu, Ni plated; SK4 Ni plated
Barrel:Brass
Spring:Music wire
Current ration:1A
Contact resistance:50mΩ
Recommended minimum center:0.80mm
Mounting hole size: 0.55mm
Full travel:2.0
Spring force:40g
Materials and finishes:Plunger:Becu, Ni plated; SK4 Ni plated
Barrel:Brass
Spring:Music wire
Current ration:0.5A
Contact resistance:50mΩ
MOQ:100PCS
Brand:SFENG
Item number:SF-P050-B
Origin place:Zhejiang China
Size: dia0.35*length12.5mm
Plunger:SK4
Barrel:Phosphor Bronze
Spring:Music wire
Finish:Ni or Gold plated
Packing:Plastic bag and loaded into carton box
MOQ:100PCS
Customization:OEM,ODM
Model number:SF-P060-Test Probe Pin
Recommended minimum center:0.65mm
Mounting hole size: 0.45mm
Full travel:1.5
Spring force:40g
Materials and finishes:Plunger:Becu, Ni plated; Barrel:Brass; Spring:Music wire
Current ration:0.5A
Contact resistance:50mΩ
SF-P070 Series Fine Pitch Spring Test Probe Pin
Recommended minimum center:0.60mm
Mounting hole size: 0.40mm
Full travel:1.5
Spring force:20g
Materials and finishes:Plunger:SK4 Ni plated
Barrel:Brass
Spring:Music wire, gold plated
Current ration:0.3A
Contact resistance:50mΩ
Model: SF-P080
Material: Brass
Current Rating: 0.3A
Contact Resistance (Initial)：50mΩ
Maximum Travel:1.5
Length:11.5mm
Payment:Paypal or 100% TT before shipment
Recommended minimum center:2.54mm
Mounting hole size: Acrylic:1.70mm; Bakelite, fiberglass board:1.75mm
Full travel:4.0
Spring force:200g
Materials and finishes:Plunger:Becu, Ni plated; SK4 Ni plated
Barrel:Brass
Spring:Stainless steel
Current ration:3A
Contact resistance:50mΩ
Recommended minimum center:1.90mm
Mounting hole size: Acrylic:1.35mm; Bakelite, fiberglass board:1.40mm
Full travel:3.4
Spring force:120g
Materials and finishes:Plunger: Becu, Ni plated; SK4 Ni plated; Barrel:Brass；Spring:Stainless steel
Current ration:3A
Contact resistance:50mΩ
Recommended minimum center:1.27mm
Mounting hole size:V:0.90mm/W:0.95mm
Full travel:4.20
Spring force:120g
Materials and finishes:Plunger:Be Cu,Ni plated; SK4 Au plated Barrel:Brass Spring:Stainless steel
Current ration:3A
Contact resistance:50mΩ
Recommended minimum center:1.27mm
Mounting hole size:V:0.90mm/W:0.95mm
Full travel:2.5
Spring force:100g
Materials and finishes:Plunger:SK4, Ni or Au plated; Barrel:Brass; Spring:Stainless steel
Current ration:1.5A
Contact resistance:50mΩ
Model:SF-PL50
Size:L.24.7mm
Material: Brass
Finish: Ni-plated or Gold-plated
Packing: Plastic box and loaded into carton
Model:SF-P75
Size:L.16.4mm
Material: Brass
Finish: Ni-plated or Gold-plated
Packing: Plastic box and loaded into carton
Model:SF-P50
Size:L.16.4mm
Material: Brass
Finish: Ni-plated or Gold-plated
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF-P160
Size:L.24.5mm
Material: Brass
Finish: Ni-plated or Gold-plated
Packing: Plastic box and loaded into carton
Model:SF-P75
Size:L.16.4mm
Material: Brass
Finish: Ni-plated or Gold-plated
Packing: Plastic box and loaded into carton
Model:SF-P50
Size:L.16.4mm
Material: Brass
Finish: Ni-plated or Gold-plated
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF-PL50
Size:L.24.7mm
Material: Brass
Finish: Ni-plated or Gold-plated
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF-P50
Size:L.16.4mm
Material: Brass
Finish: Ni-plated or Gold-plated
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF-PL50
Size:L.24.7mm
Material: Brass
Finish: Ni-plated or Gold-plated
Packing: Plastic box and loaded into carton
Brand:SFENG
Model:SF-PL50
Size:L.24.7mm
Material: Brass
Finish: Ni-plated or Gold-plated
Packing: Plastic box and loaded into carton
