Technical Specifications

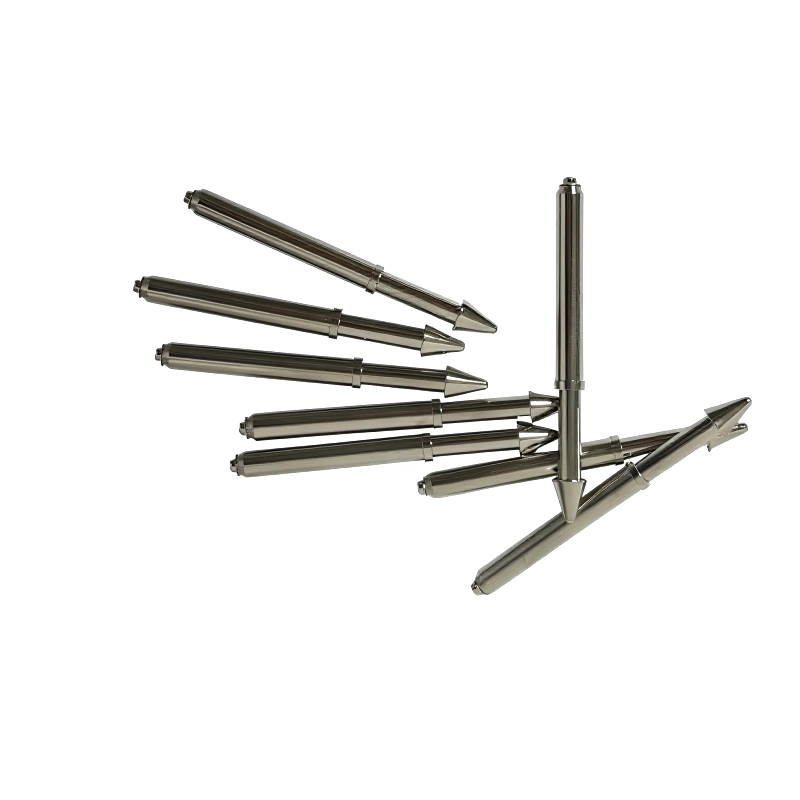

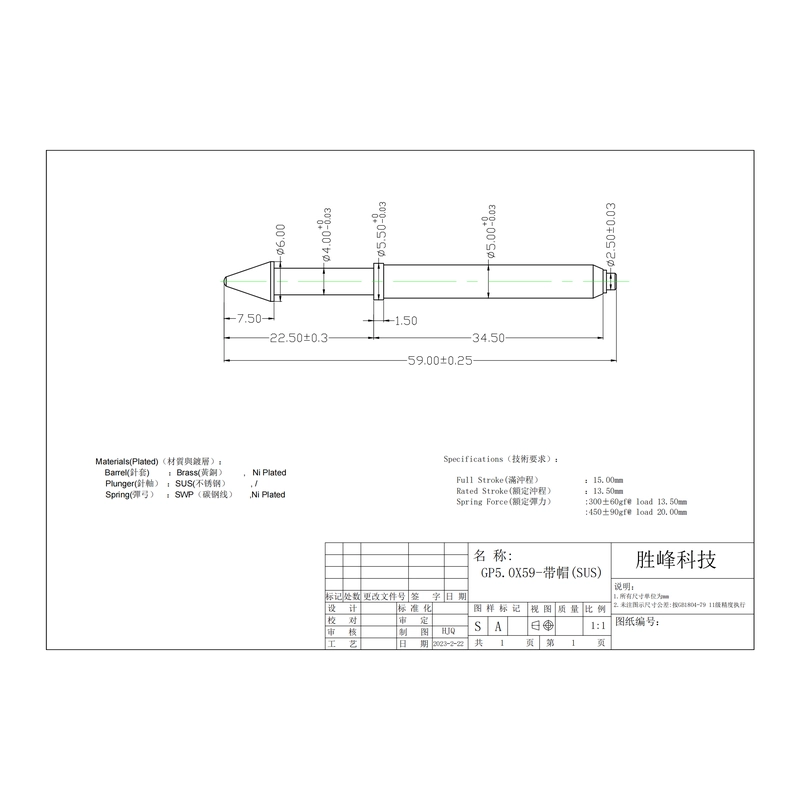

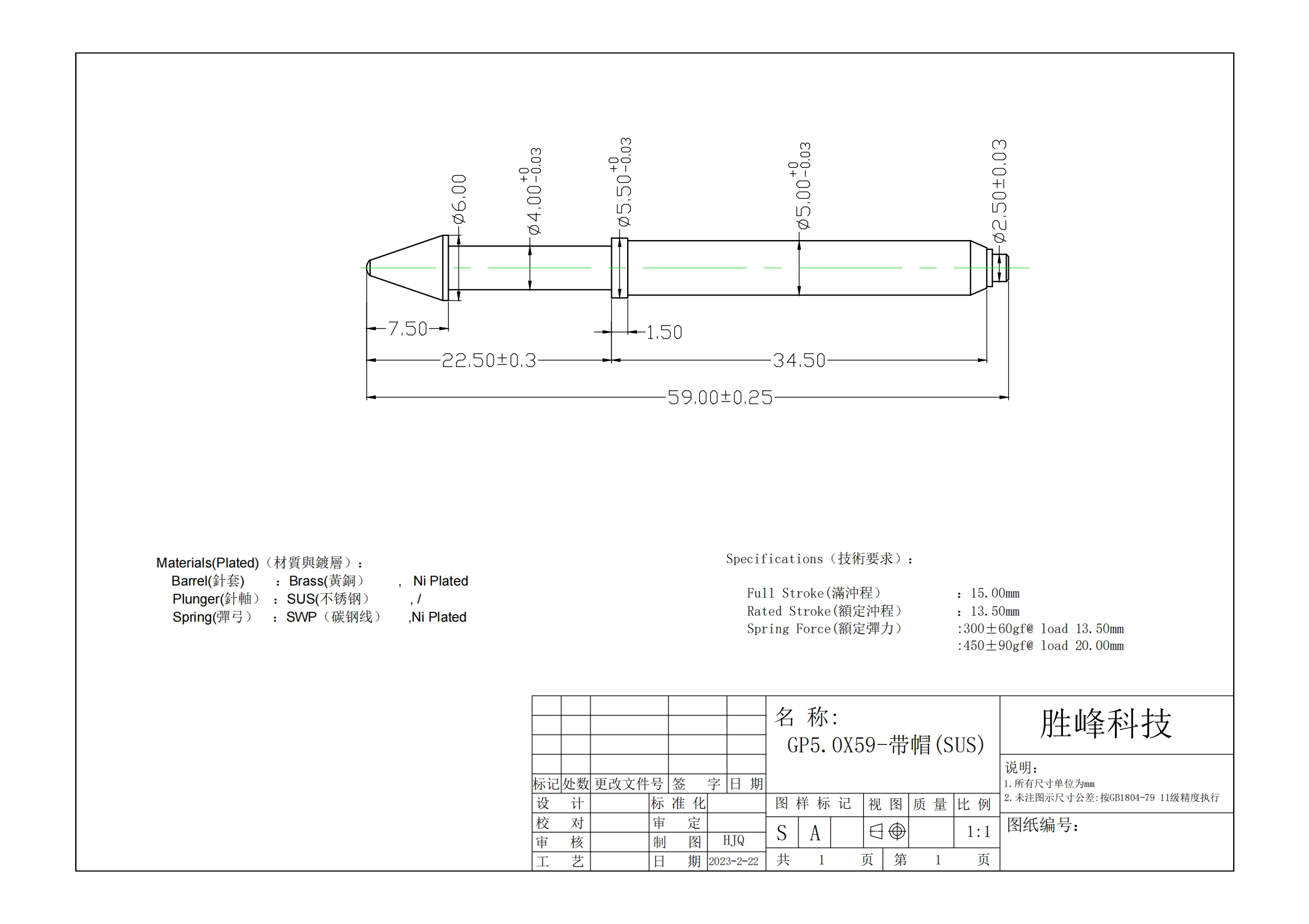

| Product Name | In Stock Nickel Plating Circuit Board Guide Pin |
| Model Number | SF-GP5.0*59 |
|
Material |
Barrel/Plunger:Brass Sping:304 Stainless Steel |
| Surface Plating | Ni Plated |
| Full Stroke | 15.00mm |
| Rated Stroke | 13.50mm |
| Spring Force |
300±60gf@ load 13.50mm 450±90gf@ load 20.00mm |
| MOQ | 100pcs |
| Lead Time | 7-10days |
Main Products
---Spring loaded pin(single) for PCB,ICT,FCT testing,etc;
---Pogo pin(connector) to establish a(usuallytemporary)connection between two printed circuit boards for charing, locating, Battery, Semiconductor & interconnect Applications;
---Double ended probe or BGA&Semiconductor testing;
---Universal pin without spring,coating pin Guide Pin,LM pin withQZ&VZ series;
---High current probe,Switch probe,Capacitance needle...
---Terminal&receptacle/socket;
---Other related electronic compents,30#OK wire,Jig locks,POM,Ironhinge,etc.
Company Profile
Production Flow
Quality Control
Custom Visits
Global Sales
FAQ
1.What is terms of SFENG payment?
For the orders, we prefer 100% payment before the delivery. You can choose Wire transfer, Pay Pal. USD dollar,Japanese Yuan and RMB are accepted.
Yes, SFENG are pleased to provide free samples for testing before orders. It’s the biggest things that you trust us and our product quality.
SFENG can send the goods out within 3 days after receiving the order. For customized products, we will adjust the lead time accordingly.
SFENG have skilled QC team and professional testing equipment. From the raw material to the finished products, we will make the testing. Only appearance, dimension, tips, spring force, plating and life span are checked ok by professional equipment. the goods can be sent to customers.
Yes, one of our main features is customization. Just providing the drawing, we will make the product specially for you.
SFENG can mainly provide 5 kinds of test probes, including in-circuit test probe, semiconductor test probes, battery contact pins,guide pins and related accessories.
Packaging & Shipping
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Plating: Nickel plated
Rated travel: 3.0mm
Spring force: 20g@2.0mm
Lifetime: 30,000 times
Application: SMT reflow oven machine
Plating: Nickel plated
Rated travel: 3.5mm
Spring force: 50g@2.0mm
Lifetime: 30,000 times
Application: SMT reflow oven machine
Model: SF-5.0x37.5-D
Material: Copper or Iron
Plating: Ni Plated
Full travel: 10.0mm
Spring force: 200±40gf@ load 10.0mm
Material: Copper or Iron
Plating: Ni Plated
Full travel: 15.0mm
Rated travel: 13.5mm
Spring force: 300±60gf@ load 13.5mm；50±90gf@ load 20.0mm
Plating: Nickel plated
Rated travel: 2.5mm
Spring force: 70g@2.5mm
Lifetime: 30,000 times
Application: SMT reflow oven machine
Type: Guide Pin
Model: SF-GP6.0*64 with hat
Material: Brass and SUS
Plating: Ni Plated
Rated travel: 1.65mm
Spring force: 1590±15%gf@ load 1.65mm
MOQ:100pcs
Leadtime:7-10days
Type: Guide Pin
Model: SF-GP6.0x59
Material: Brass and SUS
Plating: Ni Plated
Rated travel: 23.00mm
Spring force: 450±90gf@ load 23.00mm
MOQ:100pcs
Leadtime:7-10days
Brand：SFENG
Model：GP6.0*50-M3
Size：L.50mm
Material：Brass
Finish：Ni-plated
Packing：Plastic box and loaded into carton
MOQ:100pcs
Leadtime:7-10days
Brand：SFENG
Model：GP6.0*39
Size：L.37.50mm
Material：Brass
Finish：Ni-plated
Packing：Plastic box and loaded into carton
MOQ：100pcs
Leadtime：7-10days
Brand:SFENG
Item number:SF-GP6.0*37.5
Size: dia6.0*37.5mm
Material:Plunger/Barrel:Brass Spring:SUS
Finish:Ni plated
Packing:Plastic bag and loaded into carton box
MOQ:100pcs
Leadttime:7-10days
Brand：SFENG
Model：SF-GP5.0X64
Size：L.64mm
Material：Brass
Finish：Ni-plated
Packing：Plastic box and loaded into carton
MOQ:100pcs
Leadtime:7-10days
Brand: SFENG
Item number:SF-GP5.0*58
Size: Dia5.0*L58mm
Material:Plunger/Barrel:Brass
Spring:SUS304
Finish:Ni plated
Customize support:OEM, ODM
Packing:Plastic bag and loaded into carton box
MOQ:100pcs
Leadtime:7-10days
Brand: SFENG
Model: GP5.0*48
Length: 48mm
Material: Brass
Finish: Ni-plated
Packing: Plastic box and loaded into carton
MOQ:100pcs
Leadtime:7-10days
Type: Guide Pin
Material: Brass
Plating: Nickel plated
Rated travel: 10.0mm
Spring force: 350±70gf@ 1oad 10.00mm
Application: SMT reflow oven machine
MOQ:100pcs
Leadtime:7-10days
Brand:SFENG
Item number:SF-GP5.0*39
Size: dia5.0*L39mm
Material:Brass and SUS304
Packing:Plastic bag and loaded into carton box
MOQ:100pcs
Leadtime:7-10days
Brand: SFENG
Model: GP5.0*37.5
Length: 37.5mm
Material: Brass
Finish: Ni-plated
Packing: Plastic box and loaded into carton
MOQ:100pcs
Leadtime:7-10days
Brand:SFENG
Item number:SF-GP5.0*35
Size: dia5.0*L35mm
Material:Plunger/Barrel:Brass
Spring:SUS304
Finish:Ni plated
Packing:Plastic bag and loaded into carton box
MOQ:100pcs
Leadtime:7-10days
Brand:SFENG
Item number:SF-GP4.0*36
Size: dia4.0*L36mm
Material:Plunger/Barrel:Brass Spring:SUS
Finish:Ni plated
Customize support:OEM, ODM
Packing:Plastic bag and loaded into carton box
Brand:SFENG
Item number:SF-GP3.2*37.5
Size: dia3.2*37.5mm
Material:Plunger/Barrel:Brass Spring:SUS
Finish:Ni plated
Packing:Plastic bag and loaded into carton box
MOQ:100pcs
Leadttime:7-10days
Brand:SFENG
Item:Spring Loaded Guide Pin
Material:Barrel/Plunger: Brass, Ni Plated
Spring:SUS
Size:Dia3.2*34mm
MOQ:100pcs
Leadtime:7-10days
Customized Length is Accepted
