Normally open contact probe switch contact pin SF6927 with low priceNormally open contact probe switch contact pin SF6927 with low priceNormally open contact probe switch contact pin SF6927 with low price

Normally open contact probe switch contact pin SF6927 with low price

  • Brand:SFENG
  • Item number:SF6927
  • Size: dia2.2*L38.0mm
  • Plunger:SUS303
  • Barrel:Brass
  • Tail pin:Brass
  • Solder connection:Brass
  • Finish:Ni or gold plated
  • Packing:Plastic bag and loaded into carton box

Production specifications

 Item number  SF6927
 Size
 dia2.2*38.0mm
 Material
 Plunger:SUS304, Ni plated
 Barrel Coating:Brass, Ni plated
 Tail Pin:Brass, Gold plated
 Solder connection:Brass, Gold plated
 Switch path  0.5±0.2mm
 Full travel  3.5mm
 Spring force  100±20%g
 MOQ  100PCS
 Payment  T/T
 Delivery time  5-15days after receiving the payment

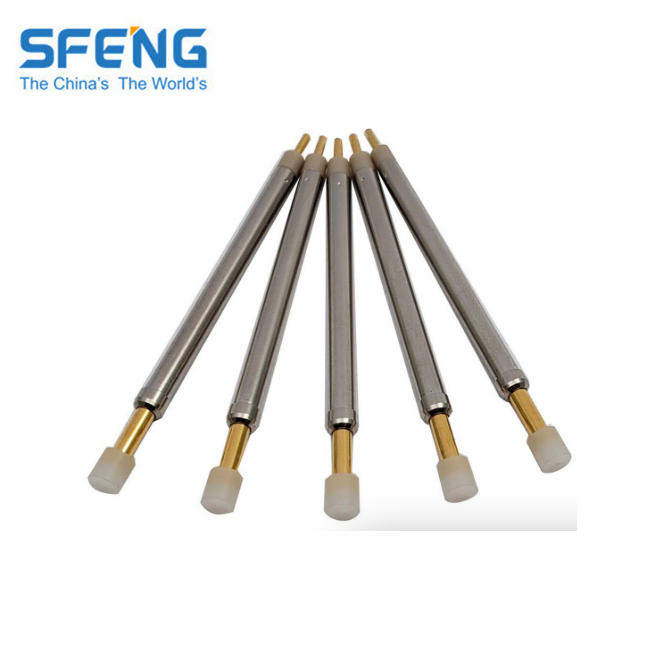

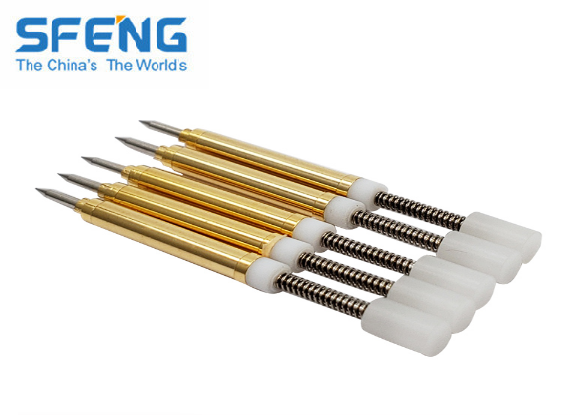

Product Pictures







Production Flow



Testing Equippment



Packing



Main products

1.Spring loaded pin(single)for PCB,ICT,FCTtesting etc;
2.Pogo pin(connector)to establish connection between two printed circuit boards for charging,locating,battery,semiconductor&interconnector applications;
3.Double ended probes for BGA and semiconductor testing;
4.Universal pin without spring,coating pin,LM pin with QZ and VZ series;
5.High current probe,switch probe,capacitance needdle;
6.Terminal&receptacle/socket;
7.Other related electronic components,Jig locks,POM and etc.
Whatever you want,please contact us without hesitation ,and we will try our best to meet your requirement within our capability.

Our service

1.We can reply your inquiry within 24 working hours;
2.Customized design is availble and OEM are welcomed;
3.We can deliver the probe pins to our clients all over the world with speed and precision.
4.We can provide the lowest price with high quality products to our clients.
