SFENG China Supplier Switching probes Spring Contact Probe SF-1.67x44-G

SFENG China Supplier Switching probes Spring Contact Probe SF-1.67x44-G

  • Brand:SFENG
  • Item number:SF-1.67*44
  • Size: dia1.67*L44mm
  • Plunger:Becu, Gold plated
  • Barrel:Brass, Gold plated
  • Insulation sleeve:PEEK
  • Spring:SUS304
  • Packing:Plastic bag and loaded into carton box
  • Product Details

Production specifications

Switching probes are suitable for many various applications: not only can they be used for component detection tests and switches for closed/open checks, but also as a signal trigger for process control.
Furthermore, in combination with other test probes (e.g., push-back probes), position determination of contact terminals in plug housings is possible. In most cases, INGUN switching probes are so-called “closers”, and are normally opened (NO).

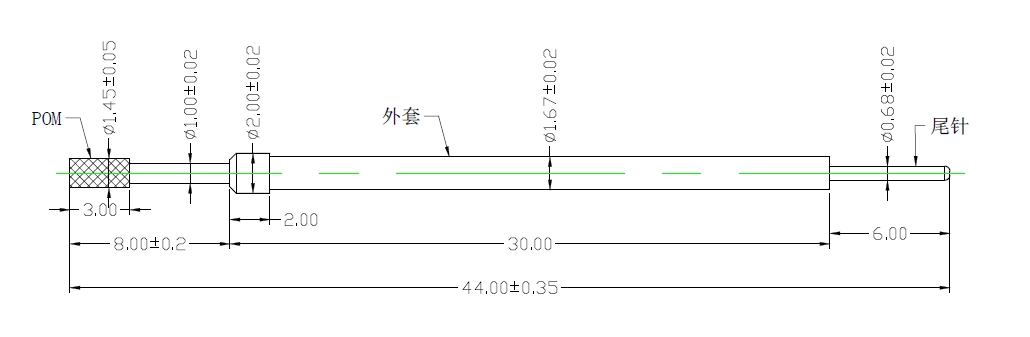

 Item number  SF-1.67x44
 Size  dia1.67*44mm
 Material  Plunger:Becu,Gold plated
 Barrel:Brass, Gold plated
 Insulation sleeve:PEEK
 Spring: SUS304
 Switch path  1.0mm
 Current rating  3A
 Spring force  100g
 MOQ  100PCS
 Payment  T/T
 Delivery time  5-15days after receiving the payment

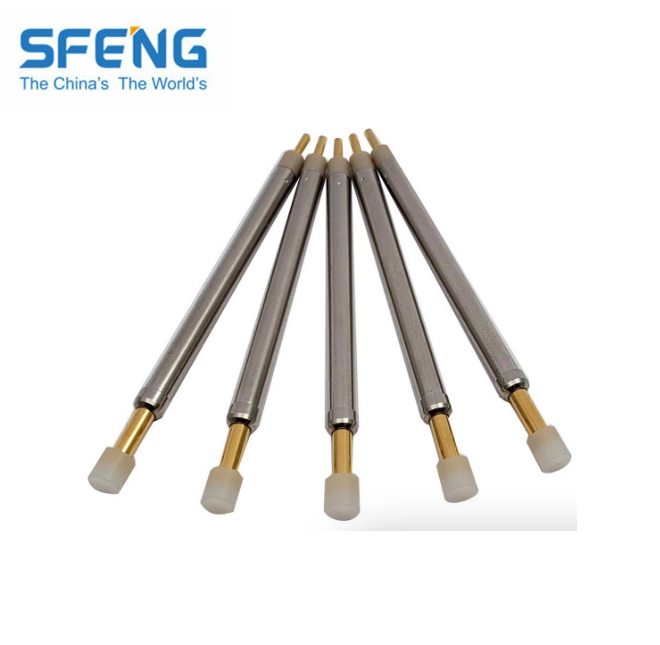

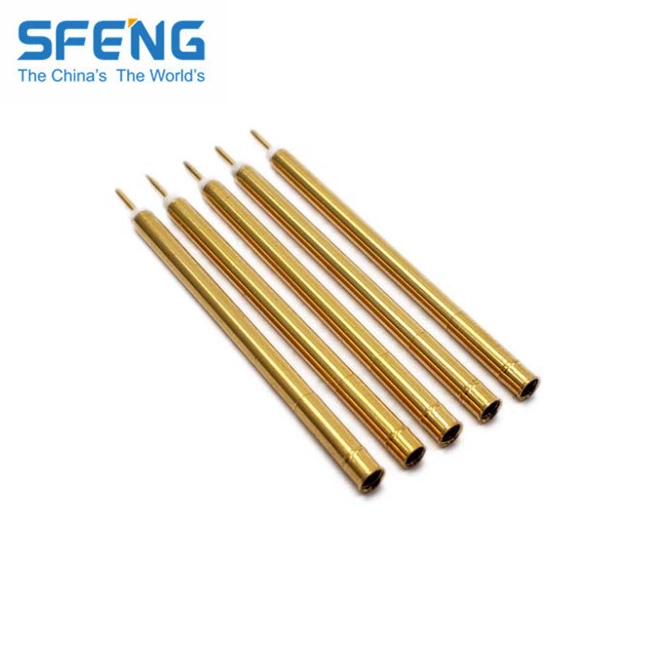

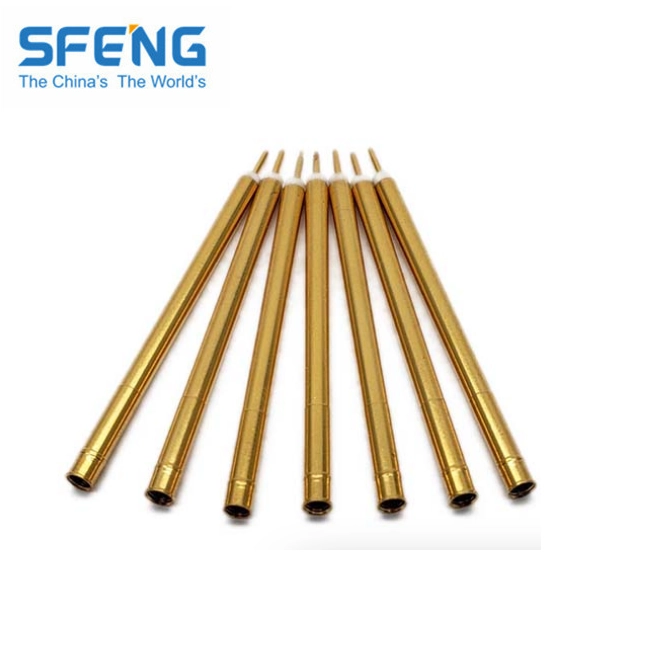

Product Pictures



Production Flow


Testing Equippment


Packing


Main products

1.Spring loaded pin(single)for PCB,ICT,FCTtesting etc;
2.Pogo pin(connector)to establish connection between two printed circuit boards for charging,locating,battery,semiconductor&interconnector applications;
3.Double ended probes for BGA and semiconductor testing;
4.Universal pin without spring,coating pin,LM pin with QZ and VZ series;
5.High current probe,switch probe,capacitance needdle;
6.Terminal&receptacle/socket;
7.Other related electronic components,Jig locks,POM and etc.
Whatever you want,please contact us without hesitation ,and we will try our best to meet your requirement within our capability.
