30A High Current Probe for Battery
| Product Name | 30A High Current probe |

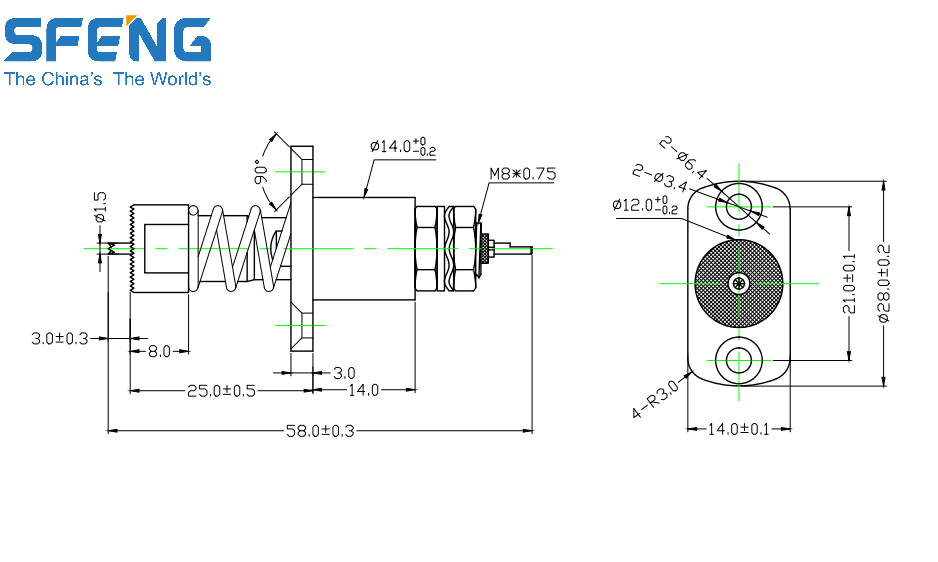

| Item no. | SF-12.0*58.0 |
| Material | Brass |
| Plating | Partial gold-plated over nickle |
| Currrent ration | 30A |
| Spring force | 3.0kg @ load 5.0mm |

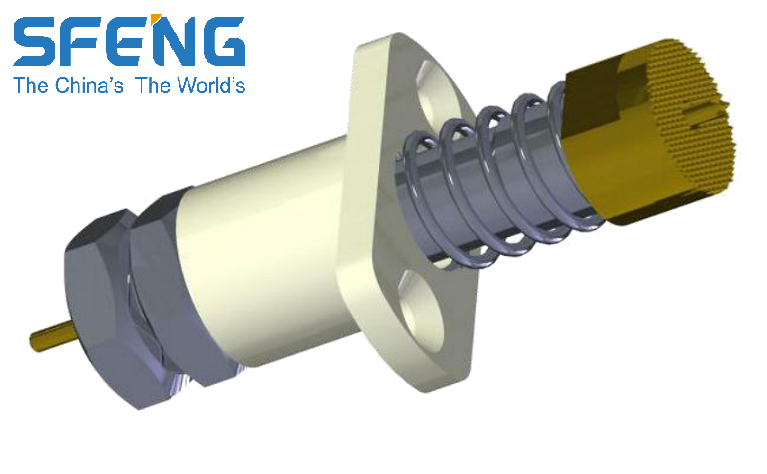

Product Picture
Our Service
1. We can reply yourinquiry within 24 working hours.
2. Customized design is available and OEM are welcomed.
3. We can deliverthe probe pins to our clients all over the world with speed and precision.
4. We can providethe lowest price with high quality product to our client .
Main Products
Spring loaded pin (single) for PCB, ICT, FCT testing etc;
Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery, Semiconductor & Interconnect applications;
Double ended probe for BGA and Semiconductor testing;
Universal pin without spring, coating pin, LM pin with QZ and VZ series;
High current probe, Switch probe, Capacitance needle;
Terminal & receptacle /socket;
Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc
Quality Control
Packing Picture
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Brand：SFENG
Model:SF33-6-23-60A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF43-6-20-100A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF40-6-22-120A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF55-6-23-180A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF-41-8-19-60A
Material: Be Cu
Packing: Plastic box and loaded into carton
Type: soft pack battery
Current:60A
Size:customized
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:500A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:15000g±20%(6.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:300A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:10000g±10%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:240A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:12000g±10%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+200℃
Current Rating:200A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:10000g±20%(5.0mm)
1.Material: Copper Alloy
2.Surface Plating: Partial gold-plated over nickel
3.Mechanical Durability:≥30000cycles
4.Operating Temperature:-40℃/+120℃
5.Current Rating:200A
6.Contact Resistance(Initial):≤0.2mΩ
7.Maximum Travel:≥10.0mm
8.Recommended Working Travel:9000g±20%(5.0mm)
Material:Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+120℃
Current Rating:160A
Contact Resistance(Initial):≤0.3mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:8000g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:100A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:5500g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:30A
Contact Resistance(Initial):≤1mΩ
Maximum Travel:≥9.0mm
Recommended Working Travel:2500g±15%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+120℃
Current Rating:80A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:7000g±15%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:30A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:3000g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Temperature Rise:≤15℃
Current Rating:60A
Contact Resistance(Initial):≤2mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:5000g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Temperature Rise:≤15℃
Current Rating:30A
Contact Resistance(Initial):≤0.6mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:2500g±20%(5.0mm)
1.Material: Copper Alloy
2.Surface Plating: Partial gold-plated over nickel
3.Mechanical Durability:≥30000cycles
4.Temperature Rise:≤20℃
5.Current Rating:25A
6.Contact Resistance(Initial):≤1mΩ
7.Maximum Travel:≥8.0mm
8.Recommended Working Travel:2500g±20%(5.0mm)

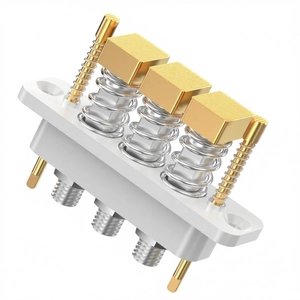

Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:600A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:8000g±20%(5.0mm)
