30A High Current Probe for Battery
| Product Name | 30A High Current Probe for Battery |
| Item no. | SF-PV1-H-H M7×24.5 |
| Material | Brass or BeCu or Bronze |
| Plating | Au plating |
| Currrent ration | 30A |
| Spring force | 550g @ load 2mm |
Product Picture
Our Service
1. We can reply yourinquiry within 24 working hours.
2. Customized design is available and OEM are welcomed.
3. We can deliverthe probe pins to our clients all over the world with speed and precision.
4. We can providethe lowest price with high quality product to our client .
Main Products
Spring loaded pin (single) for PCB, ICT, FCT testing etc;
Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery, Semiconductor & Interconnect applications;
Double ended probe for BGA and Semiconductor testing;
Universal pin without spring, coating pin, LM pin with QZ and VZ series;
High current probe, Switch probe, Capacitance needle;
Terminal & receptacle /socket;
Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc
Quality Control
Packing Picture
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Brand：SFENG
Model:SF33-6-23-60A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF43-6-20-100A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF40-6-22-120A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF55-6-23-180A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF-41-8-19-60A
Material: Be Cu
Packing: Plastic box and loaded into carton

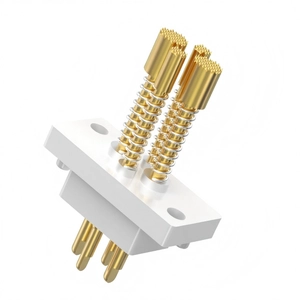

Type: soft pack battery
Current:60A
Size:customized
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:15A
Contact Resistance(Initial):≤10mΩ
Maximum Travel:≥7.0mm
Recommended Working Travel:3200±20%(6.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:6A
Contact Resistance(Initial):≤15mΩ
Maximum Travel:≥7.0mm
Recommended Working Travel:2000g±20%(4.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:6A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥7.0mm
Recommended Working Travel:2200g±20%(6.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:3A
Contact Resistance(Initial):≤20mΩ
Maximum Travel:≥5.0mm
Recommended Working Travel:380g±20%(2.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:3A
Contact Resistance(Initial):≤20mΩ
Maximum Travel:≥4.5mm
Recommended Working Travel:180g±20%(3.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:20A
Contact Resistance(Initial):≤2mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:2000g±15%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:6A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:1000g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:10A
Contact Resistance(Initial):≤10mΩ
Maximum Travel:≥7.5mm
Recommended Working Travel:450g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:20A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥9.0mm
Recommended Working Travel:2000g±20%(4.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:5A
Contact Resistance(Initial):≤5mΩ
Maximum Travel:≥4.5mm
Recommended Working Travel:580g±20%(2.5mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:40A
Contact Resistance(Initial):≤1mΩ
Maximum Travel:≥9.0mm
Recommended Working Travel:2500g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:30A
Contact Resistance(Initial):≤1mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:550g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:50A
Contact Resistance(Initial):≤1mΩ
Maximum Travel:≥7.0mm
Recommended Working Travel:1500±20%(5.0mm)
Brand: SFENG
Model: SF-12*58
Material: Brass
Current Rating: 30A, Contact resistance≤ 1mΩ
Maximum Travel：≥9.0mm
Spring force: 2500g±15%(5.0mm)
Lifetime: 300,000 times
