Product Specification

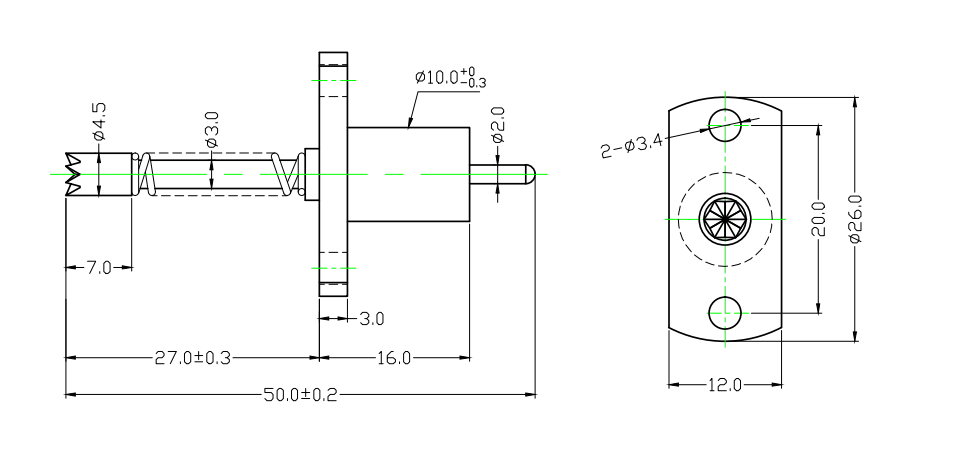

| Model | SF-Current Probe Pin 4.5*50.0 |
| Material | Becu, Hardness: HRC ≥ 40 |
| Effective stroke | ≥ 6.0mm |
| Current Rating | 3A |
| Lifetime | ≥300,000 times |

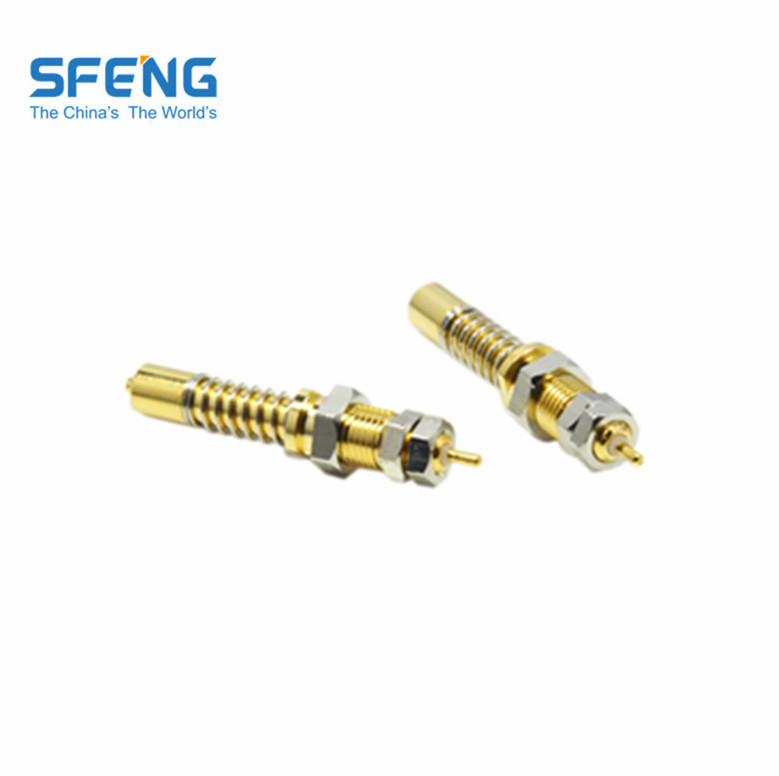

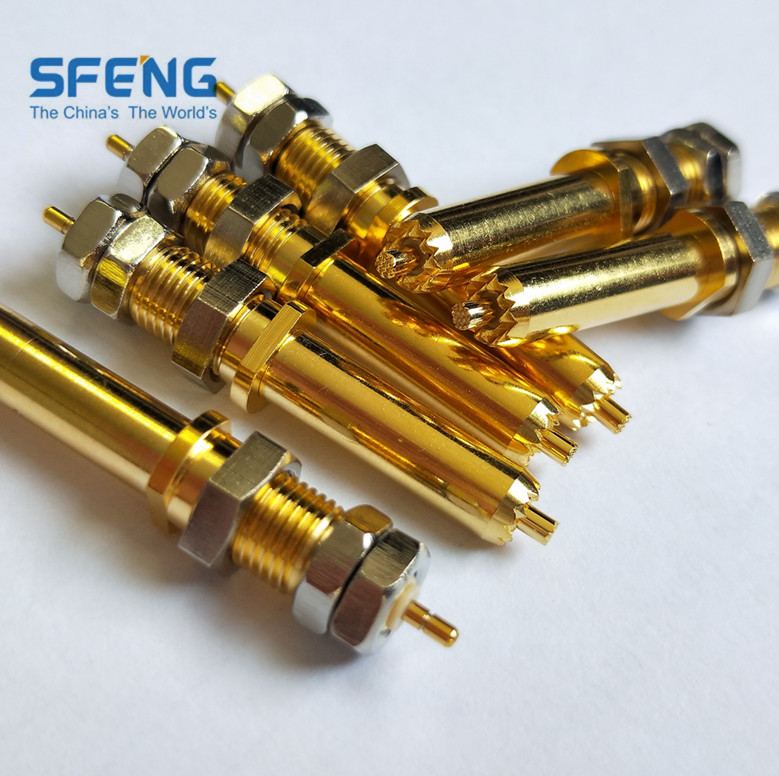

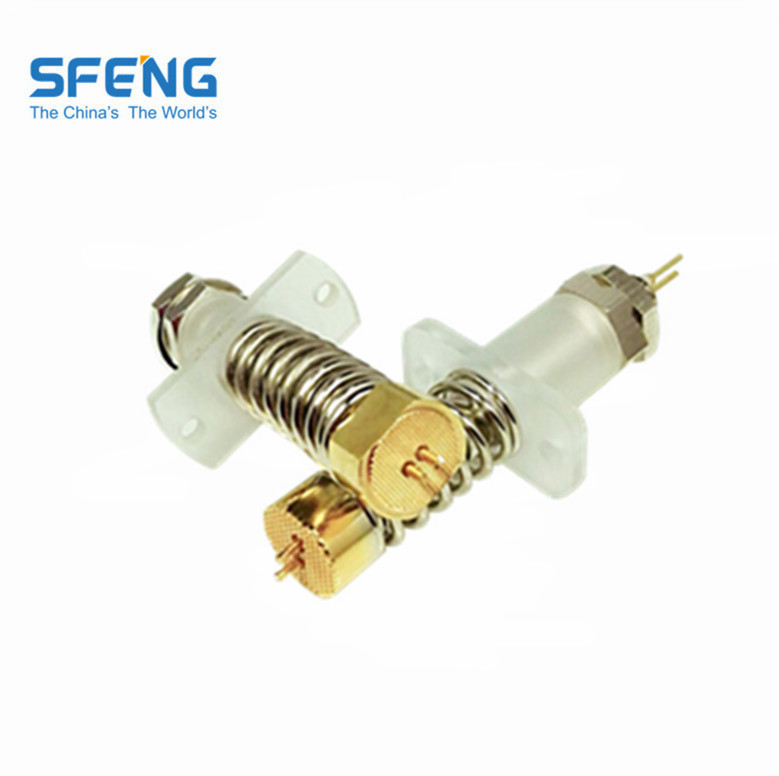

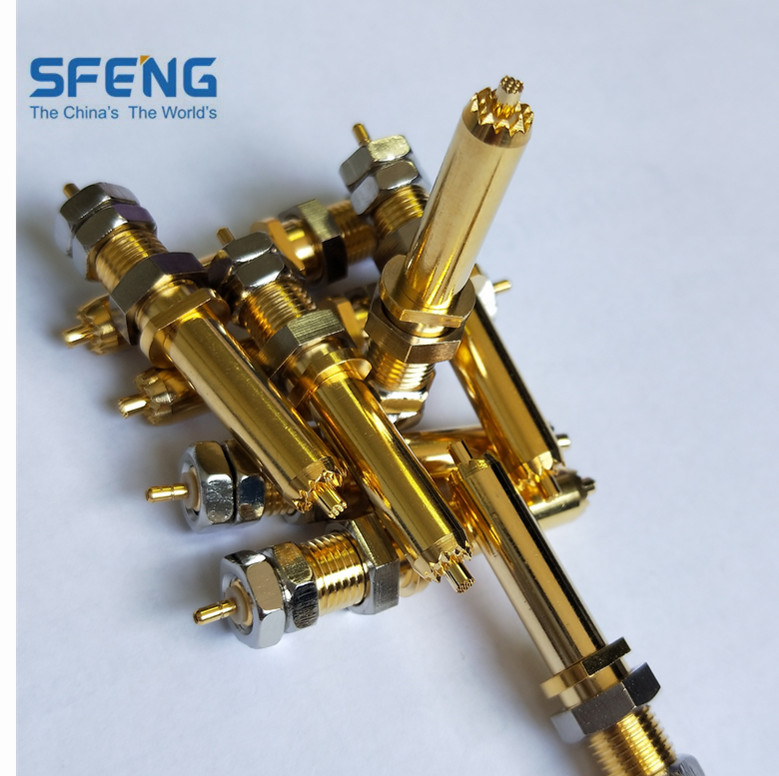

Product Picture
Our Service
1. We can reply yourinquiry within 24 working hours.
2. Customizeddesign is available and OEM are welcomed.
3. We can deliverthe probe pins to our clients all over the world with speed and precision.
4. We can providethe lowest price with high quality product to our client.
Main Products
Spring loaded pin (single) for PCB, ICT, FCT testing etc;
Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery, Semiconductor & Interconnect applications;
Double ended probe for BGA and Semiconductor testing;
Universal pin without spring, coating pin, LM pin with QZ and VZ series;
High current probe, Switch probe, Capacitance needle;
Terminal & receptacle /socket;
Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc
Quality Control
Packing Picture
Tel:008613862105944
Contact Person:Eve
PDF Show:PDF
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Brand：SFENG
Model:SF33-6-23-60A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF43-6-20-100A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF40-6-22-120A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF55-6-23-180A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF-41-8-19-60A
Material: Be Cu
Packing: Plastic box and loaded into carton
Type: soft pack battery
Current:60A
Size:customized
Brand: SFENG
Model: SF-12*58
Material: Brass
Current Rating: 30A, Contact resistance≤ 1mΩ
Maximum Travel：≥9.0mm
Spring force: 2500g±15%(5.0mm)
Lifetime: 300,000 times
Brand: SFENG
Model: SF-12*58
Material: Brass
Current Rating: 30A, Contact resistance≤ 1mΩ
Spring force: 600g ±20% when travel to 3.0mm
Spring force: 3.0kgf ±20%, full travel: 8.0mm
Lifetime: 300,000 times
Type: Current pin
Current rating: 40A
Type: Current pin
Current rating: 40A
Type: Current pin
Current rating: 60A
Type: Current pin
Current rating: 60A
Type:Two-probes current probe
Current:3A
Brand：SFENG
Model：SF33-6-23-60A
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF41-8-19-60A
Material：BeCu.
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF41-8-19-60A
Material：BeCu.
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF43-6-20-100A
Material：BeCu.
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF40-6-22-120A
Material：BeCu.
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF33-6-23-60A
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF33-6-23-60A
Packing：Plastic box and loaded into carton
