Low price golden plated ICT spring loaded test probe SF-PA11-B

Brand:SFENG

Item number:SF-PA11-B

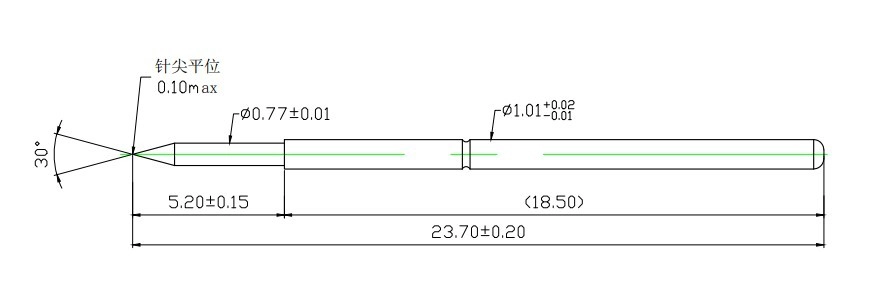

Size: dia1.01*L24.0mm

Plunger:SK4

Barrel:Phosphor bronze

Spring:SWP

Finish:Au on Ni plated

Packing:Plastic bag and loaded into carton box

Display Parameters Contact Now

Product Details

Production specifications

Item number	SF-PA11-B
Full travel	5.2mm
Spring force	80g
Current ration	3A
Current resistance	80mΩ
MOQ	100PCS
Payment term	100% T/T before shippment
Delivery time	5-10days after receiving the payment

Product Pictures

Production Flow

Testing Equippment

Packing

Quality Certification

Main products

1.Spring loaded pin(single)for PCB,ICT,FCTtesting etc;

2.Pogo pin(connector)to establish connection between two printed circuit boards for charging,locating,battery,semiconductor&interconnector applications;

3.Double ended probes for BGA and semiconductor testing;

4.Universal pin without spring,coating pin,LM pin with QZ and VZ series;

5.High current probe,switch probe,capacitance needdle;

6.Terminal&receptacle/socket;

7.Other related electronic components,Jig locks,POM and etc.

Whatever you want,please contact us without hesitation ,and we will try our best to meet your requirement within our capability.

Our service

1.We can reply your inquiry within 24 working hours;

2.Customized design is availble and OEM are welcomed;

3.We can deliver the probe pins to our clients all over the world with speed and precision.

4.We can provide the lowest price with high quality products to our clients.
