Micron switching probe for PCB testing

Full stroke: 5.2mm
Switching Path: 1.7mm
Spring force: 70gf @ load 1.7mm
Lifetime: 300,000 times
Application:wiring harness, testing jigs, fixtures to various automotive industries.

Full stroke: 5.0mm
Switching Path: 1.5mm
Spring force: 450gf @ load 5.0mm
Lifetime: 300,000 times
Application:wiring harness, testing jigs, fixtures to various automotive industries.

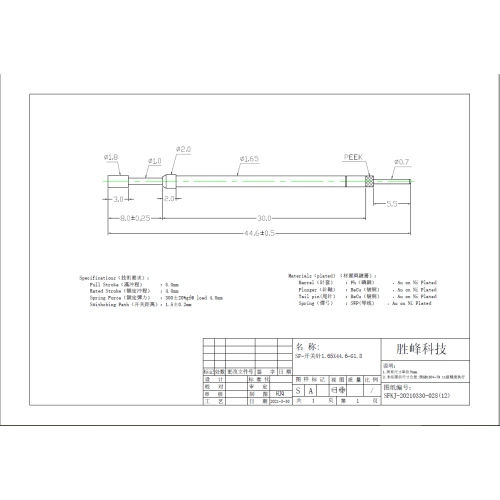

Item: Switching probe SF-KP1.65*44.6-G1.8 (NO)

Materials: Beryllium Copper
Spring: Music wire
Finish: gold plated

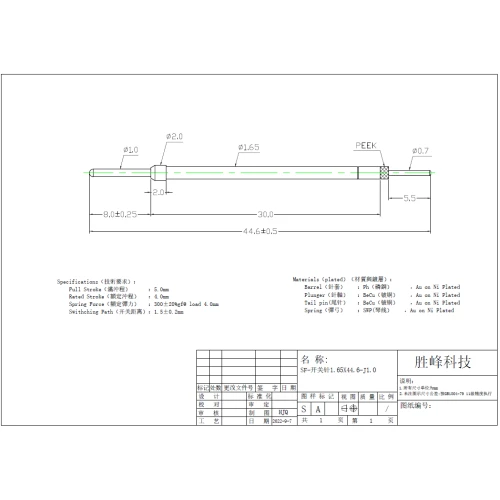

Item: Switching probe SF-KP1.65*44.6-J (round tip)
Materials: Beryllium Copper
Spring: Music wire
Finish: gold plated

Item: Switching probe SF-KP1.65*44.6-A1.5
Materials: Beryllium Copper
Spring: Music wire
Finish: gold plated

Brand：SFENG
Model：SF-开关针1.65*46.6-J1.0
Size：L.46.6mm
Material：Ph
Finish：Au on Ni Plated
Packing：Plastic box and loaded into carton

Brand：SFENG
Model：SF-开关针1.65*46.6-J1.0
Size：L.46.6mm
Material：Ph
Finish：Au on Ni Plated
Packing：Plastic box and loaded into carton

Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton

Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton

Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton

Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton

Brand：SFENG
Model：SF-开关针新PEEK 2.96X49带塑料头
Size：L.54.0mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton

Brand：SFENG
Model：SF-开关针新PEEK 2.96X49带塑料头
Size：L.54.0mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton

Brand：SFENG
Model：SF-开关针新PEEK 2.96X49带塑料头
Size：L.54.0mm
Material：Brass
Finish：Ni-plated
Packing：Plastic box and loaded into carton

Brand：SFENG
Model：SF265-F500-425L-102L-400G
Size：L.42.50mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton

Brand：SFENG
Model：SF265-F500-425L-102L-400G
Size：L.42.50mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton

Brand：SFENG
Model：SF265-F500-425L-102L-400G
Size：L.42.50mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton

Brand：SFENG
Model：SF265-F500-425L-102L-400G
Size：L.42.50mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton

Item: SF265-G300-5780L-1300L-250G-002
Material:
Plunger: Becu, Au on Ni plated
Barrel: Brass, Au on Ni plated
Insulation sleeve: PEEK
Solder Connection: Becu, Au on Ni plated
Tip: POM
Spring: SWP
Current Rating: 3A
Spring force: 2.5N
Packaging: plastic box, into cartons

Item: SF265-G300-5780L-1300L-250G-002
Material:
Plunger: Becu, Au on Ni plated
Barrel: Brass, Au on Ni plated
Insulation sleeve: PEEK
Solder Connection: Becu, Au on Ni plated
Tip: POM
Spring: SWP
Current Rating: 3A
Spring force: 2.5N
Packaging: plastic box, into cartons
