Product information
| Item | SF-PPA5.5X49 |
| Plunger | Beryllium copper |
| Body | brass |
| Spring | Stainless steel |
| Spring force | 1000g±10% |
| MOQ | 500pcs |
| Lead time | 7 days |

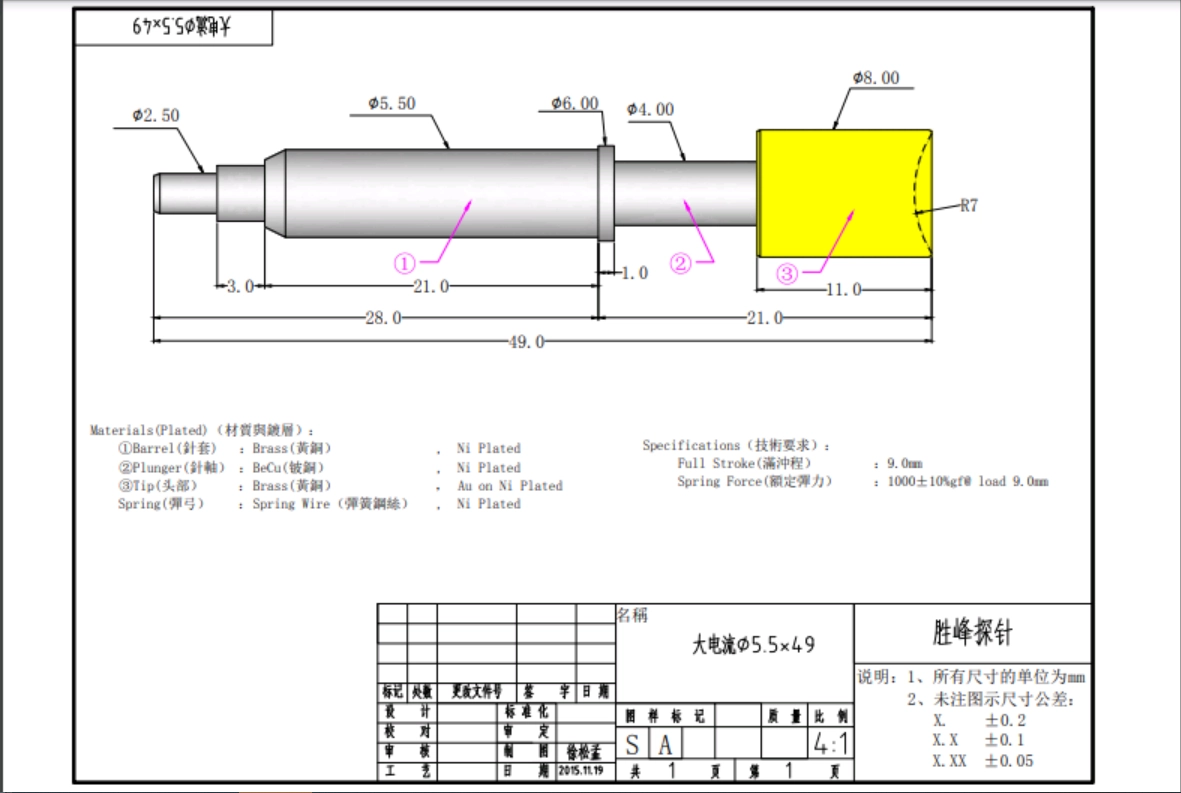

Product drawing

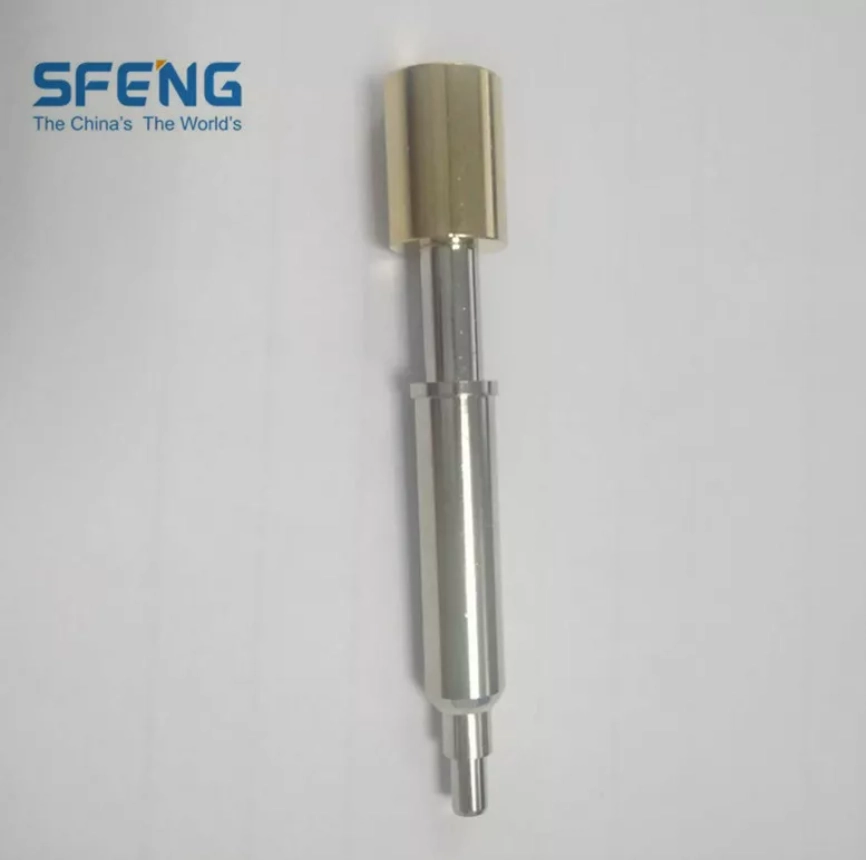

Product real picture

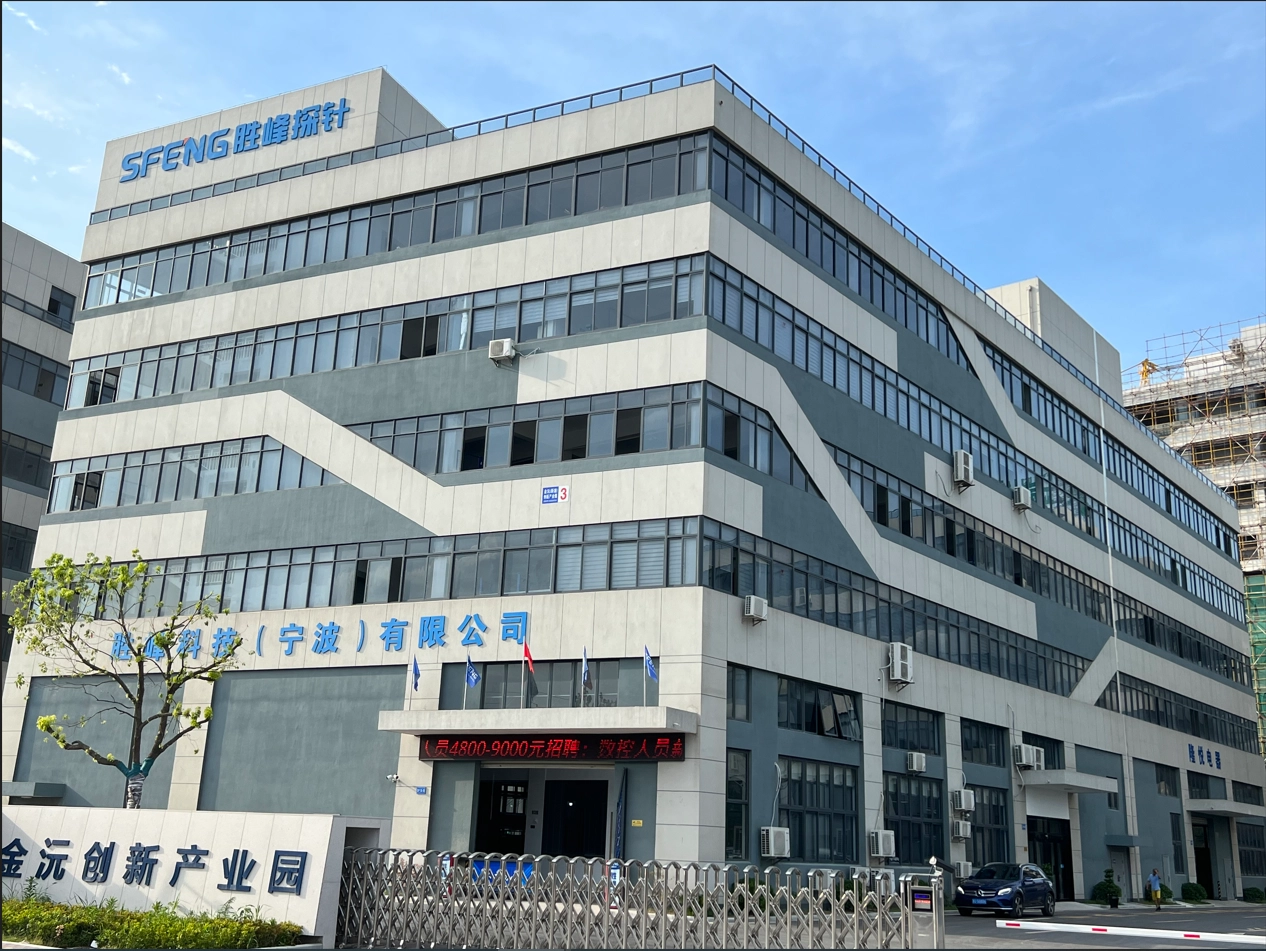

Factory
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Brand：SFENG
Model:SF33-6-23-60A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF43-6-20-100A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF40-6-22-120A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF55-6-23-180A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF-41-8-19-60A
Material: Be Cu
Packing: Plastic box and loaded into carton
Type: soft pack battery
Current:60A
Size:customized
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:500A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:15000g±20%(6.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:300A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:10000g±10%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:240A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:12000g±10%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+200℃
Current Rating:200A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:10000g±20%(5.0mm)
1.Material: Copper Alloy
2.Surface Plating: Partial gold-plated over nickel
3.Mechanical Durability:≥30000cycles
4.Operating Temperature:-40℃/+120℃
5.Current Rating:200A
6.Contact Resistance(Initial):≤0.2mΩ
7.Maximum Travel:≥10.0mm
8.Recommended Working Travel:9000g±20%(5.0mm)
Material:Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+120℃
Current Rating:160A
Contact Resistance(Initial):≤0.3mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:8000g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:100A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:5500g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:30A
Contact Resistance(Initial):≤1mΩ
Maximum Travel:≥9.0mm
Recommended Working Travel:2500g±15%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+120℃
Current Rating:80A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:7000g±15%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:30A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:3000g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Temperature Rise:≤15℃
Current Rating:60A
Contact Resistance(Initial):≤2mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:5000g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Temperature Rise:≤15℃
Current Rating:30A
Contact Resistance(Initial):≤0.6mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:2500g±20%(5.0mm)
1.Material: Copper Alloy
2.Surface Plating: Partial gold-plated over nickel
3.Mechanical Durability:≥30000cycles
4.Temperature Rise:≤20℃
5.Current Rating:25A
6.Contact Resistance(Initial):≤1mΩ
7.Maximum Travel:≥8.0mm
8.Recommended Working Travel:2500g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:600A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:8000g±20%(5.0mm)
