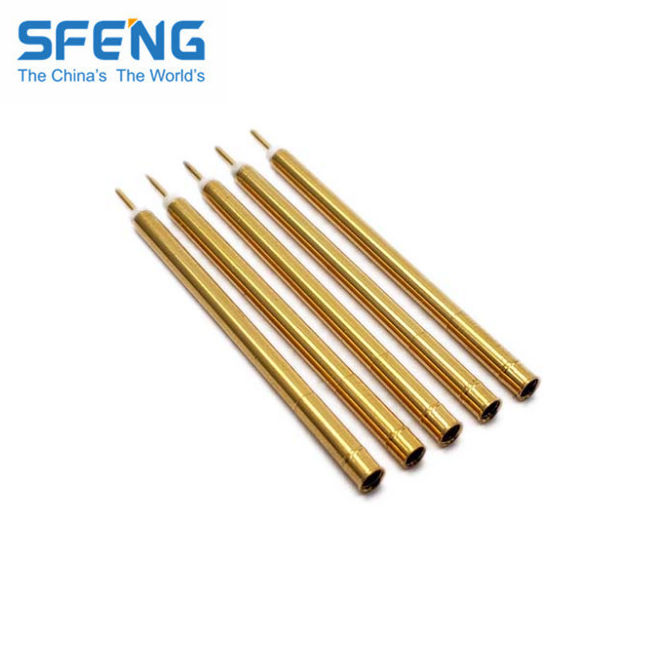

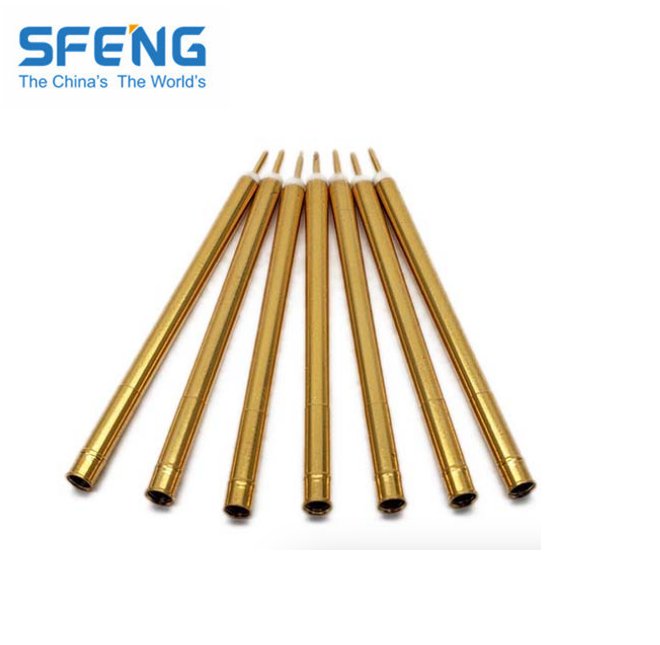

Normally close contact probe switch contact pin SF5797 with high quality
China Normally close contact probe switch contact pin SF5797 with high quality manufacturer China Normally close contact probe switch contact pin SF5797 with high quality manufacturer

Normally close contact probe switch contact pin SF5797 with high quality

  • Brand:SFENG
  • Item number:SF5797
  • Size: dia2.0*L44.6mm
  • Materials:Becu,Ph,SWP
  • Finish:Au on Ni plated
  • Packing:Plastic bag and loaded into carton box
  • Product Details

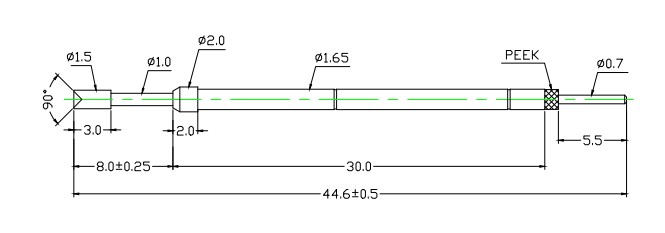

Production specifications



 Item number  SF5797
 Size  dia2.0*L44.6mm
 Material  Plunger:Becu, Au on Ni plated
 Barrel:Ph, Au on Ni plated
 Spring:SWP, Au on Ni plated
 Tail pin:Becu, Au on Ni plated
 Switch path  1.5±0.2mm
 Full travel  5.0mm
 Rated travel  4.0mm
 Current rating  3A
 MOQ  100PCS
 Payment  T/T
 Delivery time  5-15days after receiving the payment







Product Pictures


Production Flow


Testing Equippment


Packing 


Main products

1.Spring loaded pin(single)for PCB,ICT,FCTtesting etc;
2.Pogo pin(connector)to establish connection between two printed circuit boards for charging,locating,battery,semiconductor&interconnector applications;
3.Double ended probes for BGA and semiconductor testing;
4.Universal pin without spring,coating pin,LM pin with QZ and VZ series;
5.High current probe,switch probe,capacitance needdle;
6.Terminal&receptacle/socket;
7.Other related electronic components,Jig locks,POM and etc.
Whatever you want,please contact us without hesitation ,and we will try our best to meet your requirement within our capability.

Our service

1.We can reply your inquiry within 24 working hours;
2.Customized design is availble and OEM are welcomed;
3.We can deliver the probe pins to our clients all over the world with speed and precision.
4.We can provide the lowest price with high quality products to our clients.

Hot Tags : China spring pogo pin supplier spring loaded probe pin Switching pogo pin Switch test connector
