Specifications
|
Brand |
SFENG |
|
Model |
Switching contact probe SF-6536 |
|
Plunger |
Becu |
|
Barrel |
Brass |
|
Spring |
SUS304 |
|
Spring force |
250g |
|
Full travel |
5.2 mm |
|
Rated voltage |
NO |
|
Current Resistance |
50mΩ |
|
Spacing |
NO |
|
Mounting dimensions |
NO |
|
MOQ |
100 |
|
delivery time |
15 Days after confirming order |

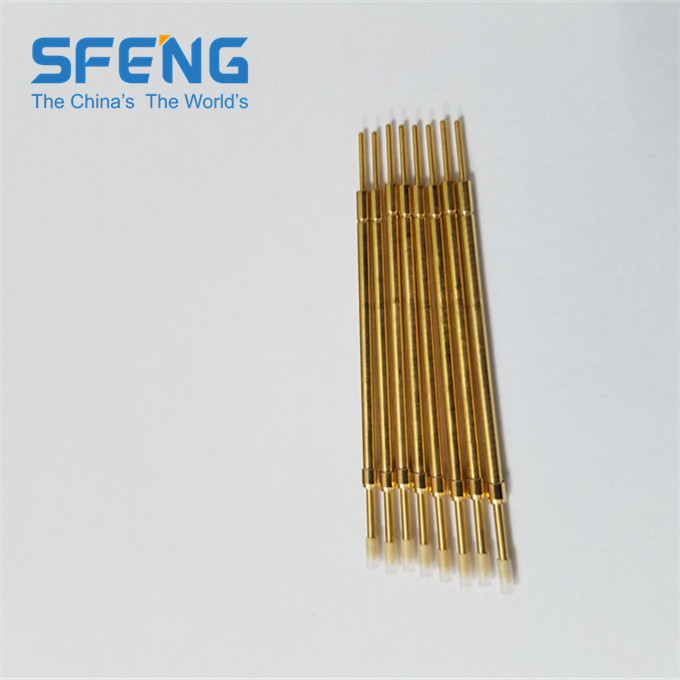

Product Image

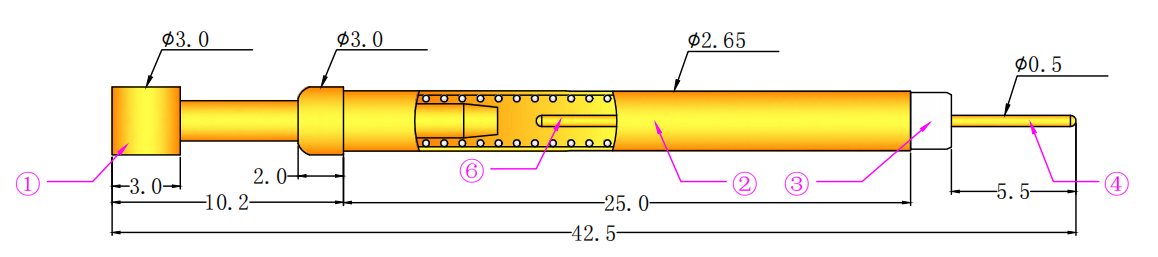

Switching test probe drawing
our service
1. Quick response.
2. Customized is accepted.
3. Short production time and fast delivery.
4. High quality and good price.
Main products
Spring-loaded pin (single) of PCB, ICT, FCT testing;
Spring pin (connector) to establish a connection between two printed circuit boards for charging, positioning, batteries, semiconductors and amplifiers; interconnect applications;
BGA and semiconductor test double-ended probe;
Universal pin no spring, paint needle, LM pin QZ and VZ series;
High current probe, the probe switches, capacitors needle;
Pier and amplifier; socket / socket;
Other related electronic components, 30 # OK line, jig lock, POM, iron hinges, etc.

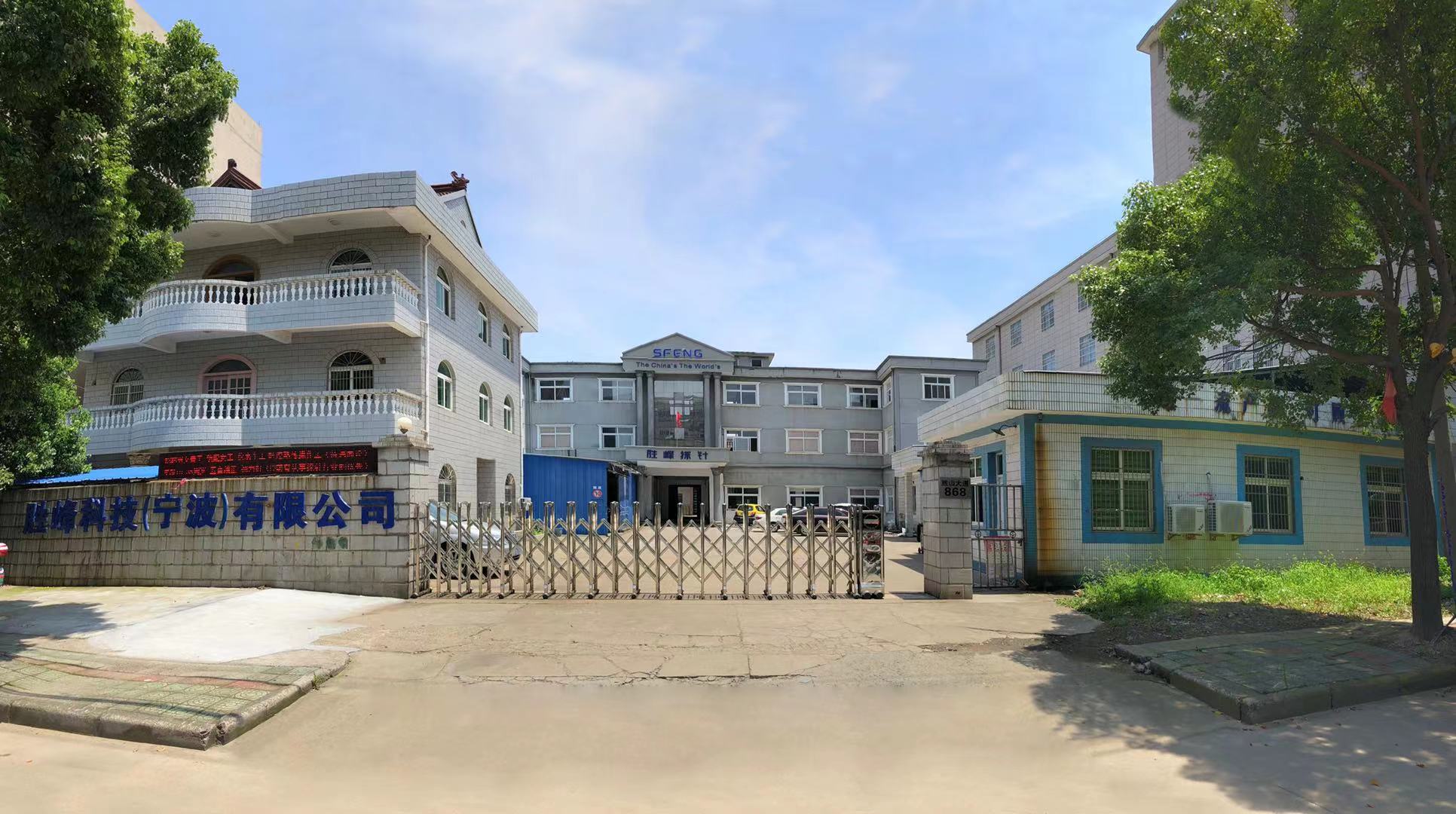

Factory Image
Production process
Testing equipment
Packing & delivery
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Full stroke: 5.2mm
Switching Path: 1.7mm
Spring force: 70gf @ load 1.7mm
Lifetime: 300,000 times
Application:wiring harness, testing jigs, fixtures to various automotive industries.
Full stroke: 5.0mm
Switching Path: 1.5mm
Spring force: 450gf @ load 5.0mm
Lifetime: 300,000 times
Application:wiring harness, testing jigs, fixtures to various automotive industries.
Item: Switching probe SF-KP1.65*44.6-G1.8 (NO)
Materials: Beryllium Copper
Spring: Music wire
Finish: gold plated
Item: Switching probe SF-KP1.65*44.6-J (round tip)
Materials: Beryllium Copper
Spring: Music wire
Finish: gold plated
Item: Switching probe SF-KP1.65*44.6-A1.5
Materials: Beryllium Copper
Spring: Music wire
Finish: gold plated
Switch Probe Specifications:
Current Rating:3A
Contact Resistance:<50mΩ
Full Stroke:5.2mm
Switching Path:1.7mm
Spring Force:100~150fg@ load 5.0mm
Spring Force:200~250gf@ load 3.3mm
The total set elastic:350~400gf@ load 5.0m
Material：
Plunger: Becu
Barrel: Brass
Spring:304 Stainless Steel
Insulation Sleeve: Peek
Solder Connection:Becu
Receptacle:Brass
Plating:Au on Ni plated
Plunger: Becu
Barrel: Brass
Spring:304 Stainless Steel
Material and plating:
1.Tip:POM
2.Plunger:brass,gold plated
3.Barrel:brass,gold plated
4.Insulation sleeve:PEEK
5.End pin:Ph,gold plate
Specifications:
1.Switch distance:1.5mm
2.Spring force:100g@1.5mm
Switch Probe Specifications:
Current Rating:3A
Contact Resistance:<50mΩ
Full Stroke:7.0mm
Switching Path:2.4mm
Switch Trip Elastic:0.9N@load2.4mm
Spring Force:2.5N@load 2/3
Material：
Plunger: Becu
Barrel: Brass
Spring:Music Wire
Tip:POM
Insulation Sleeve: Peek
Solder Connection:Becu
Switch Probe Specifications:
Full Stroke:5.0mm
Current Stroke:3.5mm
Current Force:400±20%
Switching Distance:1.0±0.2mm
Material：
Plunger: Becu
Barrel: Brass
Spring:304 Stainless Steel
Materials(Plated):
1.Plunger:Becu
2.Barrel:Brass
3.Insulation Sleeve:Peek
4.Solder Connetion:Becu
5.Receptable:Brass
6.Spring:SUS304
Specifications:
Current Rating:3A
Contact Resistance:<50mΩ
Full Stroke:5.2mm
Switching Path:1.7mm
Spring Force:100~150fg@load5.0mm/200~250gf@load3.3mm
The Total Set Elastic:350~400gf@load5.0mm
Techanical Parameters:
Switch distance:1.0±0.2mm
Full stroke:5.0mm
Current Stroke:3.5mm
Current Force:400g±20%
Material:
Plunger:Becu, Gold plated
Barrel:Brass, Gold plated
Spring:304 Stainless Steel
Brand：SFENG
Model：SF-开关针1.65*46.6-J1.0
Size：L.46.6mm
Material：Ph
Finish：Au on Ni Plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-开关针1.65*46.6-J1.0
Size：L.46.6mm
Material：Ph
Finish：Au on Ni Plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-开关针新PEEK 2.96X49带塑料头
Size：L.54.0mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-开关针新PEEK 2.96X49带塑料头
Size：L.54.0mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton
