Stable quality brass plated test probes FCT test header
China Stable quality brass plated test probes FCT test header manufacturer China Stable quality brass plated test probes FCT test header manufacturer China Stable quality brass plated test probes FCT test header manufacturer China Stable quality brass plated test probes FCT test header manufacturer

Stable quality brass plated test probes FCT test header

  • Brand:SFENG
  • Item number:SF-P125-J
  • Size: dia2.01*20.0mm
  • Plunger:Brass,Ni plated
  • Barrel:Brass,Au on Ni plated
  • Spring:SUS
  • Packing:Plastic bag and loaded into carton box
  • Product Details

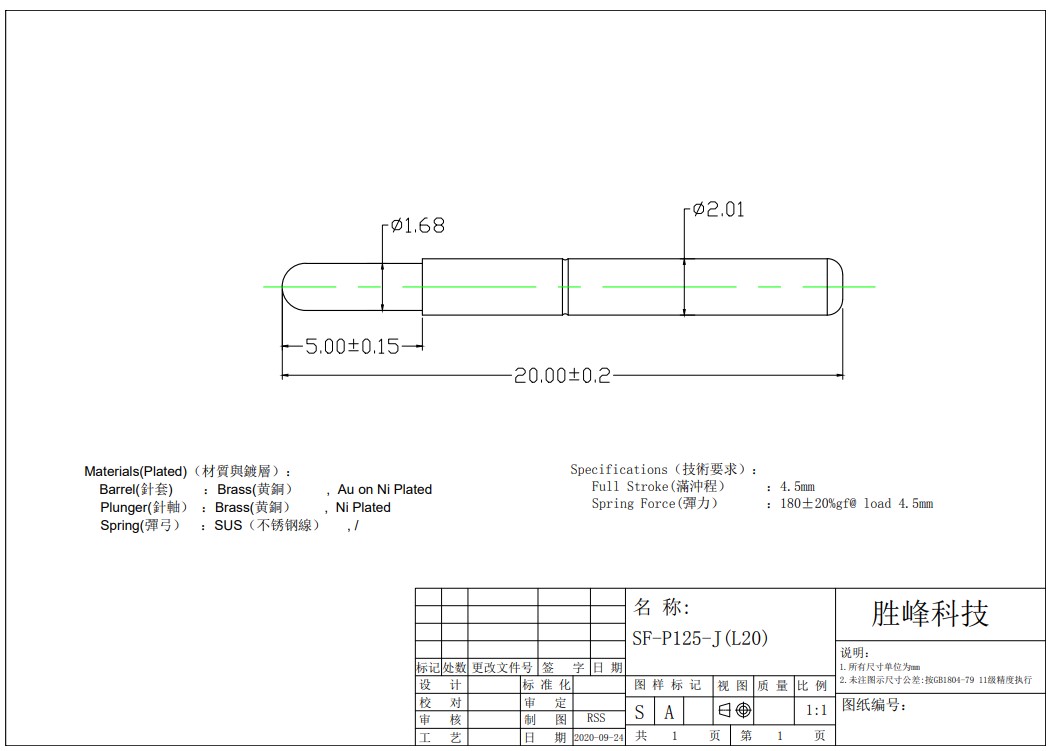

Production specifications


 Item number  SF-P125-J
 Pitch  1.90mm
 Mounting hole size  Pressure plate:1.35
 Glass fiber board:1.40mm
 Full stroke  4.5mm
 Spring force  180±20%gf@load4.5mm
 Current ration  3A
 Current resistance  ≤50mΩ
 MOQ  100PCS
 Payment  T/T
 Delivery time  5-10days after receiving the payment

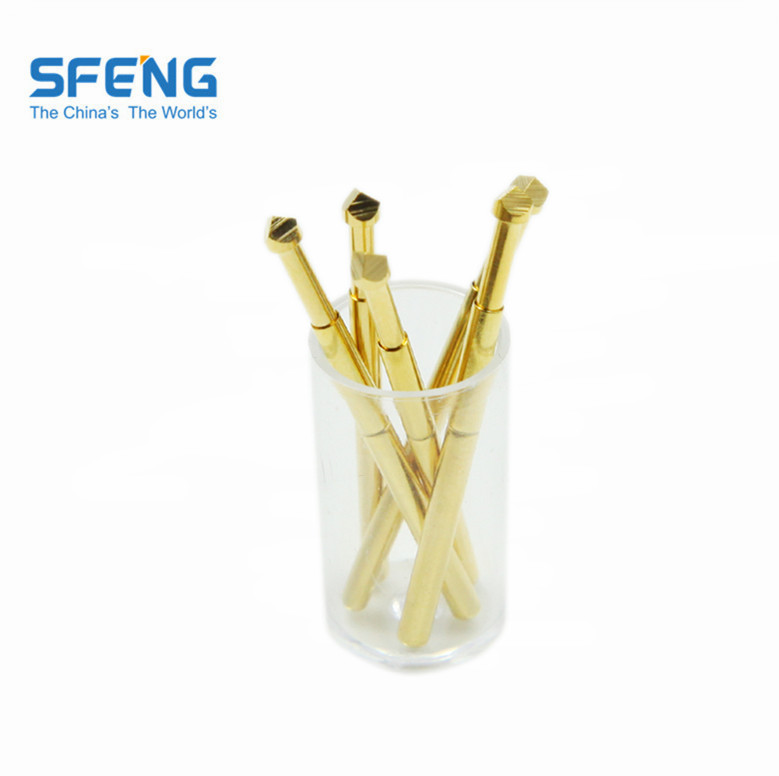

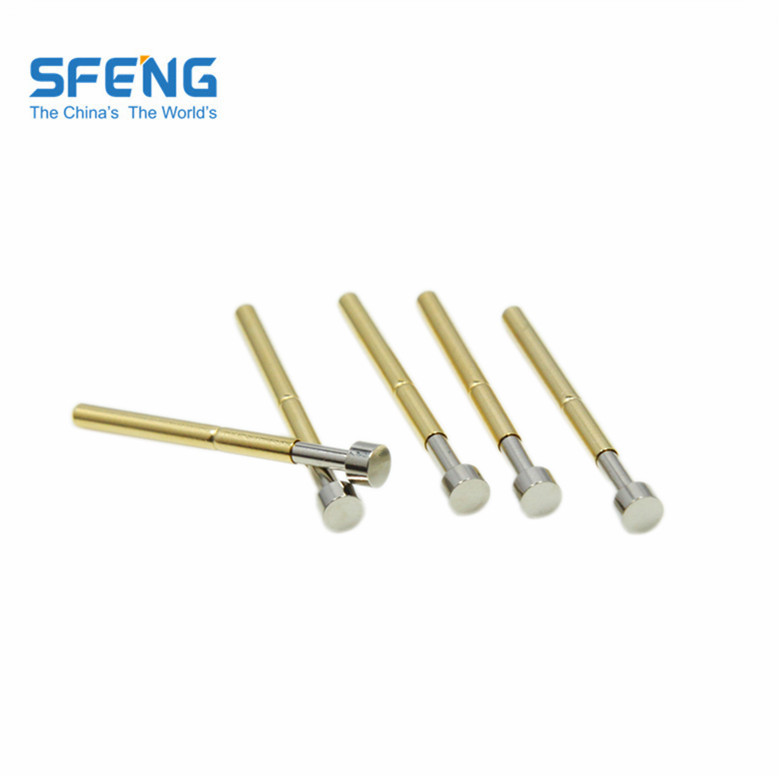

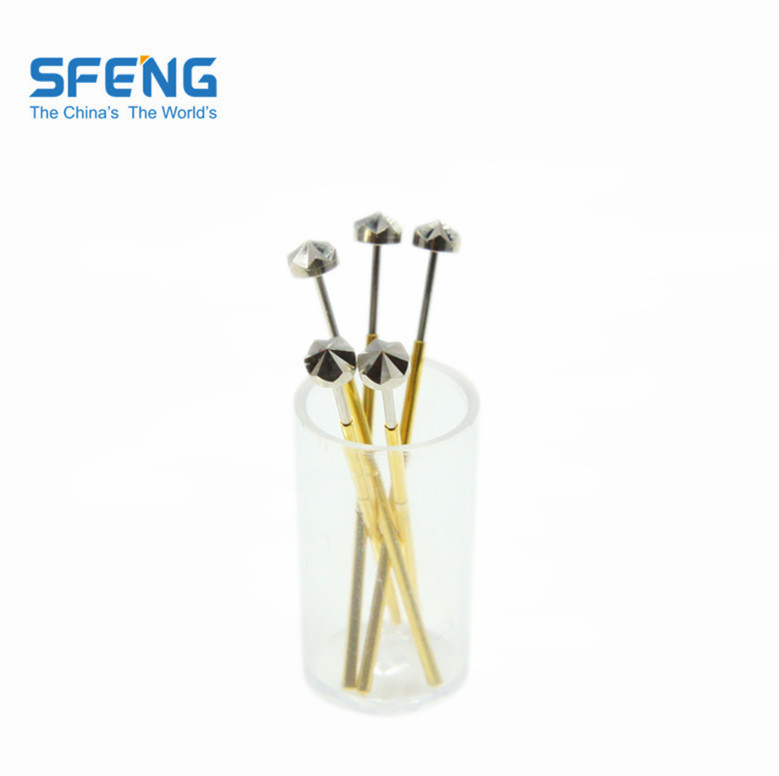

Product Pictures


Production Flow


Testing Equippment


Packing 


Main products

1.Spring loaded pin(single)for PCB,ICT,FCTtesting etc;
2.Pogo pin(connector)to establish connection between two printed circuit boards for charging,locating,battery,semiconductor&interconnector applications;
3.Double ended probes for BGA and semiconductor testing;
4.Universal pin without spring,coating pin,LM pin with QZ and VZ series;
5.High current probe,switch probe,capacitance needdle;
6.Terminal&receptacle/socket;
7.Other related electronic components,Jig locks,POM and etc.
Whatever you want,please contact us without hesitation ,and we will try our best to meet your requirement within our capability.

Our service

1.We can reply your inquiry within 24 working hours;
2.Customized design is availble and OEM are welcomed;
3.We can deliver the probe pins to our clients all over the world with speed and precision.
4.We can provide the lowest price with high quality products to our clients.
