high quality standard test pinhigh quality standard test pinhigh quality standard test pinhigh quality standard test pin

high quality standard test pin

  • Item:SF-P100
  • Material: Brass
  • Finish: Ni-plated or Gold-plated
  • Size:1.36*33

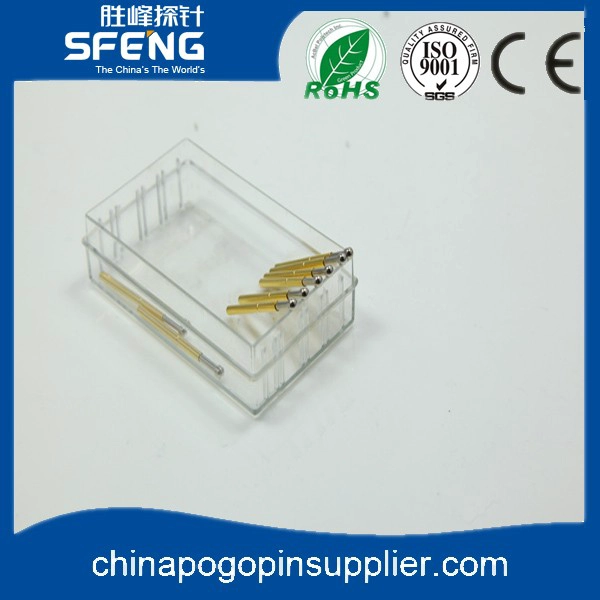

  • Packing: Plastic box and loaded into carton

Product Specification

Brand

SFENG

Item number

SF-P100

Plunger

brass

Barrel

brass

Spring

SUS or Music wire

Spring Force

200g

Full Travel

6.40(0.2520'')

Current Ration

3A

Current Resistance

50mW

Pitch

2.54(0.1000'')

Mounting hole size

1.70(0.0670'')/1.75(0.0689'')

MOQ

100 pcs

Lead time

7 working days after receiving the payment

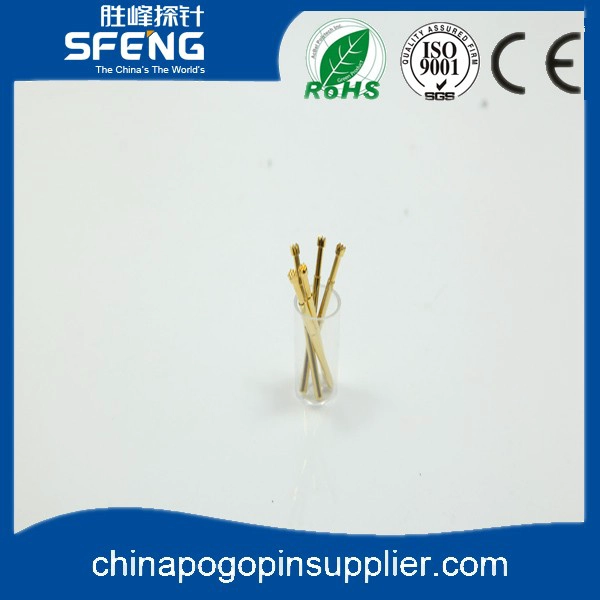

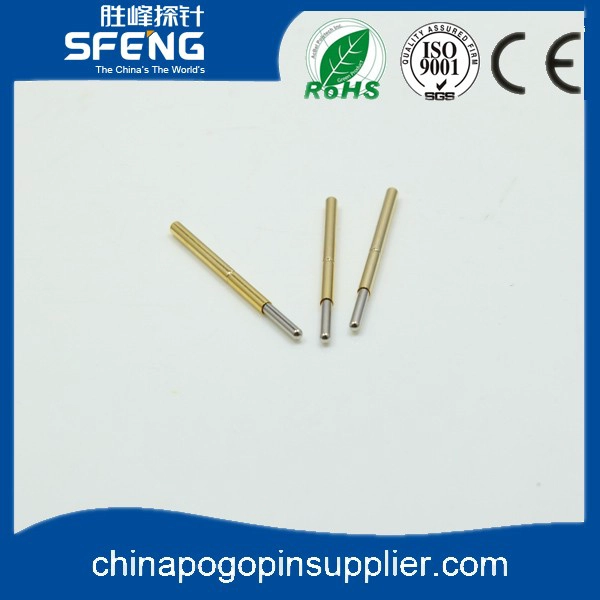

Product Picture



Our Service

1. We can reply your inquiry within 24 working hours.

2. Customized design is available and OEM are welcomed.

3. We can deliver the probe pins to our clients all over the world with speed and precision.

4. We can provide the lowest price with high quality product to our client      .



Main Products

Spring loaded pin (single) for PCB, ICT, FCT testing etc;

Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery, Semiconductor &  Interconnect applications;

Double ended probe for BGA and Semiconductor testing;

Universal pin without spring, coating pin, LM pin with QZ and VZ series;

High current probe, Switch probe, Capacitance needle;

Terminal & receptacle /socket;

Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc



Quality Control





Packing Picture
