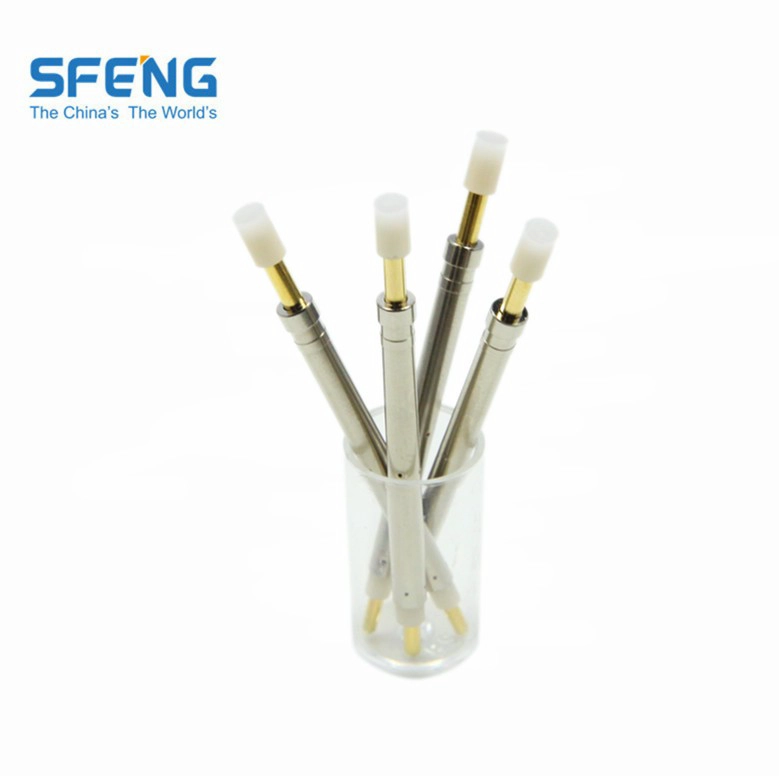

pogo pin spring loaded switch probe for test
| Switch probe model | SF-switch probe |
| Plunger material | Be Cu, Gold plated |
| Barrel material | Be Cu, Gold plated |
| Insulation sleeve | peek |
| Solder connection | Be Cu, Gold plated |
| Switch probe receptacle | brass, Gold plated |
| Spring | music sire |
| Switch probe condition | normally open |

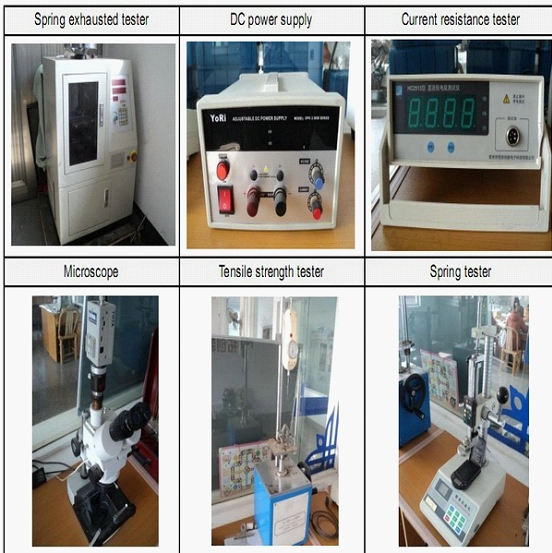

Equipment control:
Package:
Main Products
1.Spring loaded pin (single) for PCB, ICT, FCT testing etc;
2.Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery, Semiconductor & Interconnect applications;
3.Double ended probe for BGA and Semiconductor testing;
4.Universal pin without spring, coating pin, LM pin with QZ and VZ series;
5.High current probe, Switch probe, Capacitance needle;
Terminal & receptacle /socket;
Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc
contact:
Contact Person:Anna
e-mail:anna@sf-probe.com
Tell:008651268051148-607
cell:0086+13815297709
wechat:cyl172839
QQ:2540894051
Tel:008613862105944
Contact Person:Eve
PDF Show:PDF
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Full stroke: 5.2mm
Switching Path: 1.7mm
Spring force: 70gf @ load 1.7mm
Lifetime: 300,000 times
Application:wiring harness, testing jigs, fixtures to various automotive industries.
Full stroke: 5.0mm
Switching Path: 1.5mm
Spring force: 450gf @ load 5.0mm
Lifetime: 300,000 times
Application:wiring harness, testing jigs, fixtures to various automotive industries.
Item: Switching probe SF-KP1.65*44.6-G1.8 (NO)
Materials: Beryllium Copper
Spring: Music wire
Finish: gold plated
Item: Switching probe SF-KP1.65*44.6-J (round tip)
Materials: Beryllium Copper
Spring: Music wire
Finish: gold plated
Item: Switching probe SF-KP1.65*44.6-A1.5
Materials: Beryllium Copper
Spring: Music wire
Finish: gold plated
Brand：SFENG
Model：SF-开关针1.65*46.6-J1.0
Size：L.46.6mm
Material：Ph
Finish：Au on Ni Plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-开关针1.65*46.6-J1.0
Size：L.46.6mm
Material：Ph
Finish：Au on Ni Plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-开关针新PEEK 2.96X49带塑料头
Size：L.54.0mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-开关针新PEEK 2.96X49带塑料头
Size：L.54.0mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-开关针新PEEK 2.96X49带塑料头
Size：L.54.0mm
Material：Brass
Finish：Ni-plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF265-F500-425L-102L-400G
Size：L.42.50mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF265-F500-425L-102L-400G
Size：L.42.50mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF265-F500-425L-102L-400G
Size：L.42.50mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF265-F500-425L-102L-400G
Size：L.42.50mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton
Item: SF265-G300-5780L-1300L-250G-002
Material:
Plunger: Becu, Au on Ni plated
Barrel: Brass, Au on Ni plated
Insulation sleeve: PEEK
Solder Connection: Becu, Au on Ni plated
Tip: POM
Spring: SWP
Current Rating: 3A
Spring force: 2.5N
Packaging: plastic box, into cartons
Item: SF265-G300-5780L-1300L-250G-002
Material:
Plunger: Becu, Au on Ni plated
Barrel: Brass, Au on Ni plated
Insulation sleeve: PEEK
Solder Connection: Becu, Au on Ni plated
Tip: POM
Spring: SWP
Current Rating: 3A
Spring force: 2.5N
Packaging: plastic box, into cartons
