Material:Barrel/Plunger:Brass Spring:304 Stainless Steel

Plating:Plunger:Au 3u"  Barrel: Au 3u"  Spring:Au 1u"   Over 50~120u” Ni

Mechanical Durability:≥10000cycles

Rated current & voltage:12V/3.0A

Spring Force:280g±20%

Material:Barrel/Plunger:Brass Spring:304 Stainless Steel

Plating:Plunger:Au 3u" Barrel: Au 5u" Over 50~120u” Ni

Mechanical Durability:≥10000cycles

Rated current & voltage:12V/1.0A

Spring Force:20g±20%

Material:Barrel/Plunger:Brass Spring:304 Stainless Steel

Plating:Plunger:Au 5u" Barrel: Au 5u" Over 50~120u” Ni

Mechanical Durability:≥10000cycles

Rated current & voltage:12V/2.0A

Spring Force:100g±20%

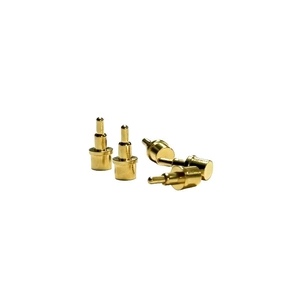

Item No:SF-PG2.9-6.5-2.0-W2.5-2.0-1.5-2

Material:Barrel/Plunger:Brass   Spring:304 Stainless Steel

Plating:Plunger:Au 4u"   Barrel: Au 4u"  Over 60-80u” Ni

Mechanical Durability:≥10000cycles

Rated current & voltage:12V/1.0A

Spring Force:30g±20%

Material: Copper Alloy

Surface Plating: Partial gold-plated over nickel

Mechanical Durability:≥30000cycles

Operating Temperature:-40℃/+105℃

Current Rating:240A

Contact Resistance(Initial):≤0.2mΩ

Maximum Travel:≥10.0mm

Recommended Working Travel:12000g±10%(5.0mm)

1.Material: Copper Alloy
2.Surface Plating: Partial gold-plated over nickel
3.Mechanical Durability:≥30000cycles
4.Operating Temperature:-40℃/+120℃
5.Current Rating:200A
6.Contact Resistance(Initial):≤0.2mΩ
7.Maximum Travel:≥10.0mm
8.Recommended Working Travel:9000g±20%(5.0mm)

Recommended minimum center:1.0mm

Mounting hole size: 0.75mm

Full travel:2.0

Spring force:80g

Materials and finishes:Plunger:Becu, Gold Plated

Barrel:Brass

Spring:Stainless steel

Current ration:1A

Contact resistance:50mΩ

Model Number:SF-P030-Spring Test Pogo Pin

Recommended minimum center:0.90mm

Mounting hole size: Acrylic:0.65mm

Full travel:2.0

Spring force:60g

Materials and finishes:Plunger:Becu, Ni plated; SK4 Ni plated

Barrel:Brass

Spring:Music wire

Current ration:1A

Contact resistance:50mΩ

Recommended minimum center:0.80mm

Mounting hole size: 0.55mm

Full travel:2.0

Spring force:40g

Materials and finishes:Plunger:Becu, Ni plated; SK4 Ni plated

Barrel:Brass

Spring:Music wire

Current ration:0.5A

Contact resistance:50mΩ

MOQ:100PCS

Brand:SFENG
Item number:SF-P050-B
Origin place:Zhejiang China
Size: dia0.35*length12.5mm
Plunger:SK4
Barrel:Phosphor Bronze
Spring:Music wire
Finish:Ni or Gold plated
Packing:Plastic bag and loaded into carton box
MOQ:100PCS
Customization:OEM,ODM

Model number:SF-P060-Test Probe Pin

Recommended minimum center:0.65mm

Mounting hole size: 0.45mm

Full travel:1.5

Spring force:40g

Materials and finishes:Plunger:Becu, Ni plated;  Barrel:Brass;  Spring:Music wire

Current ration:0.5A

Contact resistance:50mΩ

SF-P070 Series Fine Pitch Spring Test Probe Pin

Recommended minimum center:0.60mm

Mounting hole size: 0.40mm

Full travel:1.5

Spring force:20g

Materials and finishes:Plunger:SK4 Ni plated

Barrel:Brass

Spring:Music wire, gold plated

Current ration:0.3A

Contact resistance:50mΩ
