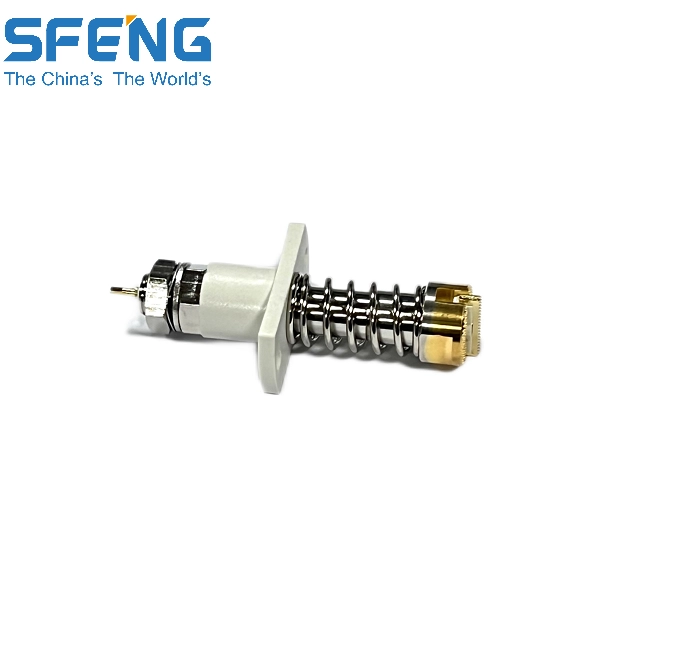

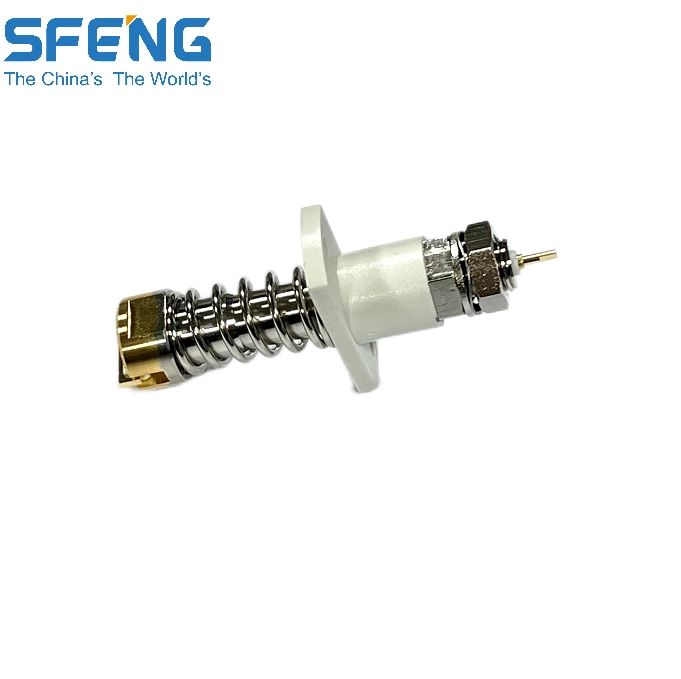

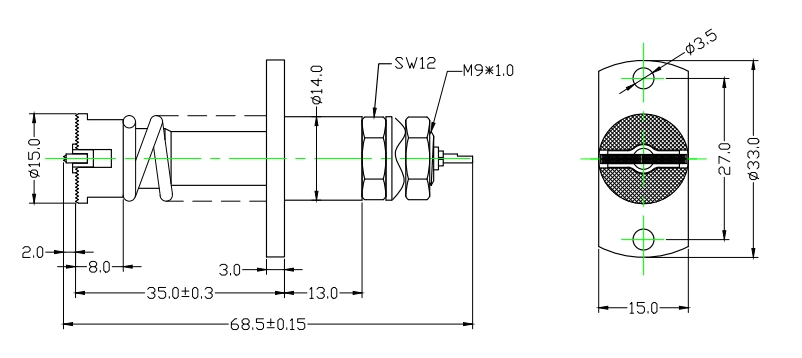

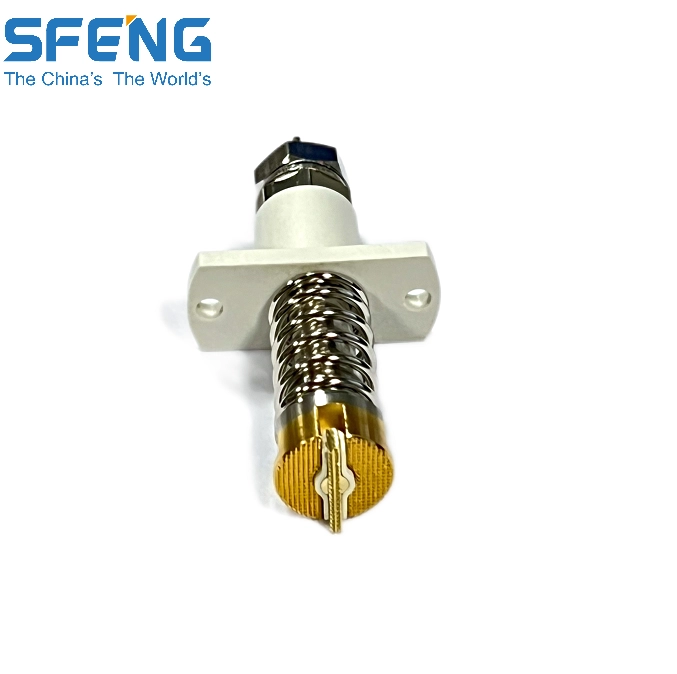

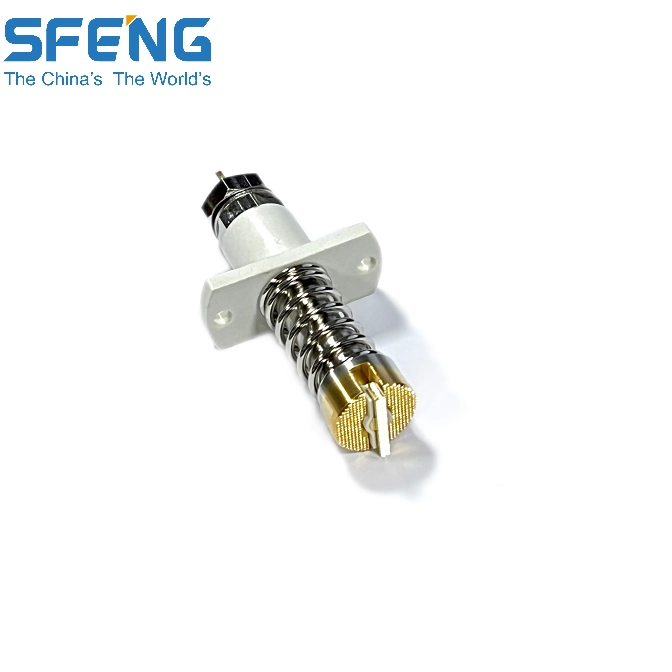

60A high current coaxial probe Product drawing
Product Specification

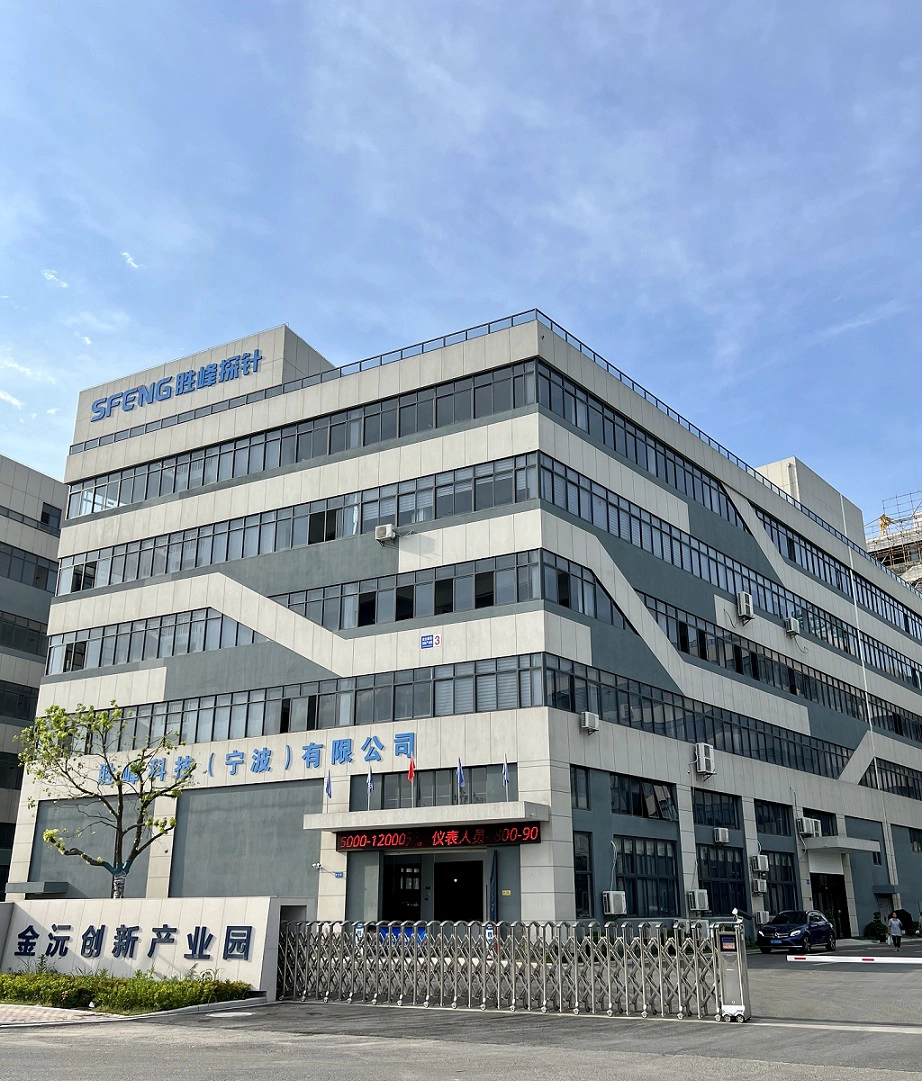

Company Profile
Suzhou Shengteng Electronic Co.,Ltd is specializing in the spring probe&the pogo pin with high quality,low price and fast delivery.We have our own brand,we always devote ourselves to achieving international standards,our company have passed the ISO9001-2008 quality managements certification and our products are qualified of RoHs.
 FAQ
1) Can we make a different size or different materail, say like customized item? Surely, one of our main feature is OEM 2) Are those spring probe or pogo pins produced by your company? Yes, our production department are with over 30 sets of CNC equipments. 3) Do you have a registed brand? Yes, SFENG PROBE is our own brand. 4) Do you have QC process? Yes, we have a testing department. 5) How is it going with Suzhou shengteng & shengfeng probe? Suzhou shengteng Electronic Company is our registed company name; shengfeng probe is registed brand name. 6) can I have a free sample before placing order? If the standard items, with in stock, No problem, we can send 3 ~ 5 pcs for your testing approval; if a special request of item, supposed a new mould, we will charge a certain deposit and can be refundable. Shipment
 |
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Brand：SFENG
Model:SF33-6-23-60A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF43-6-20-100A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF40-6-22-120A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF55-6-23-180A
Material: Be Cu
Packing: Plastic box and loaded into carton
Brand：SFENG
Model:SF-41-8-19-60A
Material: Be Cu
Packing: Plastic box and loaded into carton
Type: soft pack battery
Current:60A
Size:customized
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:500A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:15000g±20%(6.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:300A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:10000g±10%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:240A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:12000g±10%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+200℃
Current Rating:200A
Contact Resistance(Initial):≤0.2mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:10000g±20%(5.0mm)
1.Material: Copper Alloy
2.Surface Plating: Partial gold-plated over nickel
3.Mechanical Durability:≥30000cycles
4.Operating Temperature:-40℃/+120℃
5.Current Rating:200A
6.Contact Resistance(Initial):≤0.2mΩ
7.Maximum Travel:≥10.0mm
8.Recommended Working Travel:9000g±20%(5.0mm)
Material:Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+120℃
Current Rating:160A
Contact Resistance(Initial):≤0.3mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:8000g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:100A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:5500g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:30A
Contact Resistance(Initial):≤1mΩ
Maximum Travel:≥9.0mm
Recommended Working Travel:2500g±15%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+120℃
Current Rating:80A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:7000g±15%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:30A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:3000g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Temperature Rise:≤15℃
Current Rating:60A
Contact Resistance(Initial):≤2mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:5000g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Temperature Rise:≤15℃
Current Rating:30A
Contact Resistance(Initial):≤0.6mΩ
Maximum Travel:≥10.0mm
Recommended Working Travel:2500g±20%(5.0mm)
1.Material: Copper Alloy
2.Surface Plating: Partial gold-plated over nickel
3.Mechanical Durability:≥30000cycles
4.Temperature Rise:≤20℃
5.Current Rating:25A
6.Contact Resistance(Initial):≤1mΩ
7.Maximum Travel:≥8.0mm
8.Recommended Working Travel:2500g±20%(5.0mm)
Material: Copper Alloy
Surface Plating: Partial gold-plated over nickel
Mechanical Durability:≥30000cycles
Operating Temperature:-40℃/+105℃
Current Rating:600A
Contact Resistance(Initial):≤0.5mΩ
Maximum Travel:≥8.0mm
Recommended Working Travel:8000g±20%(5.0mm)
