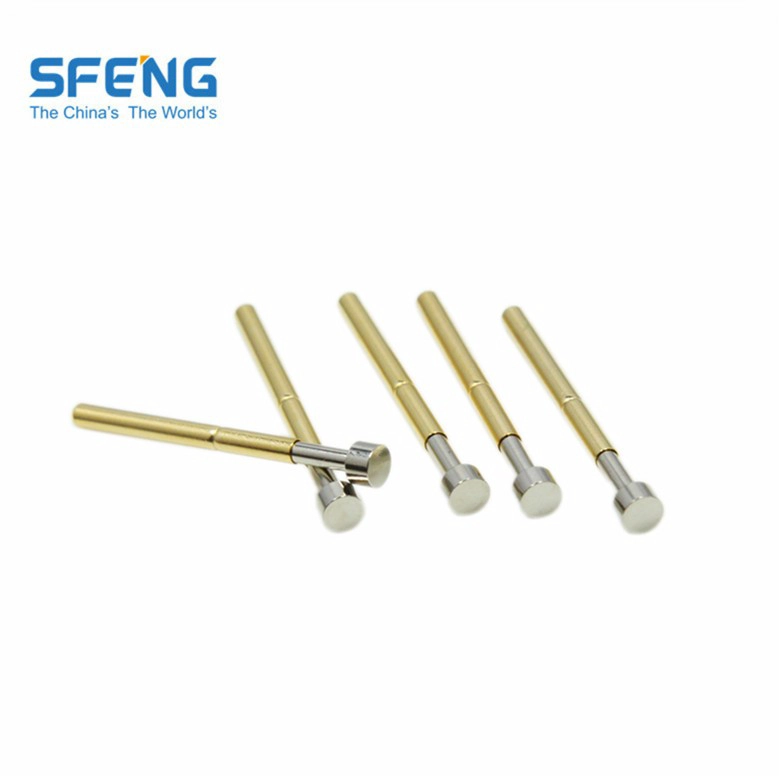

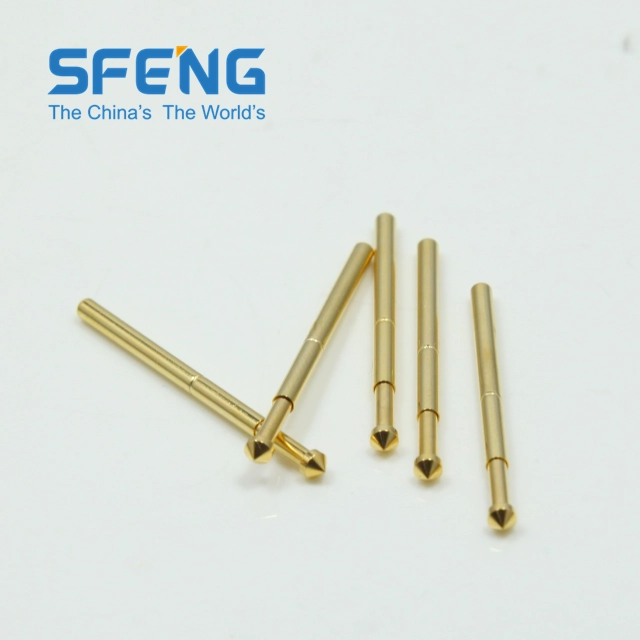

Full gold plated spring loaded connector pin for IC TestingFull gold plated spring loaded connector pin for IC Testing

Full gold plated spring loaded connector pin for IC Testing

  • Brand: SFENG
  • Item number: 125mil spring loaded test probe
  • Series: SF-PA125
  • Plunger: Be Cu, gold/Nickel plated
  • Body: Brass, gold plated
  • Spring: stainless steel
  • Spring force: 2N (7.2 oz)
  • MOQ: 100pcs

Product Specification

Item number 125mil spring loaded test probe
Plunger Be Cu, gold/Nickel plated
Body Brass, gold plated
stainless steel
Spring force
2N (7.2oz)
MOQ 100 pcs

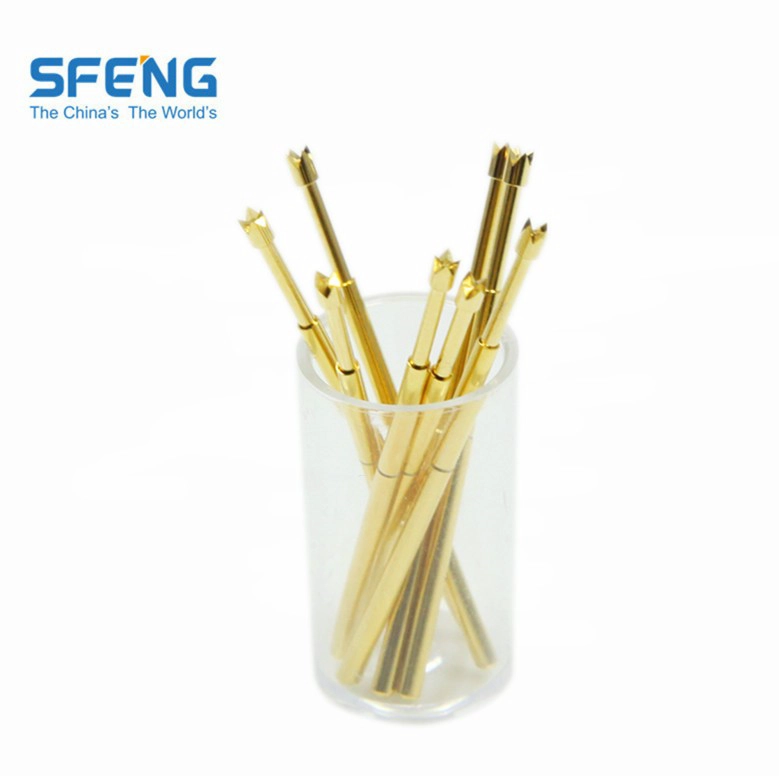

Product pictures

Our Service

1. We can reply your inquiry within 24 working hours.

2. Customized design is available and OEM are welcomed.

3. We can deliver the probe pins to our clients all over the world with speed and precision.

4. We can provide the lowest price with high quality product to our client      .

Main Products

Spring loaded pin (single) for PCB, ICT, FCT testing etc;

Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery, Semiconductor &  Interconnect applications;

Double ended probe for BGA and Semiconductor testing;

Universal pin without spring, coating pin, LM pin with QZ and VZ series;

High current probe, Switch probe, Capacitance needle;

Terminal & receptacle /socket;

Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc


Production Flow

Quality Control

Package & delivery
