Production specifications

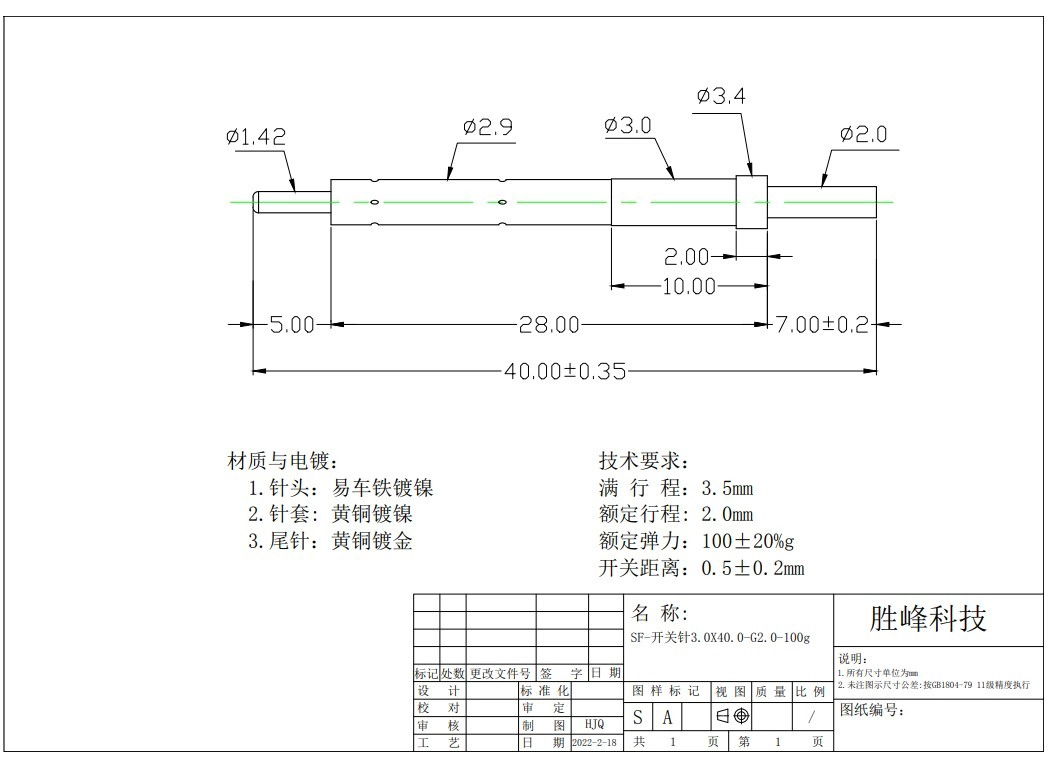

| Item number | SF6944 |
| Size |
dia3.4*40.0mm |
| Material |
Plunger:SK4, Ni plated Barrel:Brass, Ni plated Tail Pin:Brass, Gold plated |
| Full travel | 3.5mm |
| Spring force | 100±20%g |
| MOQ | 100PCS |
| Payment | T/T |
| Delivery time | 5-10days after receiving the payment |
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Full stroke: 5.2mm
Switching Path: 1.7mm
Spring force: 70gf @ load 1.7mm
Lifetime: 300,000 times
Application:wiring harness, testing jigs, fixtures to various automotive industries.
Full stroke: 5.0mm
Switching Path: 1.5mm
Spring force: 450gf @ load 5.0mm
Lifetime: 300,000 times
Application:wiring harness, testing jigs, fixtures to various automotive industries.
Item: Switching probe SF-KP1.65*44.6-G1.8 (NO)
Materials: Beryllium Copper
Spring: Music wire
Finish: gold plated
Item: Switching probe SF-KP1.65*44.6-J (round tip)
Materials: Beryllium Copper
Spring: Music wire
Finish: gold plated
Item: Switching probe SF-KP1.65*44.6-A1.5
Materials: Beryllium Copper
Spring: Music wire
Finish: gold plated
Switch Probe Specifications:
Current Rating:3A
Contact Resistance:<50mΩ
Full Stroke:5.2mm
Switching Path:1.7mm
Spring Force:100~150fg@ load 5.0mm
Spring Force:200~250gf@ load 3.3mm
The total set elastic:350~400gf@ load 5.0m
Material：
Plunger: Becu
Barrel: Brass
Spring:304 Stainless Steel
Insulation Sleeve: Peek
Solder Connection:Becu
Receptacle:Brass
Plating:Au on Ni plated
Plunger: Becu
Barrel: Brass
Spring:304 Stainless Steel
Material and plating:
1.Tip:POM
2.Plunger:brass,gold plated
3.Barrel:brass,gold plated
4.Insulation sleeve:PEEK
5.End pin:Ph,gold plate
Specifications:
1.Switch distance:1.5mm
2.Spring force:100g@1.5mm
Switch Probe Specifications:
Current Rating:3A
Contact Resistance:<50mΩ
Full Stroke:7.0mm
Switching Path:2.4mm
Switch Trip Elastic:0.9N@load2.4mm
Spring Force:2.5N@load 2/3
Material：
Plunger: Becu
Barrel: Brass
Spring:Music Wire
Tip:POM
Insulation Sleeve: Peek
Solder Connection:Becu
Switch Probe Specifications:
Full Stroke:5.0mm
Current Stroke:3.5mm
Current Force:400±20%
Switching Distance:1.0±0.2mm
Material：
Plunger: Becu
Barrel: Brass
Spring:304 Stainless Steel
Materials(Plated):
1.Plunger:Becu
2.Barrel:Brass
3.Insulation Sleeve:Peek
4.Solder Connetion:Becu
5.Receptable:Brass
6.Spring:SUS304
Specifications:
Current Rating:3A
Contact Resistance:<50mΩ
Full Stroke:5.2mm
Switching Path:1.7mm
Spring Force:100~150fg@load5.0mm/200~250gf@load3.3mm
The Total Set Elastic:350~400gf@load5.0mm
Techanical Parameters:
Switch distance:1.0±0.2mm
Full stroke:5.0mm
Current Stroke:3.5mm
Current Force:400g±20%
Material:
Plunger:Becu, Gold plated
Barrel:Brass, Gold plated
Spring:304 Stainless Steel
Brand：SFENG
Model：SF-开关针1.65*46.6-J1.0
Size：L.46.6mm
Material：Ph
Finish：Au on Ni Plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-开关针1.65*46.6-J1.0
Size：L.46.6mm
Material：Ph
Finish：Au on Ni Plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-新开关针（改良）
Size：L.49.0mm
Material：Brass
Finish：Au plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-开关针新PEEK 2.96X49带塑料头
Size：L.54.0mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton
Brand：SFENG
Model：SF-开关针新PEEK 2.96X49带塑料头
Size：L.54.0mm
Material：Brass
Finish：Au on Ni-plated
Packing：Plastic box and loaded into carton
