Product Specification
|
Brand |
SFENG |
|
Item number |
double head pin ø0.26*12.30 |
|
Plunger |
SK4 heat-treated |
|
Barrel |
Brass |
|
Spring |
SK4,music wire |
|
Spring Force |
20g |
|
Current Ration |
1A |
|
Current Resistance |
less than 50mohm |
|
Mounting hole size |
2.75mm |
|
MOQ |
100 pcs |
|
Lead time |
7 working days after receiving the payment |

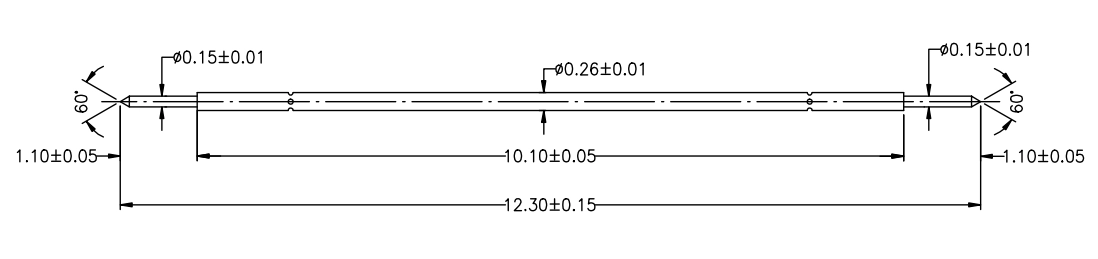

Product Picture
Our Service
1.Reply your inquiry withn 24 working hours
2.Customized design is available,OEM are welcomed
3.Delivery the probe pins to our clients all over the world with speed and precision
4.provide the lowest price with high quality to our client
Main Products
---Spring loaded pin(single) for PCB,ICT,FCT testing,etc;
---Pogo pin(connector) to establish a(usuallytemporary)connection between
two printed circuit boards for charing, locating, Battery, Semiconductor &
interconnectApplications;
---Double ended probef orBGA&semiconudtion testing;
---Universal pin without spring,coatingpin,LM pin withQZ&VZseries;
---High current probe,Switch probe,Capacitance needle...
---Terminal&receptacle/socket;
---Other related electronic compents,30#OKwire,Jig locks,POM,Ironhinge,etc

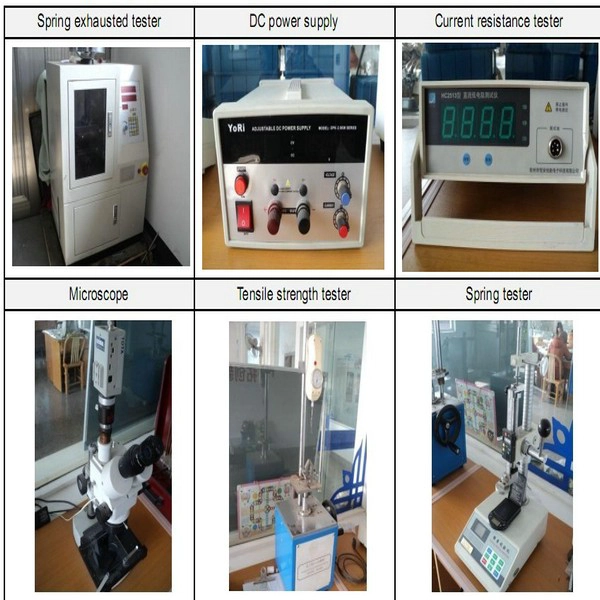

Quality Control
Packing Picture

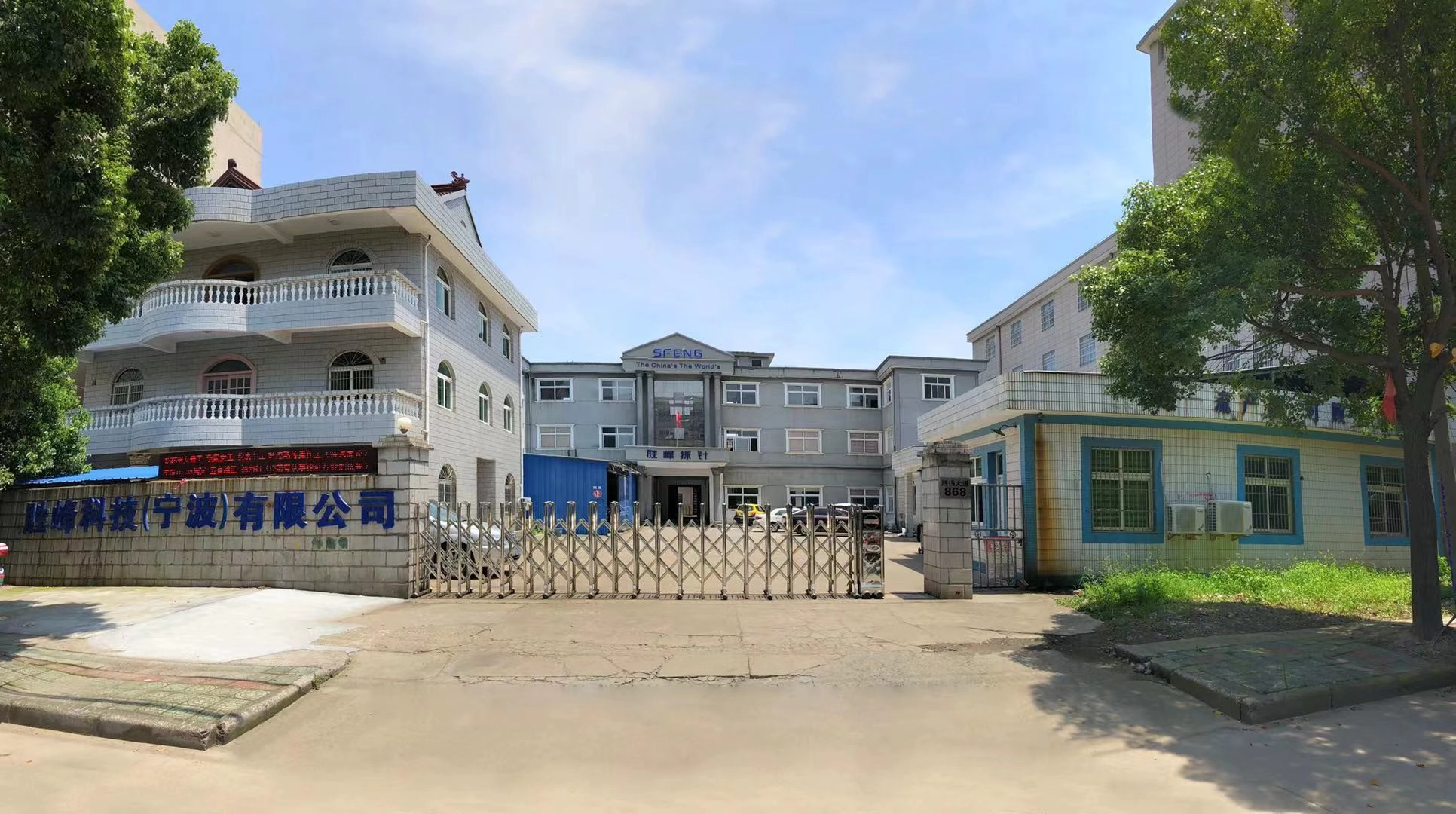

Factory Image
Tel:008613862105944
Contact Person:Eve
PDF Show:PDF
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Material:
Plunger : Becu / Au on Ni Plated
Plunger : SK4 / Au on Ni Plated
Barrel : PhBz / Au on Ni Plated
Spring : SWP
Mechanical:
Full Travel : 6.8 mm
Electrical:
Contact Resistance : 100mohm
Material:
Plunger : Becu / Gold Plated
Plunger : Becu / Gold Plated
Barrel : PhBz / Gold Plated
Spring : Music wire / Gold Plated
Mechanical:
Full Travel : 1.10 mm
Electrical:
Contact Resistance : 100mohm
Cycle time: 100,000times
Item: Double head pin SF-0.86*18.5-BB
Material:
-Barrel: Ph, Au on Ni plated
-Plunger: Becu, Au on Ni plated
-Spring: SWP
Packaging: plastic box into cartons
Payment term: 100%TT in advance
Item: Double Head Pin SF-1.36*21.2-JJ
Material:
Barrel: Brass, Au on Ni plated
Plunger: Becu, Au on Ni plated
Spring: SUS
Size: ø1.36*21.2mm
Current Rating: 3A
Contact Resistance: 80mΩ
Full Stroke: 6.50mm
Rated Stroke: 4.30mm
Spring force: 70±10gf@ load 4.30mm
Packing: Plastic box and loaded into carton
Payment term: 100% TT in advance
Item: SF-1.36*20.8-JJ
Material:
-Barrel: Brass, Au on Ni plated
-Plunger: Becu, Au on Ni plated
-Spring: SUS
Packaging: plastic box into cartons
Payment term: 100%TT in advance
Item:SF-PP2.65*14.9
Material:
Barrel: Phosphor Bronze, Au on Ni plated
Plunger: Brass, Au on Ni plated
Spring: SUS304
Current Rating: 5A
Contact Resistance:40mΩ
Full Stroke: 1.7mm
Spring Force: 300g
Packing: Plastic box and loaded into carton
Item:SF-GB031D570D20-BB-A6
Material: Music Wire, Phosphor Copper, Becu
Finish: Gold-plated
Size: dia.0.31*5.7
Spring force:20g
Packing: Plastic box and loaded into carton
Brand:SFENG
Item number:SF6592
Size: dia0.31*L3.30mm
Plunger:Becu
Barrel:Phosphor Copper
Spring:SWP
Finish:Gold plated
Packing:Plastic bag and loaded into carton box
Brand:SFENG
Item number:SF6623
Size: dia0.38*L5.7mm
Plunger:Becu
Barrel:Phosphor Copper
Spring:Music wire
Finish:Gold plated
Packing:Plastic bag and loaded into carton box
Brand:SFENG
Item number:SF6826
Size: dia0.26*L12.30mm
Plunger:SK4F
Barrel:Phosphor Copper
Spring:SWP
Finish:Golden plated
Packing:Plastic bag and loaded into carton box
Item: SF-031B330B25
Material:
-Barrel: PhBz
-Plunger: Becu
-Plating: Gold plated or nickel plated
-Spring: SWP
-Rated current: 0.5A,
Packaging: plastic box into cartons
Item:SF-GB038B570U35-BB
Material:
Plunger: Becu
Sping: Music Wire
Barrel: Phosphor Copper
Finish: Gold-plated
Size: ø0.21*5.7mm
Packing: Plastic box and loaded into carton
Item:SF-GB051B570B23-BB
Material:Be, SWP
Full travel:1.10mm
Spring Force:23±5g
Contact resistance:150mΩ
Material:
Plunger : SK4F / Gold Plated
Plunger : SK4F / Gold Plated
Barrel : PhBz / Gold Plated
Spring : SWP / Gold Plated
Mechanical:
Full Travel : 2.20 mm
Electrical:
Contact Resistance : 300mohm
Cycle time: 100,000times
Material:
Plunger : BeCu / Au Plated
Plunger : BeCu / Au Plated
Barrel : PhBz / Au Plated
Spring : SWP / Au Plated
Mechanical:
Full Travel :0.8 mm
Spring Force :30g ± 20% at 0.65 mm
Electrical:
Current Rating : 1.0A
Material:
Plunger : BeCu / Au Plated
Plunger : BeCu / Au Plated
Barrel : PhBz / Au Plated
Spring : SWP / Au Plated
Mechanical:
Full Travel : 1.1 mm
Spring Force :20g ± 20% at 0.70 mm
Electrical:
Current Rating : 1.0A
Contact Resistance : < 50 mΩ (AVG)
