small size and high precision BGA test probe

small size and high precision BGA test probe

  • high precision BGA test probe
  • Spring force;20g
  • Current rating:1.0A
  • Probe resistance:less than 50mohm
  • Plunger:SK4
  • Barrel:brass
  • Spring:music wire or stainless wire
  • Product Details

small size and high precision BGA test probe

Company information

Suzhou  Shengteng Electronic Co.,Ltd  is specializing in the spring probe&the pogo pin with high quality,low price and fast delivery.We have our own brand,we always devote ourselves to achieving international standards,our company have passed the ISO9001-2008 quality managements certification and our products are qualified of RoHs.



Main products

---Spring loaded pin(single) for PCB,ICT,FCT testing,etc;
---Pogo pin(connector) to establish a(usually temporary)connection between
two printed circuit boards for charging, locating, Battery, Semiconductor &
interconnect Applications;
---Double ended probe for BGA&semiconduction testing;
---Universal pin without spring,coating pin,LM pin with QZ&VZ series;
---High current probe,Switch probe,Capacitance needle...
---Terminal&receptacle/socket;
---Other related electronic components,30#OK wire,Jig locks,POM,etc

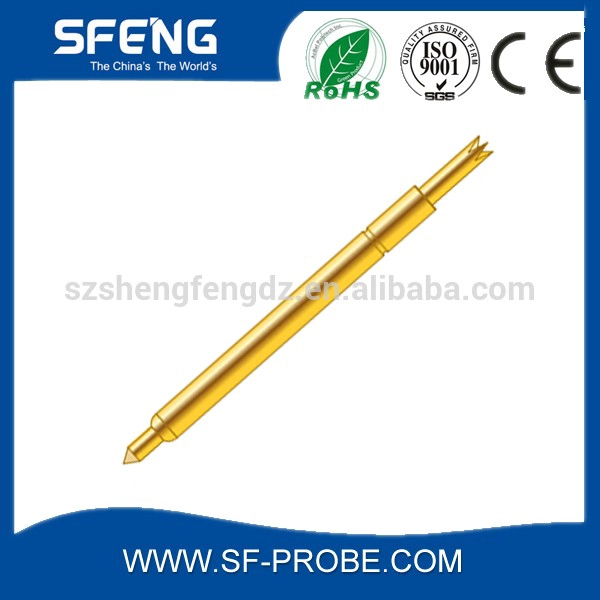

BGA test probe product photo



BGA packing product photo

BGA test probe shipping
