China low price 030 series round head double-ended pogo pin BGA spring loaded pinChina low price 030 series round head double-ended pogo pin BGA spring loaded pinChina low price 030 series round head double-ended pogo pin BGA spring loaded pinChina low price 030 series round head double-ended pogo pin BGA spring loaded pinChina low price 030 series round head double-ended pogo pin BGA spring loaded pin

China low price 030 series round head double-ended pogo pin BGA spring loaded pin

  • Material:
  • Plunger : BeCu / Au Plated
  • Plunger : BeCu / Au Plated
  • Barrel : PhBz / Au Plated
  • Spring : SWP / Au Plated
  • Mechanical:
  • Full Travel : 0.75 mm
  • Spring Force :30g ± 20% at 0.50 mm
  • Electrical:
  • Current Rating : 1.0A
  • Contact Resistance : < 50 mΩ (AVG)
  • Bandwidth : >25GHz@ -3dB

China low price 030 series round head double-ended pogo pin BGA spring loaded pin

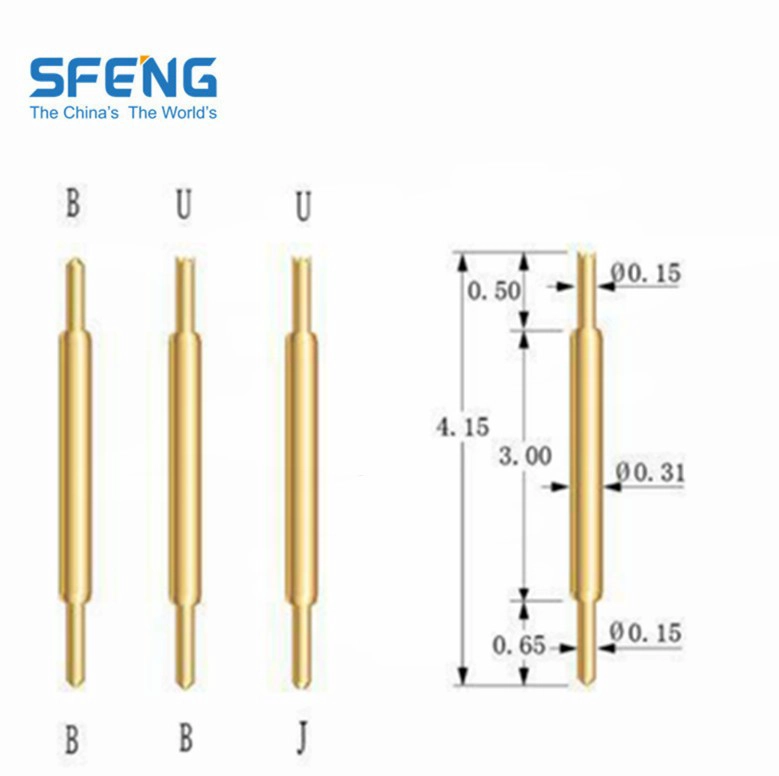

Specification:

Brand  SFENG PROBE
 Item Number  Double head pogo pin SF031U330U30
 Plunger  Becu
 Barrel  PhBz
 Spring  SWP
 Plating  gold plated over nickel
 Spring force  30g or customized
 Contact Resistance  <50m ohm
 Current ration  1A
 MOQ  100PCS if we have stock
 Lead time  2-15days after receiving the payment

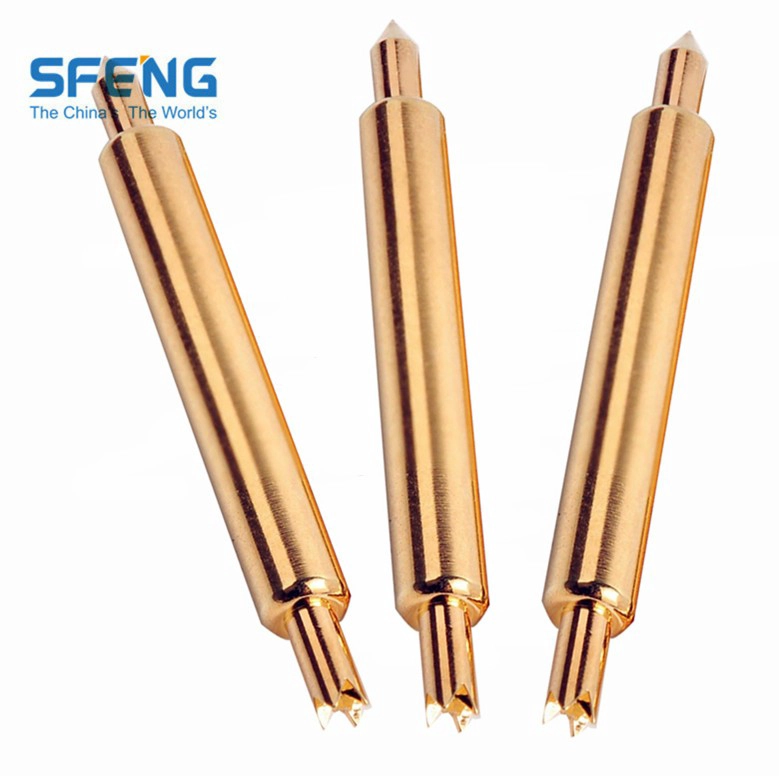

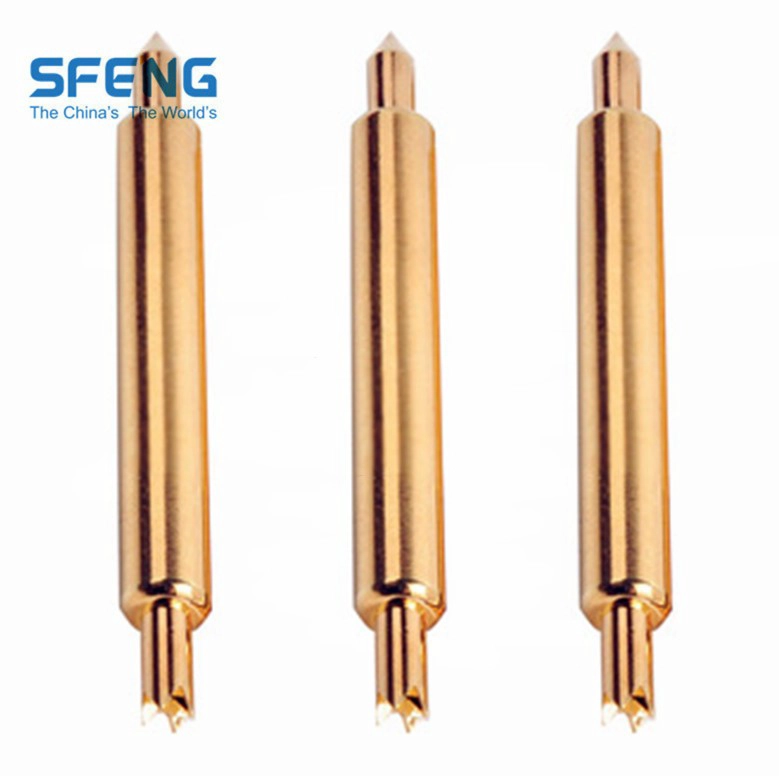

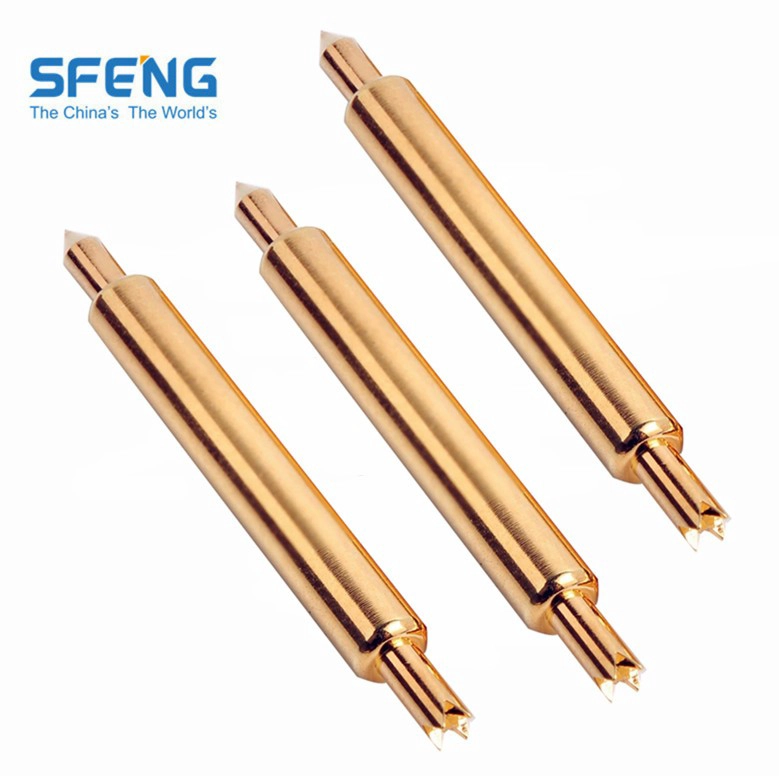

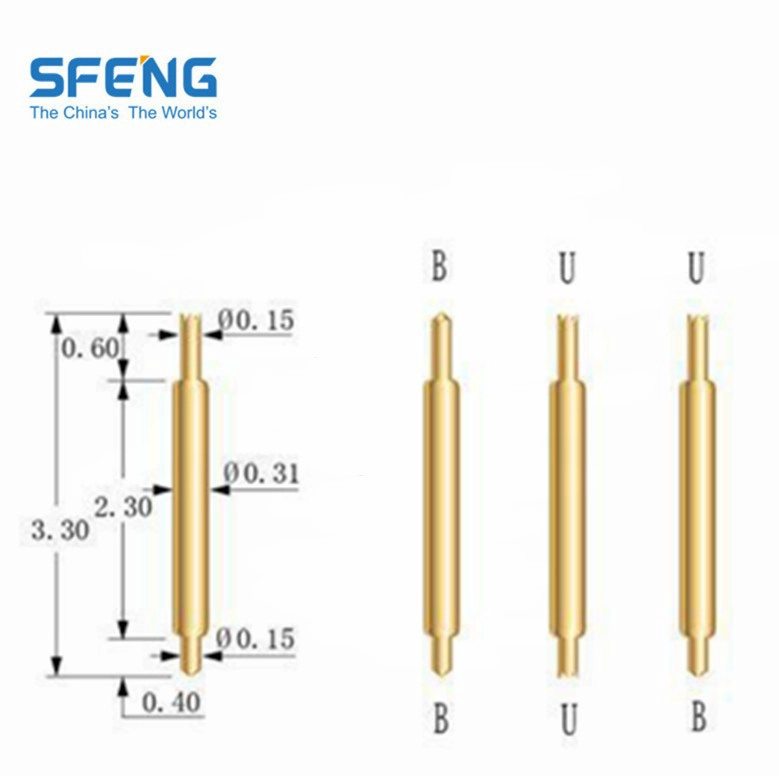

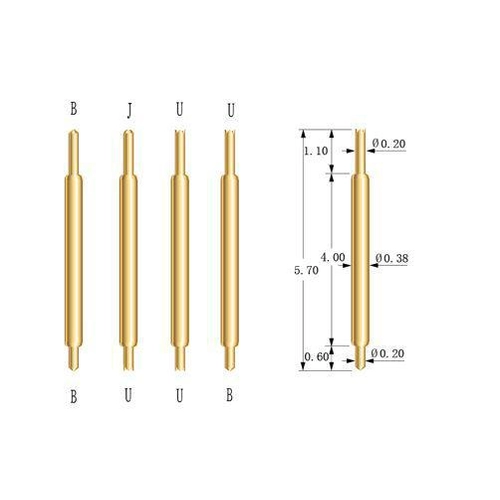

Picture Show:
double head pogo pin

double head pogo pin
Our Advantages:


Our Main Product:

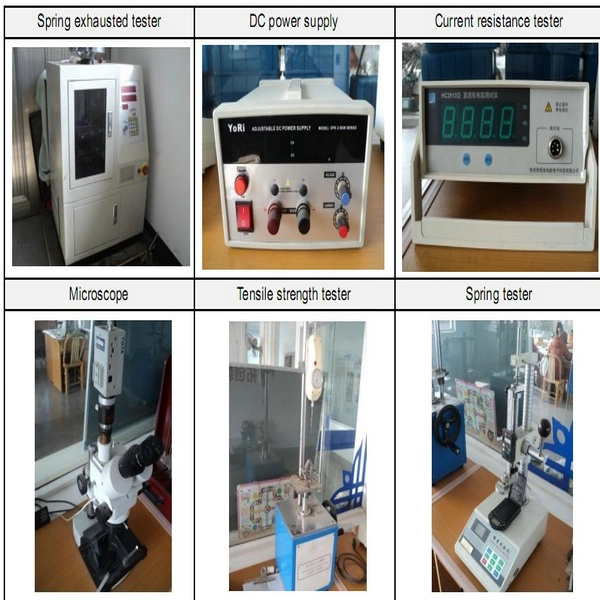

Testing Equipment:

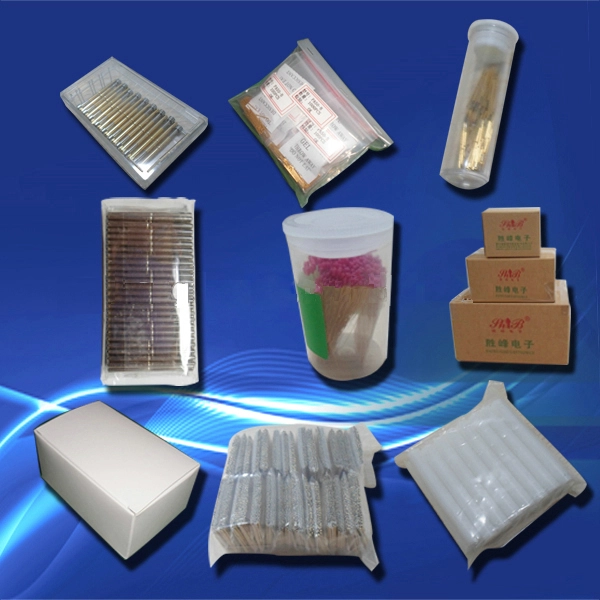

Package:
