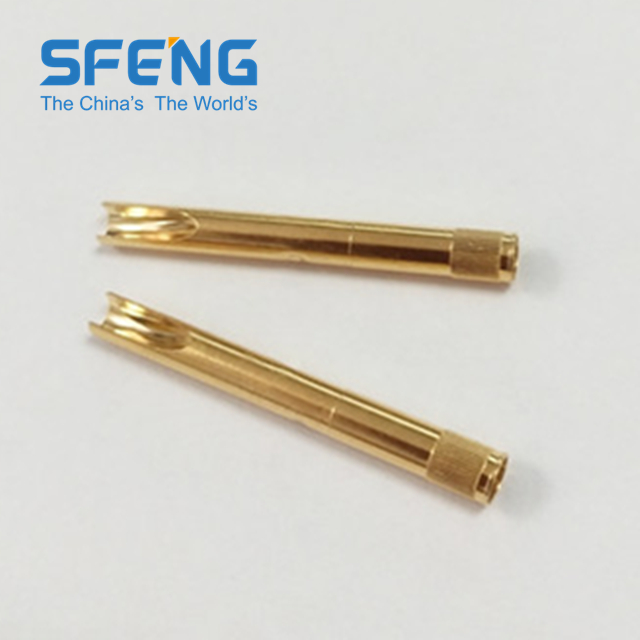

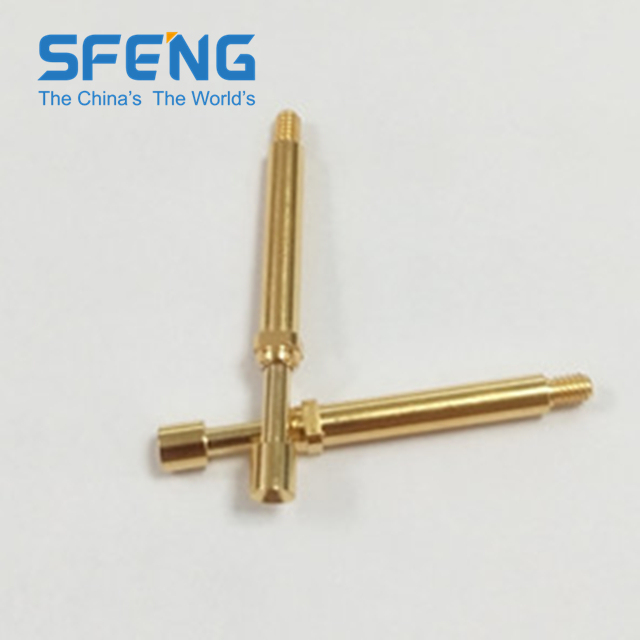

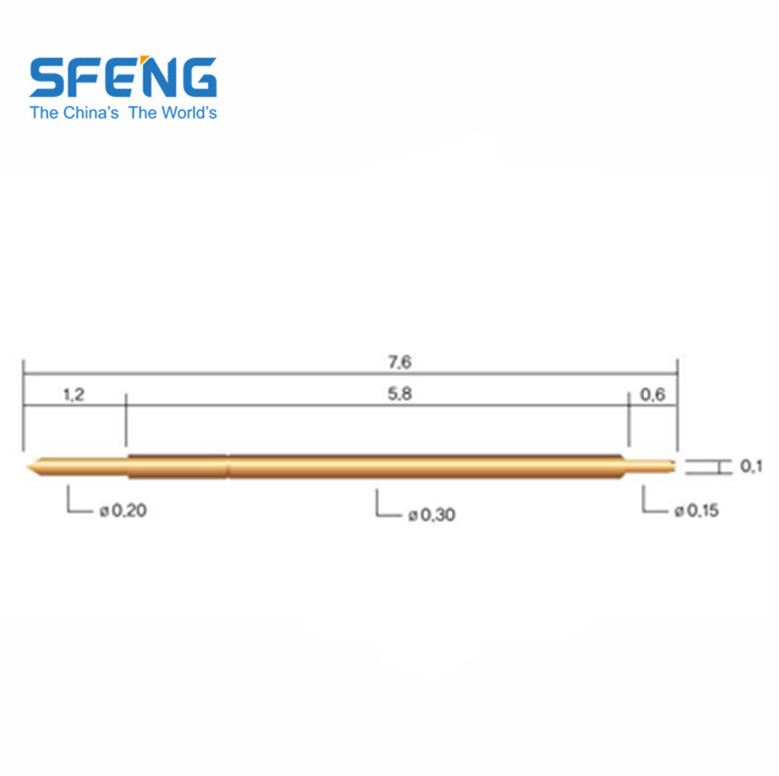

small diameter probe SF-760 for BGA socket test probe

small diameter probe SF-760 for BGA socket test probe

  • semiconductor test pin
  • size: standard size BGA socket test probe
  • plunger material:brass gold plated
  • barrel material:brass gold plated
  • spring:music wire
  • sample:we can provide samples
  • Product Details

small diameter probe SF-760 for BGA socket test probe

Pogo pin connector FAQ
1)  Can we make a different size or different materail, say like customized item?
surely, one of our main feature is OEM
2) Are those spring probe or pogo pins produced by your company?
Surely, our production department are with over 30 sets of CNC equipments.
3) Do you have a registed brand?
Yes, SFENG PROBE
4) Do you have QC process?
yes, we have a testing department.
5) How is it going with Suzhou shengteng & shengfeng probe?
Suzhou shengteng Electronic Company is our registed company name;
shengfeng probe is registed brand name.
6) can I have a free sample before placing order?
If the standard items, with in stock, No problem, we can send 3 ~ 5 pcs for your testing approval;
if a special request of item, supposed a new mould, we will charge a certain deposit and can be refundable.




Suzhou Shengyifurui Electronic Technology Co., Ltd

Tel:008613913541534

Contact Person:Ellie

PDF Show:PDF

Send Us An Inquiry
We will contact you as soon as possible!
Phone
Phone
WeChat
Skype
Whatsapp
captcha
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

RELATED PRODUCTS

Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .

Zhejiang Factory Double-Head Pin Pogo Pin Connector

Material:
Plunger : Becu / Au on Ni Plated
Plunger : SK4 / Au on Ni Plated
Barrel : PhBz / Au on Ni Plated
Spring : SWP
Mechanical:
Full Travel : 6.8 mm
Electrical:
Contact Resistance : 100mohm

Zhejiang Factory Double-Head Pin BGA test probe

Material:
Plunger : Becu / Gold Plated
Plunger : Becu / Gold Plated
Barrel : PhBz / Gold Plated
Spring : Music wire / Gold Plated
Mechanical:
Full Travel : 1.10 mm
Electrical:
Contact Resistance : 100mohm
Cycle time: 100,000times

High Quality BGA test probe Double head pogo pin

Item:  Double head pin SF-0.86*18.5-BB
Material:
-Barrel: Ph, Au on Ni plated
-Plunger: Becu, Au on Ni plated
-Spring: SWP
Packaging: plastic box into cartons
Payment term: 100%TT in advance

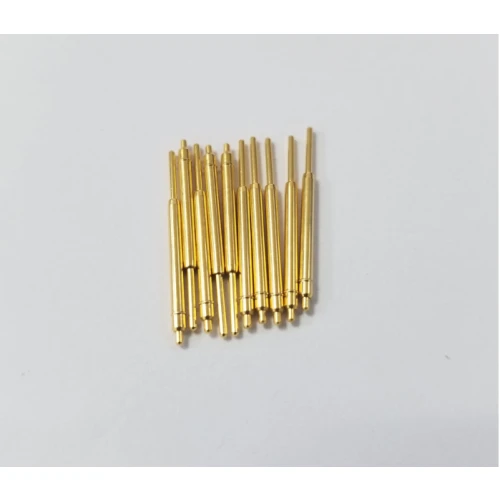

SFENG 3A Pogo Pin Double Head Pin

Item: Double Head Pin  SF-1.36*21.2-JJ
Material:
Barrel: Brass, Au on Ni plated
Plunger: Becu, Au on Ni plated
Spring: SUS

Size: ø1.36*21.2mm
Current Rating: 3A
Contact Resistance: 80mΩ
Full Stroke: 6.50mm
Rated Stroke: 4.30mm
Spring force: 70±10gf@ load 4.30mm

Packing: Plastic box and loaded into carton

Payment term:  100% TT in advance

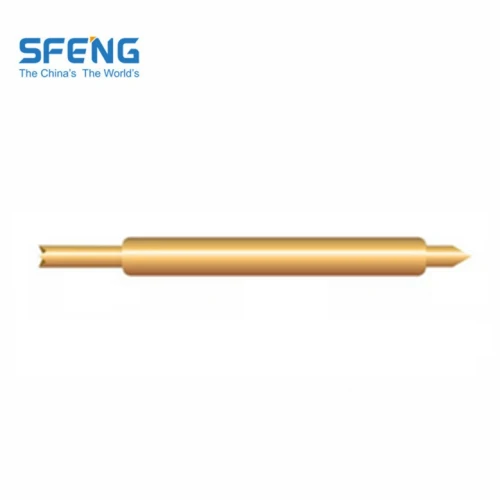

Gold plated BGA test probe Double head pogo pin

Item:  SF-1.36*20.8-JJ
Material:
-Barrel: Brass, Au on Ni plated
-Plunger: Becu, Au on Ni plated
-Spring: SUS
Packaging: plastic box into cartons
Payment term: 100%TT in advance

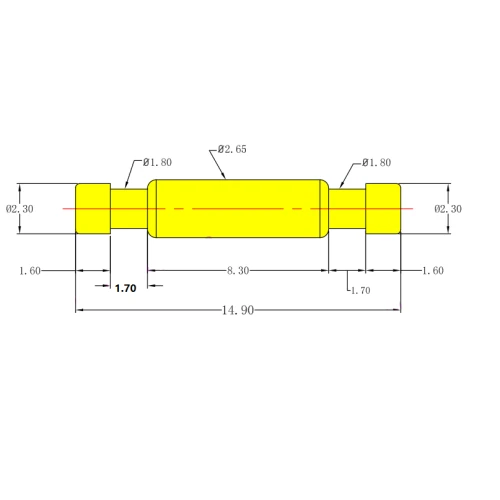

Hot Sell BGA Test Probe Pogo Pin Double Head Pin

Item:SF-PP2.65*14.9
Material:
Barrel: Phosphor Bronze, Au on Ni plated
Plunger: Brass, Au on Ni plated
Spring: SUS304
Current Rating: 5A
Contact Resistance:40mΩ
Full Stroke: 1.7mm
Spring Force: 300g
Packing: Plastic box and loaded into carton

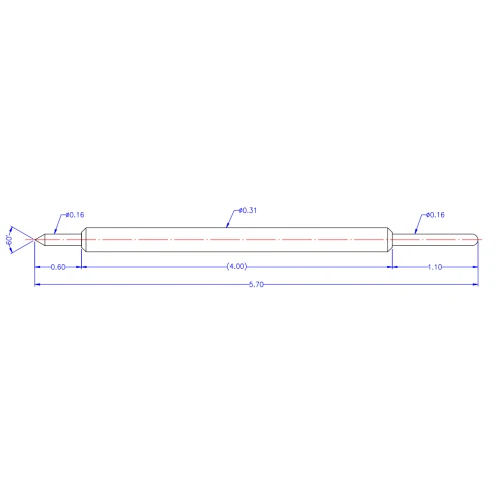

China Supplier Spring Probe Pogo Pin Connector SF-GB031D570D20-BB-A6

Item:SF-GB031D570D20-BB-A6
Material: Music Wire, Phosphor Copper, Becu
Finish: Gold-plated
Size: dia.0.31*5.7
Spring force:20g
Packing: Plastic box and loaded into carton

Gold plated small double-headed pogo connector pin with high precision

Brand:SFENG
Item number:SF6592
Size: dia0.31*L3.30mm
Plunger:Becu
Barrel:Phosphor Copper
Spring:SWP
Finish:Gold plated
Packing:Plastic bag and loaded into carton box

Low price Becu double head pogo pin SF6623

Brand:SFENG
Item number:SF6623
Size: dia0.38*L5.7mm
Plunger:Becu
Barrel:Phosphor Copper
Spring:Music wire
Finish:Gold plated
Packing:Plastic bag and loaded into carton box

Double head pogo pin point tip double head connector pin

Brand:SFENG
Item number:SF6826
Size: dia0.26*L12.30mm
Plunger:SK4F
Barrel:Phosphor Copper
Spring:SWP
Finish:Golden plated
Packing:Plastic bag and loaded into carton box

China Supplier Double ended Pogo Pin Spring Loaded Probe SFGB026B1230B15

Material:
Plunger A : SK4F / Gpld Plated
Plunger B: SK4F / Gold Plated
Barrel : Phosphor Copper / Gold Plated
Spring : SWP / Gold Plated
Mechanical:
Full Travel : 2.20 mm
Electrical:
Contact Resistance : < 300 mΩ (AVG)
Operating Temperature: -40~80℃

Hot Sell BGA Test Probe Double Head Pogo Pin Spring Loaded Connectors

Material:
Plunger A : BeCu / Gold Plated
Plunger B: BeCu / Gold Plated
Barrel : Phosphor Copper / Gold Plated
Spring : SWP / Gold Plated
Mechanical:
Recommended Travel: 0.50mm
Full Travel : 0.60 mm
Spring Force :25g ± 20%
Electrical:
Current Rating : 1A
Contact Resistance : < 150 mΩ (AVG)
Operating Temperature:-40~80℃

Zhejiang Factory Pogo Pin Double Head Probe Pin SF-GB026B1230B15

Item:double head pin
Material: SK4, Phosophor Copper,SWP
Finish: Ni-plated or Gold-plated
Size: ø0.26*12.30mm
Packing: Plastic box and loaded into carton

SFENG Test probe pin with double head pin

Item:  SF-031B330B25
Material:
-Barrel: PhBz
-Plunger: Becu
-Plating: Gold plated or nickel plated
-Spring: SWP
-Rated current: 0.5A,
Packaging: plastic box into cartons

SFENG 0.5mm Pitch Gold plated Double Head Pin BGA test probe

Item:SF-GB038B570U35-BB
Material:
Plunger: Becu
Sping: Music Wire
Barrel: Phosphor Copper
Finish: Gold-plated
Size: ø0.21*5.7mm
Packing: Plastic box and loaded into carton

SFENG BGA Double-head Test Probe Spring Contact Pin

Item:SF-GB051B570B23-BB
Material:Be, SWP
Full travel:1.10mm
Spring Force:23±5g
Contact resistance:150mΩ

Zhejiang Factory Spring Contact PinDouble-Head Pogo Pin Connector

Material:
Plunger : SK4F / Gold Plated
Plunger : SK4F / Gold Plated
Barrel : PhBz / Gold Plated
Spring : SWP / Gold Plated
Mechanical:
Full Travel : 2.20 mm
Electrical:
Contact Resistance : 300mohm
Cycle time: 100,000times

BGA test probe diameter 0.35 length 7.7 with B and U tip

Item: SF-035B770U15
Material: Beryllium Copper
Finish:Gold plated

Gold plated BGA test probe diameter 0.56 length 5.4 with double B tips

Item: SF-double head pin 0.56*5.4
Material: Beryllium Copper
Finish:Gold plated

Double ended pin contact pogo pin for BGA Test

Material:
Plunger : BeCu / Au Plated
Plunger : BeCu / Au Plated
Barrel : PhBz / Au Plated
Spring : SWP / Au Plated
Mechanical:
Full Travel :0.8 mm
Spring Force :30g ± 20% at 0.65 mm
Electrical:
Current Rating : 1.0A
