Hot Sell BGA Test Probe Double Head Pogo Pin Spring Loaded Connectors

Hot Sell BGA Test Probe Double Head Pogo Pin Spring Loaded Connectors

  • Material:
  • Plunger A : BeCu / Gold Plated
  • Plunger B: BeCu / Gold Plated
  • Barrel : Phosphor Copper / Gold Plated
  • Spring : SWP / Gold Plated
  • Mechanical:
  • Recommended Travel: 0.50mm
  • Full Travel : 0.60 mm
  • Spring Force :25g ± 20%
  • Electrical:
  • Current Rating : 1A
  • Contact Resistance : < 150 mΩ (AVG)
  • Operating Temperature:-40~80℃
  • Product Details

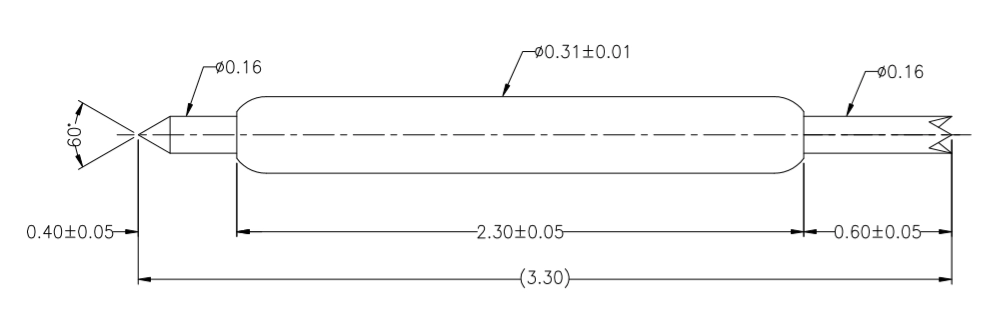

Product Picture

SF-031B330U25





Our Service

1. We can reply your inquiry within 24 working hours.

2. Customized design is available and OEM are welcomed.

3. We can deliver the probe pins to our clients all over the world with speed and precision.

4. We can provide the lowest price with high quality product to our client      .



Main Products

Spring loaded pin (single) for PCB, ICT, FCT testing etc;

Pogo pin (connector) to establish connection between two printed circuit boards for charging, locating, Battery, Semiconductor &  Interconnect applications;

Double ended probe for BGA and Semiconductor testing;

Universal pin without spring, coating pin, LM pin with QZ and VZ series;

High current probe, Switch probe, Capacitance needle;

Terminal & receptacle /socket;

Other related electronic components, 30# OK wire, Jig locks, POM, Iron hinge etc



Quality Control





Packing Picture



Packing picture2

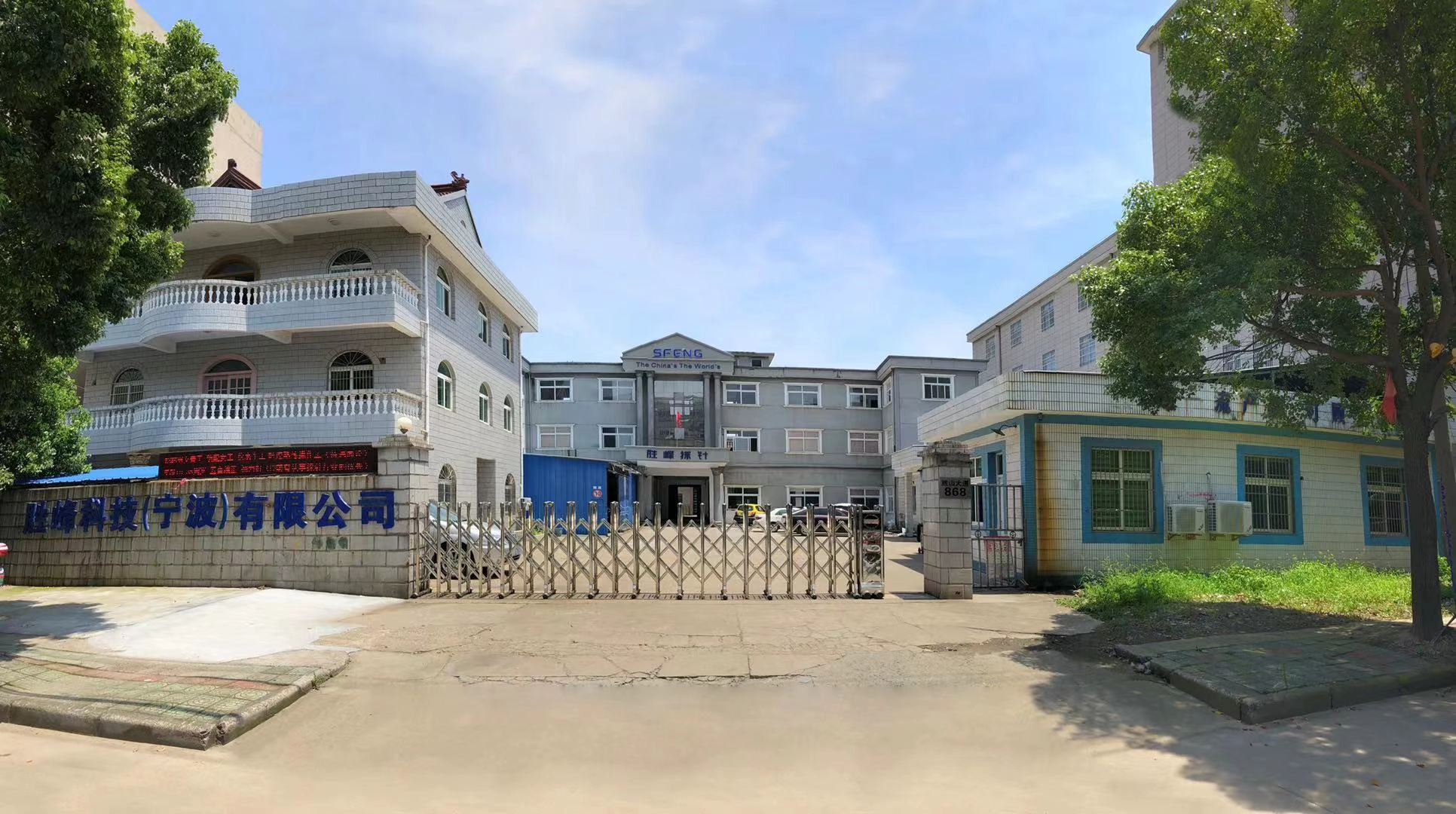

Factory Image
