Specifications
|
Brand |
SFENG |
|
Model |
SF-GB051B570B23-BB |
|
Plunger |
Becu |
|
Body |
Brass |
|
Spring |
SK4 |
|
Spring force |
23g |
|
Full travel |
1.10MM |
|
Plated |
Gold plated |
|
Current Resistance |
150mΩ |
|
Spacing |
/ |
|
Mounting dimensions |
/ |
|
MOQ |
1000 |
|
delivery time |
7-15 Days after confirming order |

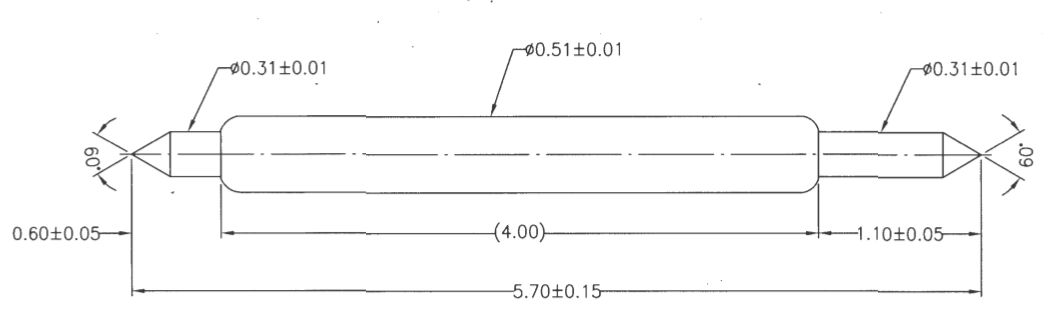

Double head pin drawing

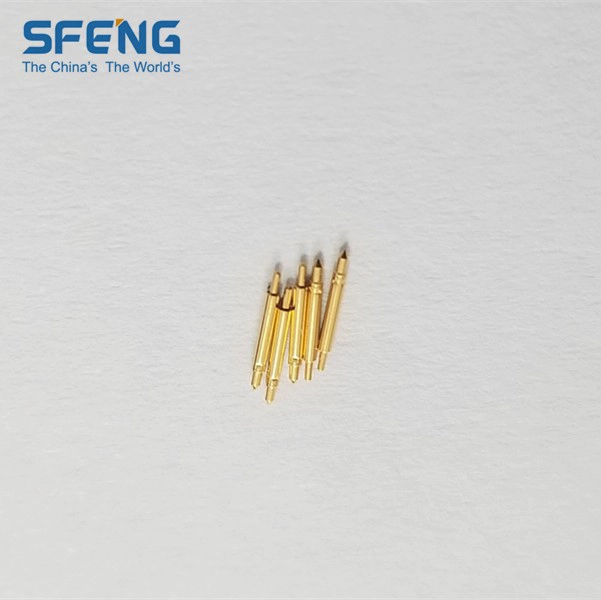

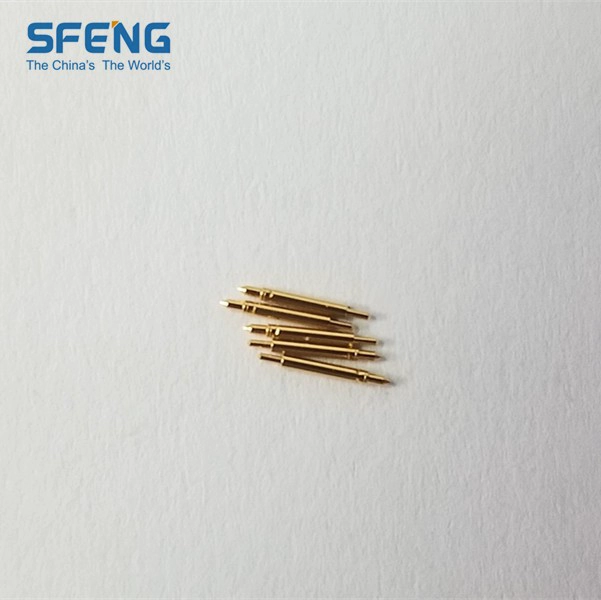

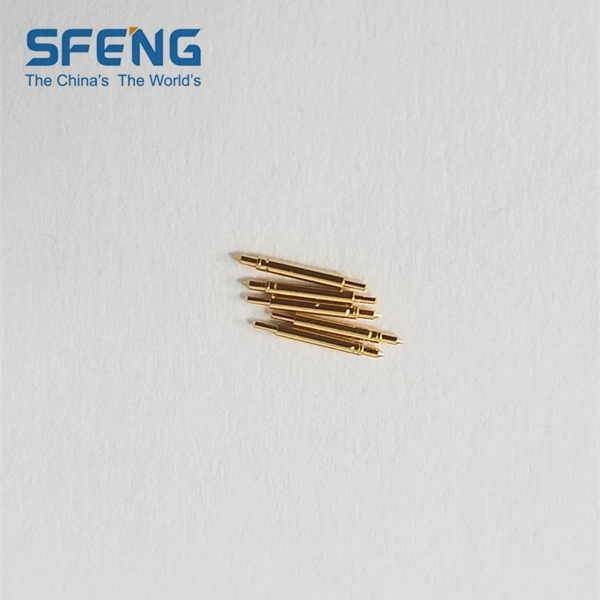

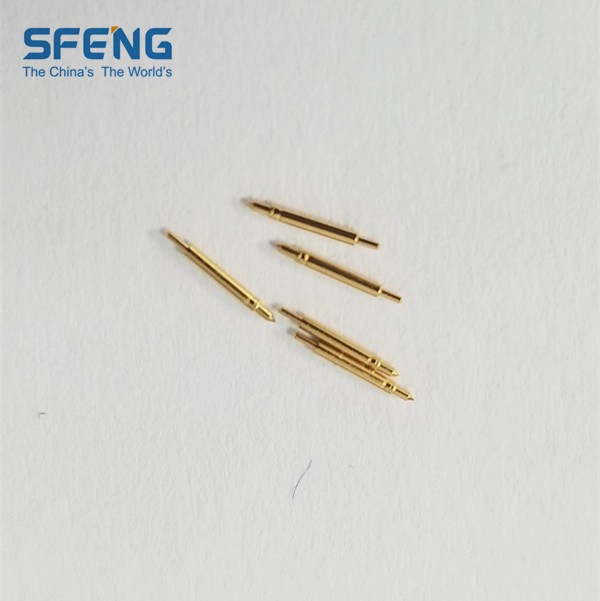

Double head pin Image
our service
1. Quick response.
2. Customized is accepted.
3. Short production time and fast delivery.
4. High quality and good price.
Main products
Spring-loaded pin (single) of PCB, ICT, FCT testing;
Spring pin (connector) to establish a connection between two printed circuit boards for charging, positioning, batteries, semiconductors and amplifiers; interconnect applications;
BGA and semiconductor test double-ended probe;
Universal pin no spring, paint needle, LM pin QZ and VZ series;
High current probe, the probe switches, capacitors needle;
Pier and amplifier; socket / socket;
Other related electronic components, 30 # OK line, jig lock, POM, iron hinges, etc.
Production process
Testing equipment
Packing & delivery
Tel:008613862105944
Contact Person:Eve
PDF Show:PDF
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
Material:
Plunger : Becu / Au on Ni Plated
Plunger : SK4 / Au on Ni Plated
Barrel : PhBz / Au on Ni Plated
Spring : SWP
Mechanical:
Full Travel : 6.8 mm
Electrical:
Contact Resistance : 100mohm
Material:
Plunger : Becu / Gold Plated
Plunger : Becu / Gold Plated
Barrel : PhBz / Gold Plated
Spring : Music wire / Gold Plated
Mechanical:
Full Travel : 1.10 mm
Electrical:
Contact Resistance : 100mohm
Cycle time: 100,000times
Item: Double head pin SF-0.86*18.5-BB
Material:
-Barrel: Ph, Au on Ni plated
-Plunger: Becu, Au on Ni plated
-Spring: SWP
Packaging: plastic box into cartons
Payment term: 100%TT in advance
Item: Double Head Pin SF-1.36*21.2-JJ
Material:
Barrel: Brass, Au on Ni plated
Plunger: Becu, Au on Ni plated
Spring: SUS
Size: ø1.36*21.2mm
Current Rating: 3A
Contact Resistance: 80mΩ
Full Stroke: 6.50mm
Rated Stroke: 4.30mm
Spring force: 70±10gf@ load 4.30mm
Packing: Plastic box and loaded into carton
Payment term: 100% TT in advance
Item: SF-1.36*20.8-JJ
Material:
-Barrel: Brass, Au on Ni plated
-Plunger: Becu, Au on Ni plated
-Spring: SUS
Packaging: plastic box into cartons
Payment term: 100%TT in advance
Item:SF-PP2.65*14.9
Material:
Barrel: Phosphor Bronze, Au on Ni plated
Plunger: Brass, Au on Ni plated
Spring: SUS304
Current Rating: 5A
Contact Resistance:40mΩ
Full Stroke: 1.7mm
Spring Force: 300g
Packing: Plastic box and loaded into carton
Item:SF-GB031D570D20-BB-A6
Material: Music Wire, Phosphor Copper, Becu
Finish: Gold-plated
Size: dia.0.31*5.7
Spring force:20g
Packing: Plastic box and loaded into carton
Brand:SFENG
Item number:SF6592
Size: dia0.31*L3.30mm
Plunger:Becu
Barrel:Phosphor Copper
Spring:SWP
Finish:Gold plated
Packing:Plastic bag and loaded into carton box
Brand:SFENG
Item number:SF6623
Size: dia0.38*L5.7mm
Plunger:Becu
Barrel:Phosphor Copper
Spring:Music wire
Finish:Gold plated
Packing:Plastic bag and loaded into carton box
Brand:SFENG
Item number:SF6826
Size: dia0.26*L12.30mm
Plunger:SK4F
Barrel:Phosphor Copper
Spring:SWP
Finish:Golden plated
Packing:Plastic bag and loaded into carton box
Item:double head pin
Material: SK4, Phosophor Copper,SWP
Finish: Ni-plated or Gold-plated
Size: ø0.26*12.30mm
Packing: Plastic box and loaded into carton
Item: SF-031B330B25
Material:
-Barrel: PhBz
-Plunger: Becu
-Plating: Gold plated or nickel plated
-Spring: SWP
-Rated current: 0.5A,
Packaging: plastic box into cartons
Item:SF-GB038B570U35-BB
Material:
Plunger: Becu
Sping: Music Wire
Barrel: Phosphor Copper
Finish: Gold-plated
Size: ø0.21*5.7mm
Packing: Plastic box and loaded into carton
Material:
Plunger : SK4F / Gold Plated
Plunger : SK4F / Gold Plated
Barrel : PhBz / Gold Plated
Spring : SWP / Gold Plated
Mechanical:
Full Travel : 2.20 mm
Electrical:
Contact Resistance : 300mohm
Cycle time: 100,000times
Material:
Plunger : BeCu / Au Plated
Plunger : BeCu / Au Plated
Barrel : PhBz / Au Plated
Spring : SWP / Au Plated
Mechanical:
Full Travel :0.8 mm
Spring Force :30g ± 20% at 0.65 mm
Electrical:
Current Rating : 1.0A
Material:
Plunger : BeCu / Au Plated
Plunger : BeCu / Au Plated
Barrel : PhBz / Au Plated
Spring : SWP / Au Plated
Mechanical:
Full Travel : 1.1 mm
Spring Force :20g ± 20% at 0.70 mm
Electrical:
Current Rating : 1.0A
Contact Resistance : < 50 mΩ (AVG)
